Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2016, 07:59 AM

  • 18 0123_18 0122 _05102016_011245.mp4

Date
10/05/2016
W/O
597011
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00698
PipeID
P13944
Time
12:59 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3730
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_597011_TV18083_OCT2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0122
Downstream MH
18 0123
Dir. of Survey
Upstream
Length Surveyed
336.5 ft.
Total Length
336.5 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
198
O&M Index
2
O&M Quick
2L00
O&M Rating
134
Overall Index
3
Overall Quick
—
Overall Rating
332
Pipe schematic from manhole 18 0122 to 18 0123
MH: 18 0122MH: 18 0123upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 01230 ft. MGO - General Observation - CONNECTION AT MH 12 ACTIVE1.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish3.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish57.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"62.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"108.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"114.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"157.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"163.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"209 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"214.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"256.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"257.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 4"262.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"334.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start334.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start336.5 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE336.5 ft. MWL - Water Level, 5 %of cross sectional area336.5 ft. MWM - Water Mark, 10 %of cross sectional area336.5 ft. AMH - Downstream Manhole, Survey Begins - 18 0122

Observation photos (2)

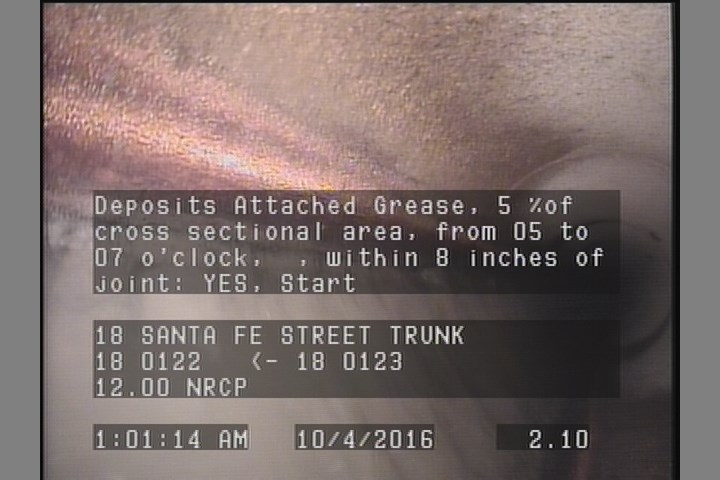

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

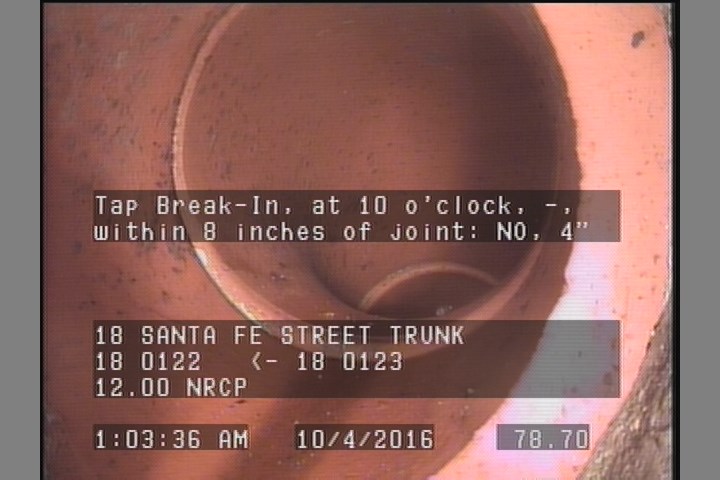

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 4"

    78.7 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 4"

All inspections of P13944Work order 597011

Observations (21)

DistanceCodeObservation
127.5TFA—
73.8TFA—
273.6TFC—
0MGOCONNECTION AT MH 9 ACTIVE
78.7TB—
79.7TFC—
173.2TFC—
221.6TFA—
2.1DAGS—
0MWL—
227.7TFC—
333SAV—
0MWM—
335.1DAGS—
179.1TF—
0AMH18 0122
122TF—
336.5AMH18 0123
2SAV—
336.5MGOCONNECTION AT MH 12 ACTIVE
279.1TFC—

Properties (6)

additional_info
SC303717
custom_field_two
3
customer
LACSD
datetime
2016-10-05T00:59:00-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
