Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 4, 2016, 10:05 AM

  • 18 0092_18 0091 _04102016_031721.mp4

Date
10/04/2016
W/O
597011
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00698
PipeID
P13911
Time
3:05 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3729
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_597011_TV18083_OCT2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0092
Downstream MH
18 0091
Dir. of Survey
Downstream
Length Surveyed
330.3 ft.
Total Length
330.3 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 18 0092 to 18 0091
MH: 18 0092MH: 18 0091downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 00920 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start91.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"98.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"213.9 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES227.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"233.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"327 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish327.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish330.3 ft. AMH - Downstream Manhole, Survey Ends - 18 0091

Observation photos (2)

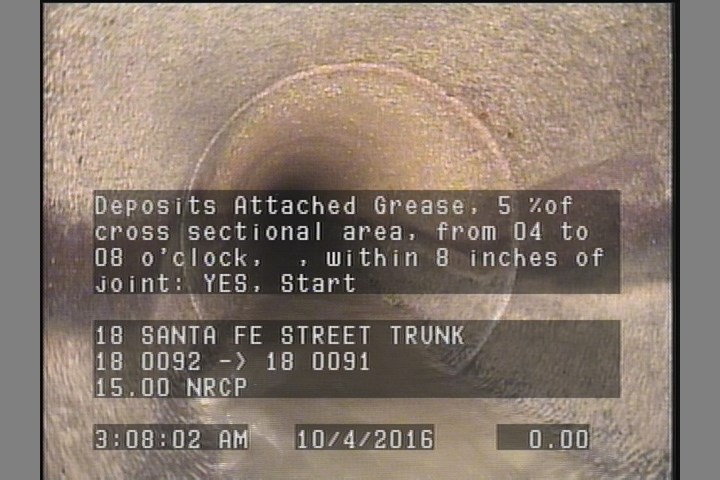

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

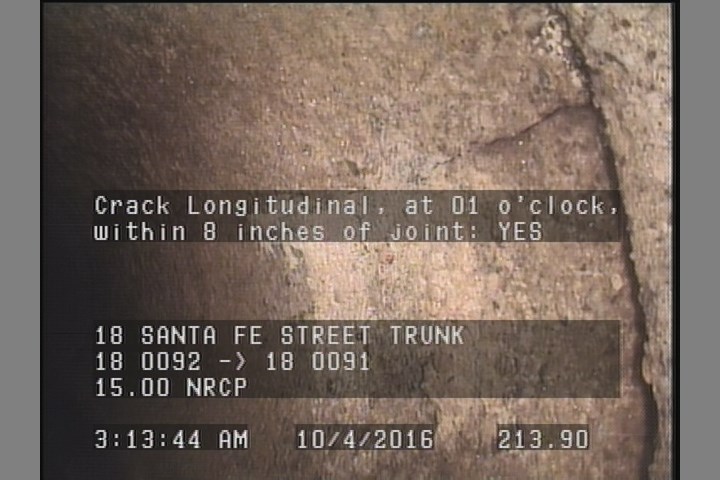

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    213.9 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

All inspections of P13911Work order 597011

Observations (13)

DistanceCodeObservation
91.9TFC—
0AMH18 0092
0MWL—
2SAV—
98.2TFC—
0MWM—
213.9CL—
327SAV—
330.3AMH18 0091
227.6TFC—
327.6DAGS—
2DAGS—
233.4TFC—

Properties (6)

additional_info
SC303716
custom_field_two
3
customer
LACSD
datetime
2016-10-04T03:05:00-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
