Wastewater/Activity/PacpInspection/1.0Oct 10, 2016, 11:12 AM
18 1108_18 0093 _10102016_043511.mp4
- Date
- 10/10/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13913
- Time
- 4:12 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3733
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 1108
- Downstream MH
- 18 0093
- Dir. of Survey
- Downstream
- Length Surveyed
- 335.1 ft.
- Total Length
- 335.1 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 198
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 330
Observation photos (1)

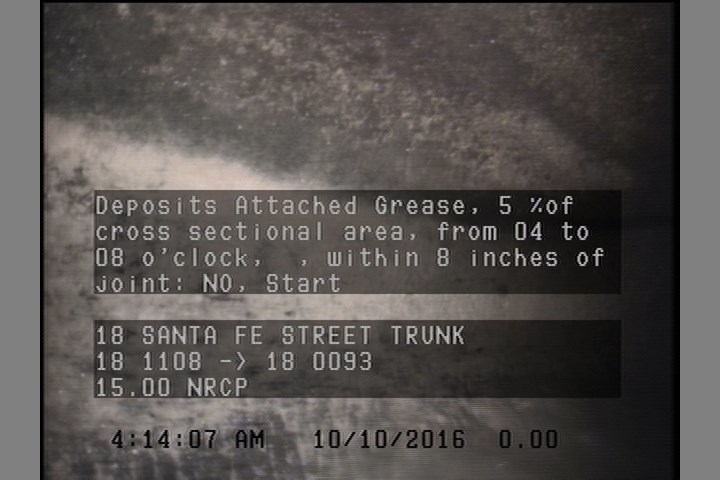

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 248.7 | TFC | — |
| 0 | MWL | — |
| 2 | SAV | — |
| 0 | MWM | — |
| 335.1 | AMH | 18 0093 |
| 332 | SAV | — |
| 46.7 | TF | — |
| 0 | AMH | 18 1108 |
| 335.1 | MGO | CONNECTION AT MH 6 O'CLOCK |
| 332.8 | DAGS | — |
Properties (6)
- additional_info
- SC303720
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-10T04:12:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
