Wastewater/Activity/PacpInspection/1.0Oct 7, 2016, 08:09 AM
18 0063_18 0040 _07102016_012052.mp4
- Date
- 10/07/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13877
- Time
- 1:09 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3732
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0063
- Downstream MH
- 18 0040
- Dir. of Survey
- Downstream
- Length Surveyed
- 421.5 ft.
- Total Length
- 421.6 ft.
- Structural Index
- 3
- Structural Quick
- 3P00
- Structural Rating
- 249
- O&M Index
- 2
- O&M Quick
- 2P11
- O&M Rating
- 167
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 416
Observation photos (2)

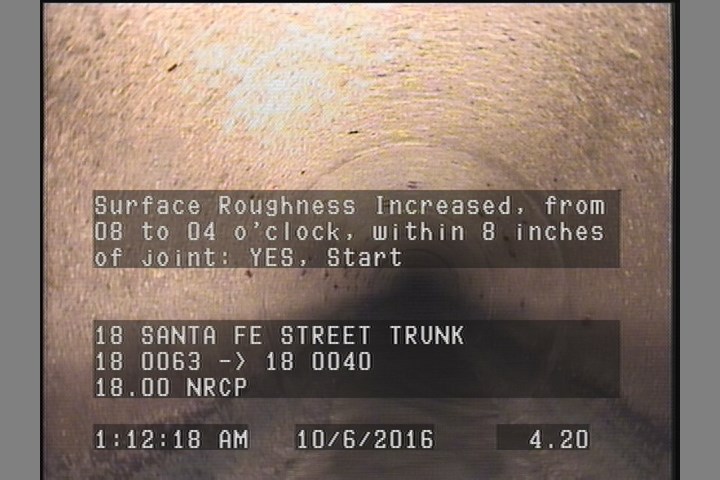

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

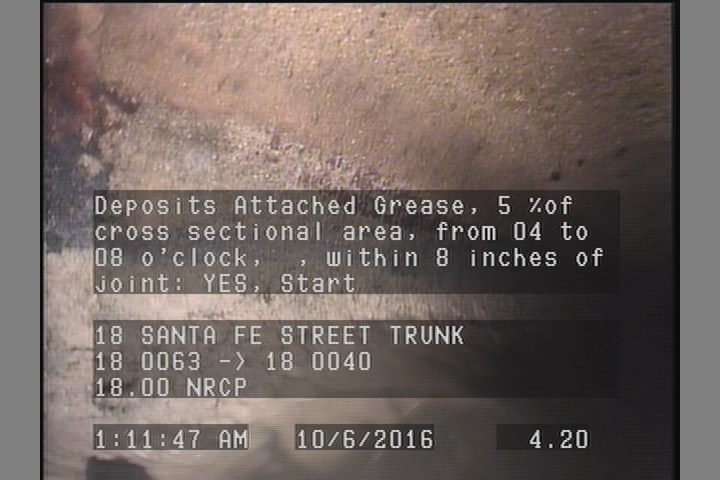

4.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 421.6 | VC | — |
| 0 | MWL | — |
| 4.2 | DAGS | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 3 ACTIVE |
| 0 | AMH | 18 0063 |
| 420.2 | DAGS | — |
| 421.6 | AMH | 18 0040 |
| 421.5 | MGO | CONNECTION AT MH 12 ACTIVE |
| 2 | SAV | — |
| 419 | SAV | — |
Properties (6)
- additional_info
- SC303719
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-07T01:09:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
