Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2016, 08:38 AM

  • 18 0111_18 0110 _05102016_015328.mp4

Date
10/05/2016
W/O
597011
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00698
PipeID
P13931
Time
1:38 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3730
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_597011_TV18083_OCT2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0110
Downstream MH
18 0111
Dir. of Survey
Upstream
Length Surveyed
227.7 ft.
Total Length
227.7 ft.
Structural Index
3
Structural Quick
3H25
Structural Rating
142
O&M Index
2
O&M Quick
2H00
O&M Rating
90
Overall Index
2
Overall Quick
—
Overall Rating
232
Pipe schematic from manhole 18 0110 to 18 0111
MH: 18 0110MH: 18 0111upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 01111.9 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE3.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish3.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish36.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"42.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"48.4 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES75.5 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES86.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"92.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"126.4 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES138 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"144.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"146.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES173.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES186.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"193.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"225.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start227.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start227.7 ft. MWL - Water Level, 10 %of cross sectional area227.7 ft. AMH - Downstream Manhole, Survey Begins - 18 0110227.7 ft. MWM - Water Mark, 20 %of cross sectional area227.7 ft. MGO - General Observation - CONNECTION AT MH 3 ACTIVE

Observation photos (6)

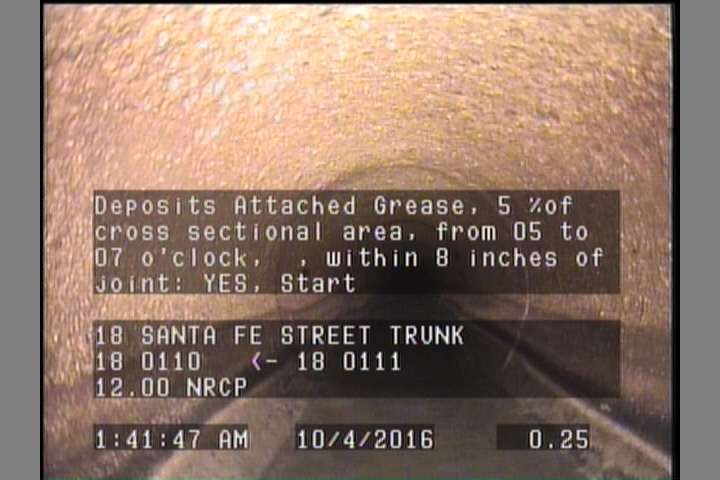

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    0.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

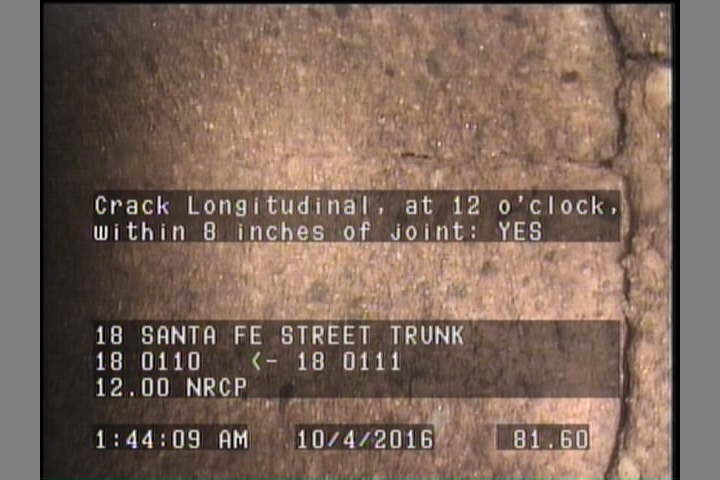

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    54.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    81.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

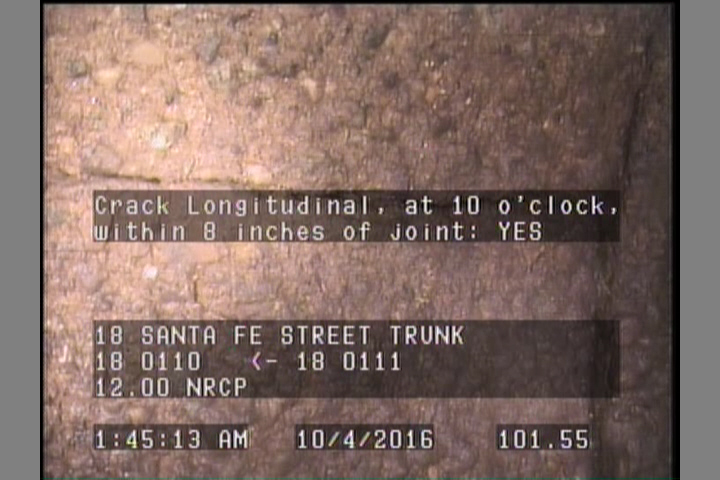

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    101.3 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

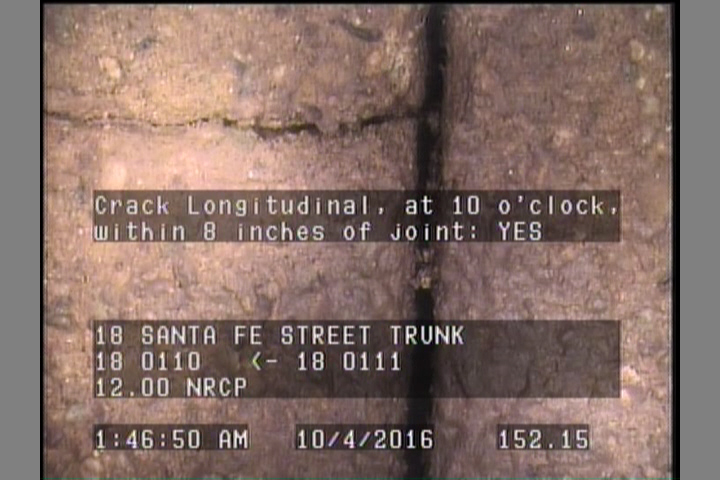

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    152.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

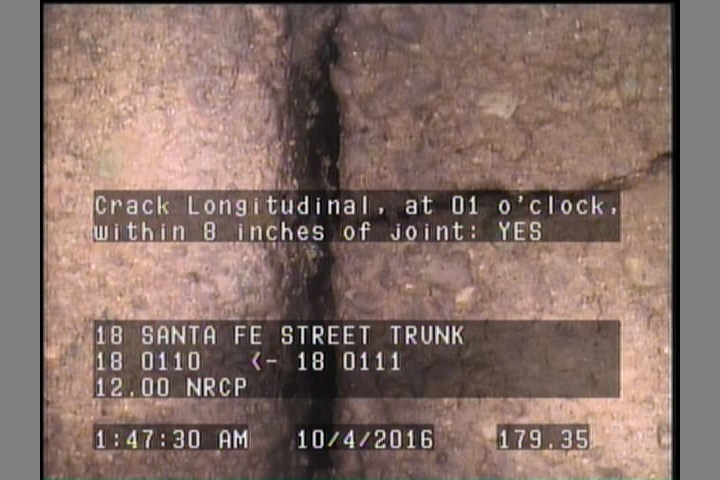

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    179.3 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

All inspections of P13931Work order 597011

Observations (23)

DistanceCodeObservation
191.5TFA—
185.4TFC—
0MWL—
2SAV—
0AMH18 0110
0.3DAGS—
40.8TFA—
101.3CL—
141.4TFA—
152.2CL—
34.1TFC—
224.4DAGS—
227.7AMH18 0111
0MWM—
0MGOCONNECTION AT MH 3 ACTIVE
89.7TFA—
54.1CL—
179.3CL—
83.4TFC—
81.2CL—
225.8MGOCONNECTION AT MH 9 ACTIVE
224SAV—
135.3TFC—

Properties (6)

additional_info
SC303717
custom_field_two
3
customer
LACSD
datetime
2016-10-05T01:38:00-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
