Wastewater/Activity/PacpInspection/1.0Oct 4, 2016, 07:23 AM
18 0086_18 0085 _04102016_003334.mp4
- Date
- 10/04/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13905
- Time
- 12:23 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3729
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0086
- Downstream MH
- 18 0085
- Dir. of Survey
- Downstream
- Length Surveyed
- 313.5 ft.
- Total Length
- 313.5 ft.
- Structural Index
- 2
- Structural Quick
- 3K1K
- Structural Rating
- 248
- O&M Index
- 2
- O&M Quick
- 2K11
- O&M Rating
- 125
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 373
Observation photos (5)

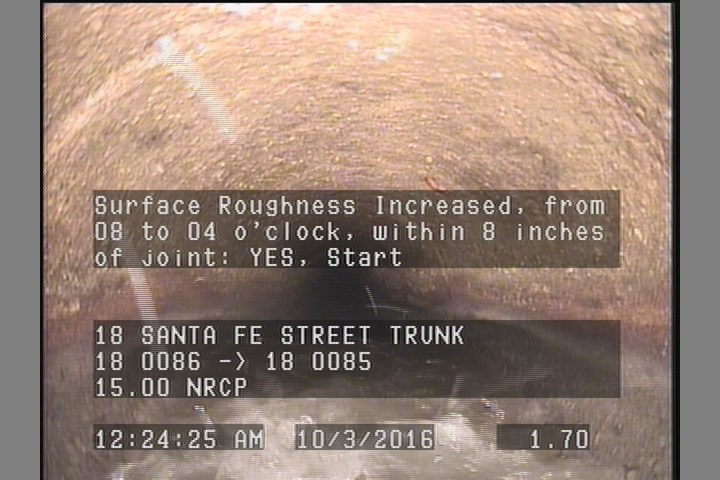

1.7 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

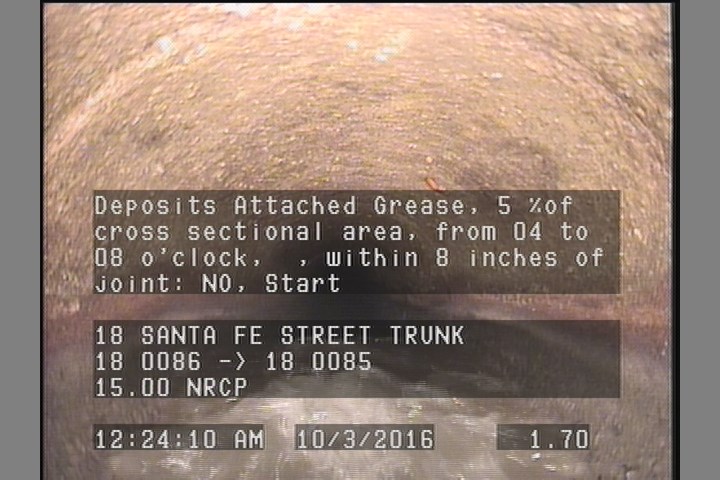

1.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

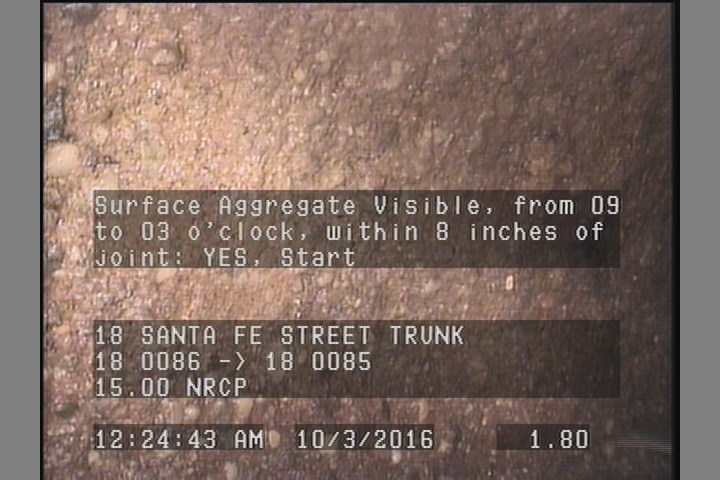

1.8 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

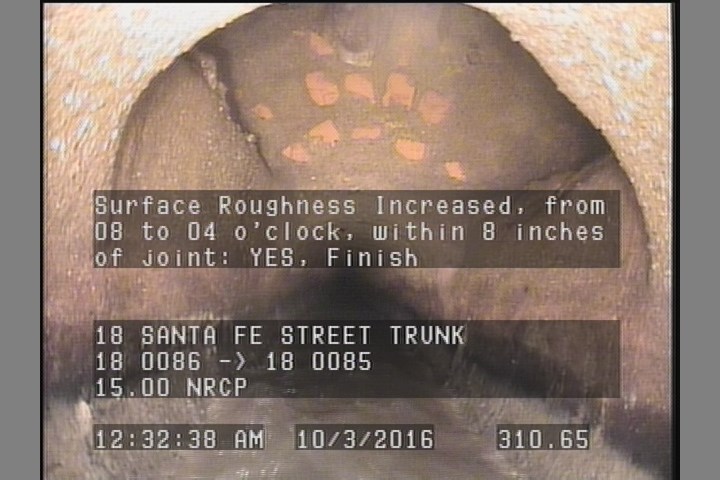

310.7 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

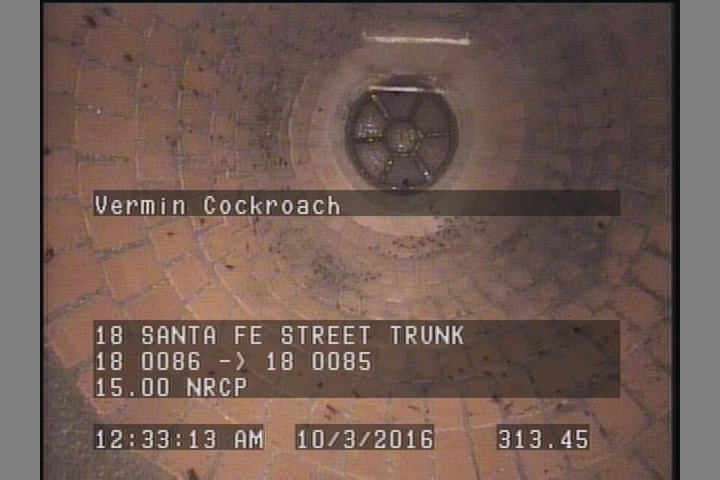

313.5 ft. - Vermin Cockroach
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 313.5 | VC | — |
| 0 | MWL | — |
| 1.8 | SAV | — |
| 310.7 | DAGS | — |
| 1.7 | SRI | — |
| 113.1 | TFC | — |
| 1.7 | DAGS | — |
| 214.2 | TFC | — |
| 0 | MWM | — |
| 310.7 | SRI | — |
| 313.5 | AMH | 18 0086 |
| 310.5 | SAV | — |
| 0 | AMH | 18 0086 |
Properties (6)
- additional_info
- SC303716
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-04T00:23:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
