Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2016, 09:40 AM

  • 18 0116_18 0115 _05102016_025617.mp4

Date
10/05/2016
W/O
597011
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00698
PipeID
P13936
Time
2:40 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3730
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_597011_TV18083_OCT2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0115
Downstream MH
18 0116
Dir. of Survey
Upstream
Length Surveyed
271.9 ft.
Total Length
271.9 ft.
Structural Index
3
Structural Quick
3J23
Structural Rating
165
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
171
Pipe schematic from manhole 18 0115 to 18 0116
MH: 18 0115MH: 18 0116upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 01161.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish3.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish50.5 ft. RTJ - Roots Tap Joint, from 04 to 08 o'clock, 5 %, within 8 inches of joint: YESR53.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"58.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"94.9 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES101.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"108 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"150 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES153.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"159.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"189.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES202.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"208.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"254.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"260.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"269.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start269.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start271.9 ft. MWM - Water Mark, 15 %of cross sectional area271.9 ft. MWL - Water Level, 10 %of cross sectional area271.9 ft. AMH - Downstream Manhole, Survey Begins - 18 0115

Observation photos (5)

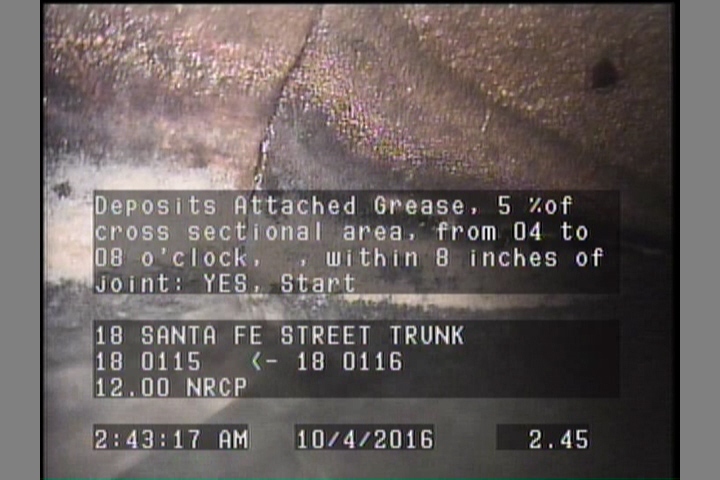

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

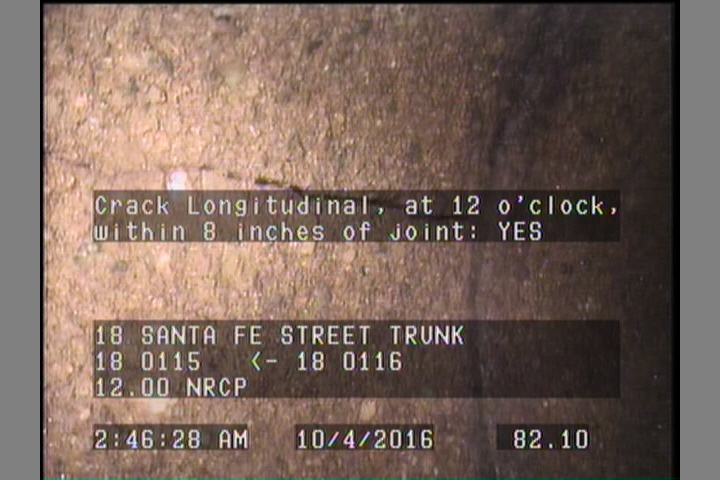

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    82.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

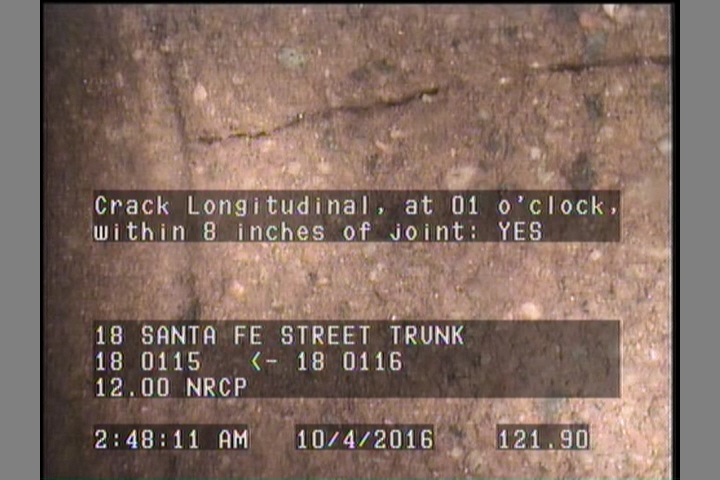

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    121.9 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

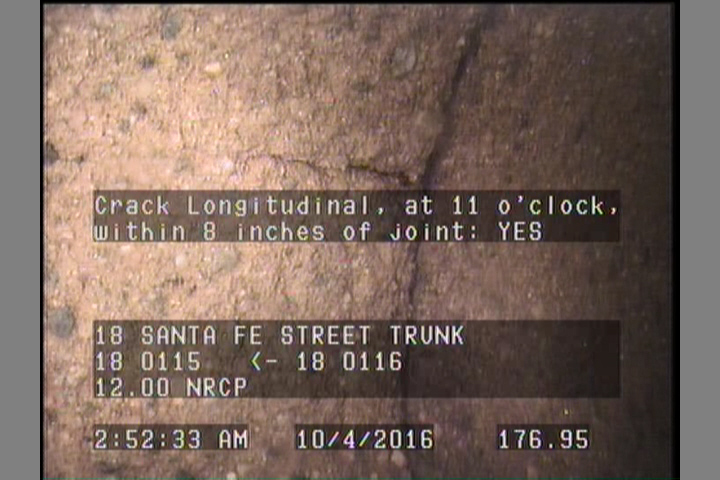

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    177 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

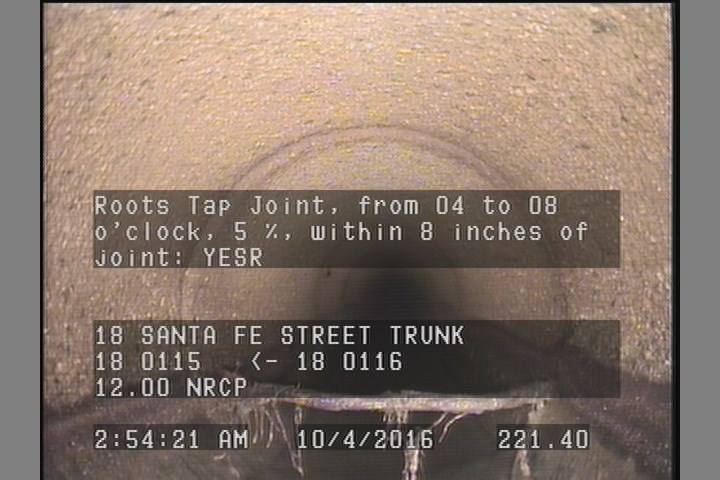

  • Roots Tap Joint, from 04 to 08 o'clock, 5 %, within 8 inches of joint: YESR

    221.4 ft. - Roots Tap Joint, from 04 to 08 o'clock, 5 %, within 8 inches of joint: YESR

All inspections of P13936Work order 597011

Observations (22)

DistanceCodeObservation
82.1CL—
11TFA—
268SAV—
17.2TFA—
221.4RTJ—
270DAGS—
63TFA—
2.5DAGS—
213TFA—
2SAV—
121.9CL—
170.1TFA—
177CL—
112.5TFC—
118.1TFC—
69TFC—
271.9AMH18 0116
0MWM—
0MWL—
163.9TFA—
0AMH18 0115
218.8TFC—

Properties (6)

additional_info
SC303717
custom_field_two
3
customer
LACSD
datetime
2016-10-05T02:40:00-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
