Wastewater/Activity/PacpInspection/1.0Oct 7, 2016, 09:24 AM
18 1096_18 0077 _07102016_023430.mp4
- Date
- 10/07/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13895
- Time
- 2:24 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3732
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0077
- Downstream MH
- 18 1096
- Dir. of Survey
- Upstream
- Length Surveyed
- 242.4 ft.
- Total Length
- 242.4 ft.
- Structural Index
- 2
- Structural Quick
- 412H
- Structural Rating
- 96
- O&M Index
- 2
- O&M Quick
- 2I11
- O&M Rating
- 97
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 193
Observation photos (4)

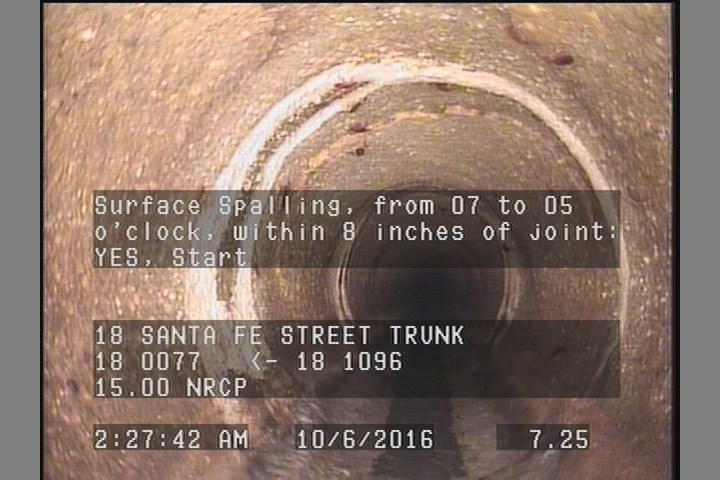

7.3 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

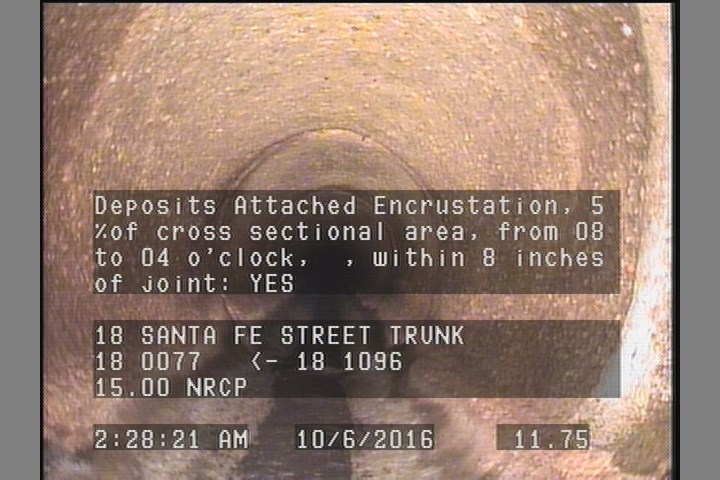

11.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

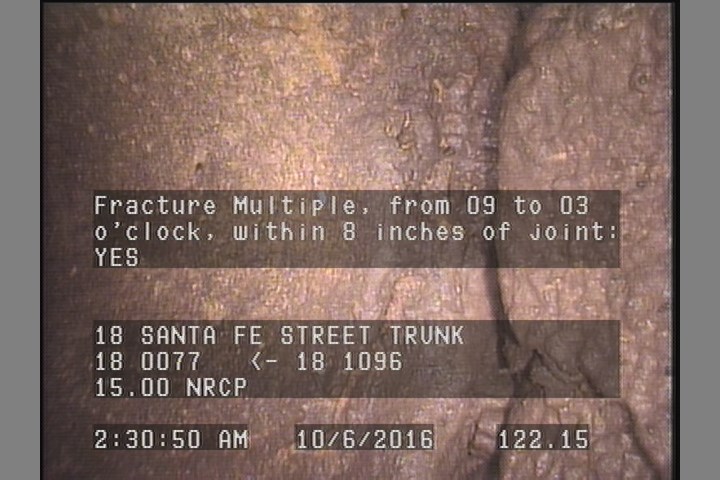

122.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

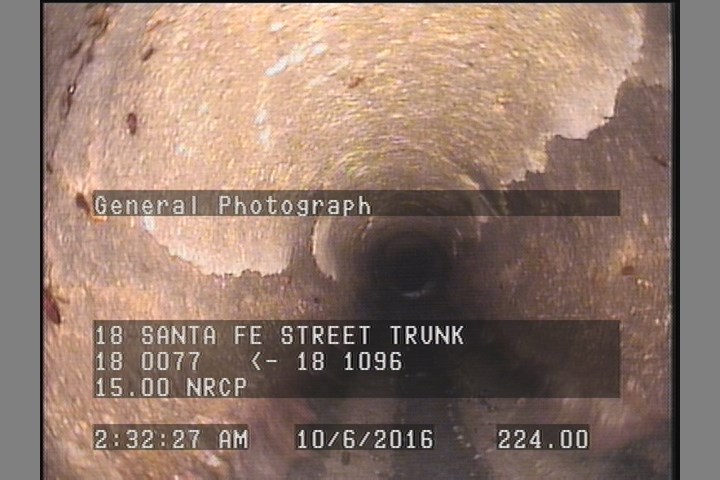

224 ft. - General Photograph
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 242.4 | VC | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 3 ACTIVE |
| 35.7 | TF | — |
| 7.3 | SSS | — |
| 242.4 | MGO | ABANDONED CONNECTION 3 O'CLOCK |
| 237.2 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 9 ACTIVE |
| 224 | MGP | — |
| 122.1 | FM | — |
| 242.4 | AMH | 18 1096 |
| 0 | MWL | — |
| 2 | DAGS | — |
| 11.8 | DAE | — |
| 0 | AMH | 18 0077 |
| 237.2 | SSS | — |
Properties (6)
- additional_info
- SC303719
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-10-07T02:24:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
