Wastewater/Activity/PacpInspection/1.0Oct 11, 2016, 11:57 AM
18 0082_18 0081 _11102016_050519.mpg
- Date
- 10/11/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13901
- Time
- 4:57 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3736
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Sewer Type
- Siphon
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0082
- Downstream MH
- 18 0081
- Dir. of Survey
- Downstream
- Length Surveyed
- 100.9 ft.
- Total Length
- 100.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

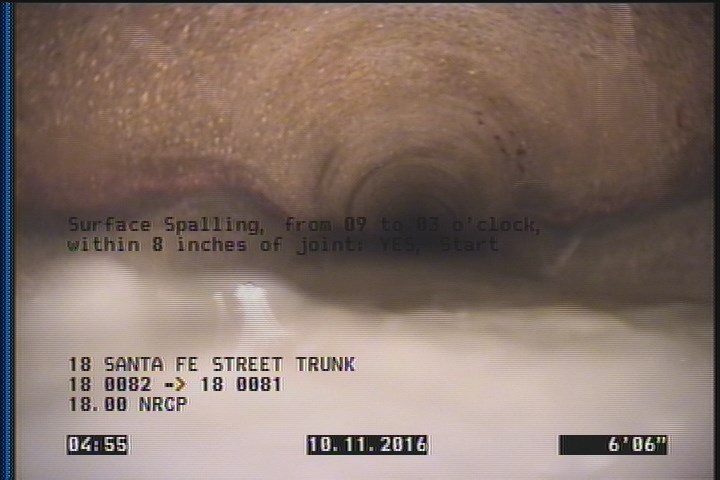

6.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

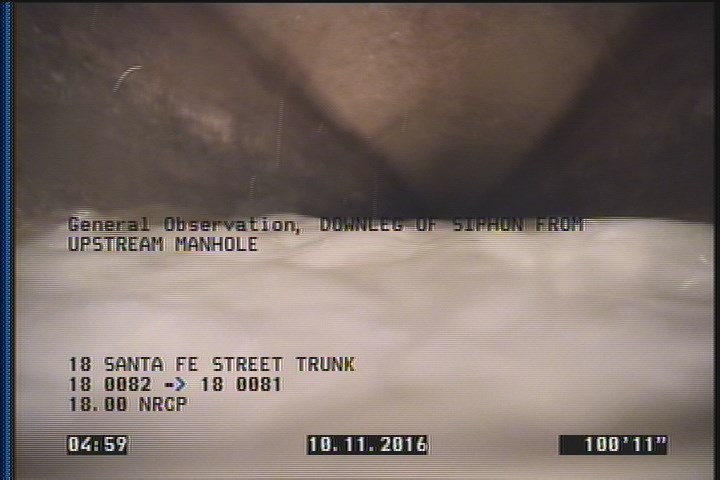

100.9 ft. - General Observation - DOWNLEG OF SIPHON FROM UPSTREAM MANHOLE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 100.9 | MGO | DOWNLEG OF SIPHON FROM UPSTREAM MANHOLE |
| 0 | MWL | — |
| 6.5 | SSS | — |
| 100.9 | MSA | DUE TO SIPHON |
| 100.9 | SSS | — |
| 0 | AMH | 18 0082 |
| 0 | MWM | — |
| 81.1 | TF | — |
| 0 | MGO | CONNECTION AT MANHOLE 9 O''CLOCK |
Properties (6)
- additional_info
- SC303723
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-10-11T04:57:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
