Wastewater/Activity/PacpInspection/1.0Oct 6, 2016, 10:35 AM
18 0075A_18 0075 _06102016_033942.mp4
- Date
- 10/06/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13891
- Time
- 3:35 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3731
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0075
- Downstream MH
- 18 0075A
- Dir. of Survey
- Upstream
- Length Surveyed
- 134.3 ft.
- Total Length
- 134.3 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 52
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 58
Observation photos (2)

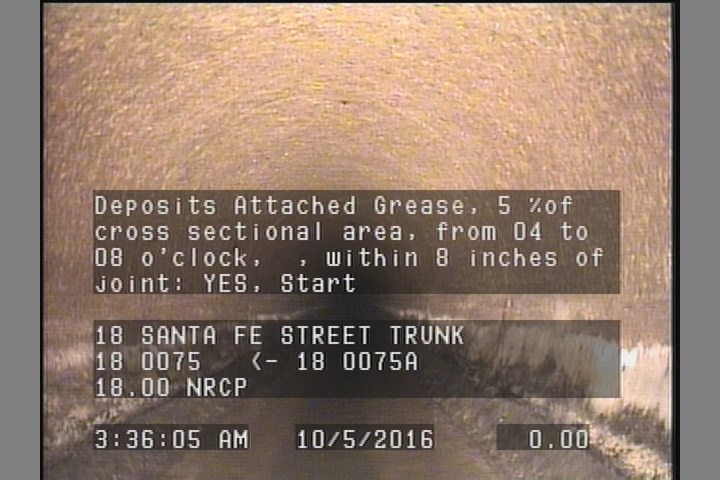

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 18 0075 |
| 2 | DAGS | — |
| 134.1 | MGO | CONNECTION AT MH 3 ACTIVE |
| 0 | MWM | — |
| 2 | SAV | — |
| 134.3 | AMH | 18 0075A |
| 130 | SAV | — |
| 0 | MWL | — |
| 46.7 | TBA | — |
| 131.1 | DAGS | — |
Properties (6)
- additional_info
- SC303718
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-06T03:35:43-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
