Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 6, 2016, 05:39 AM

  • 18 0105_18 0104 _05102016_224750.mp4

Date
10/05/2016
W/O
597011
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00698
PipeID
P13925
Time
10:39 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3731
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_597011_TV18083_OCT2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0105
Downstream MH
18 0104
Dir. of Survey
Downstream
Length Surveyed
173.9 ft.
Total Length
174 ft.
Structural Index
3
Structural Quick
3F22
Structural Rating
106
O&M Index
2
O&M Quick
2211
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
111
Pipe schematic from manhole 18 0105 to 18 0104
MH: 18 0105MH: 18 0104downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 01052 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start22.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"38.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"41 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"68.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"72.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"120.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"124 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"170 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish170.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish172.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish174 ft. AMH - Downstream Manhole, Survey Ends - 18 0104174 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE174 ft. MGO - General Observation - CONNECTION AT MH 3 ACTIVE

Observation photos (2)

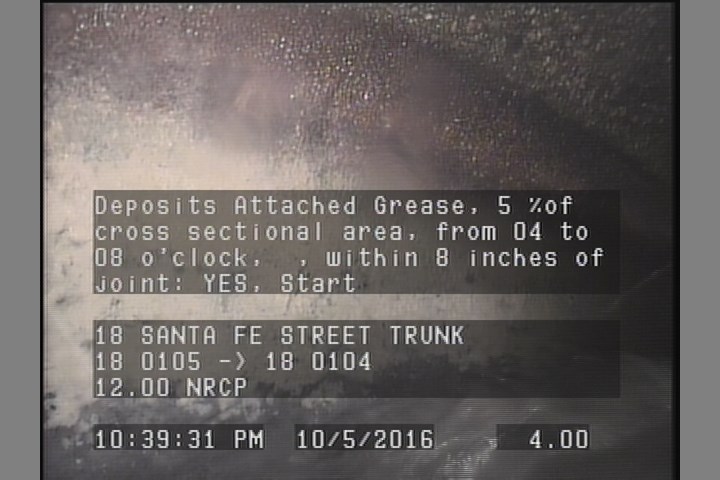

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

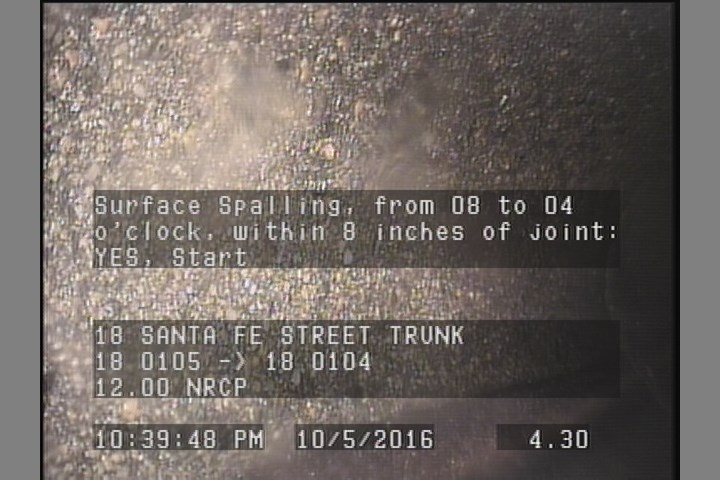

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13925Work order 597011

Observations (21)

DistanceCodeObservation
174AMH18 0104
72.1TFA—
172.4SSS—
38.3TFA—
174MGOCONNECTION AT MH 9 ACTIVE
0MGOCONNECTION AT MH 9 ACTIVE
41TBA—
174MGOCONNECTION AT MH 3 ACTIVE
0MWL—
124TFC—
0VC—
120.7TFC—
22.9TFC—
4.2SSS—
170.9DAGS—
2SAV—
0MWM—
0AMH18 0105
68.4TFC—
170SAV—
4DAGS—

Properties (6)

additional_info
SC303718
custom_field_two
2
customer
LACSD
datetime
2016-10-05T22:39:00-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
