Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2016, 08:55 AM

  • 18 0112_18 0111 _05102016_020041.mp4

Date
10/05/2016
W/O
597011
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00698
PipeID
P13932
Time
1:55 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3730
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_597011_TV18083_OCT2016
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0111
Downstream MH
18 0112
Dir. of Survey
Upstream
Length Surveyed
60.7 ft.
Total Length
60.7 ft.
Structural Index
3
Structural Quick
3A22
Structural Rating
37
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
41
Pipe schematic from manhole 18 0111 to 18 0112
MH: 18 0111MH: 18 0112upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 01124.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish5.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish10.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"15.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"38 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES45.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES46 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"51.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"58.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start58.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start60.7 ft. AMH - Downstream Manhole, Survey Begins - 18 011160.7 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE60.7 ft. MWM - Water Mark, 15 %of cross sectional area60.7 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (3)

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

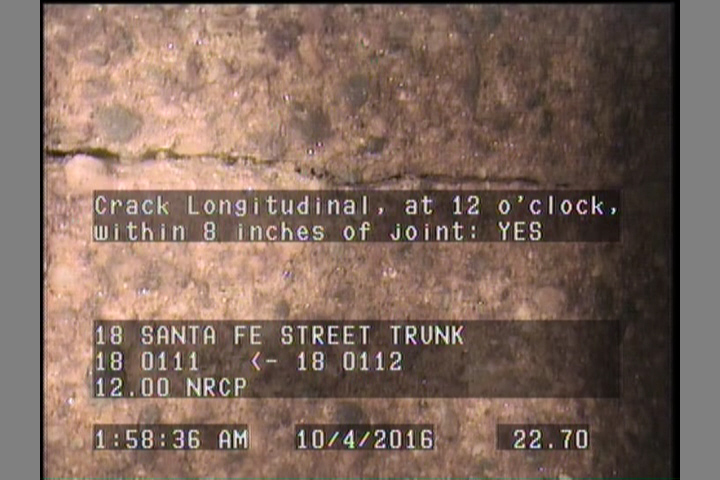

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    15.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

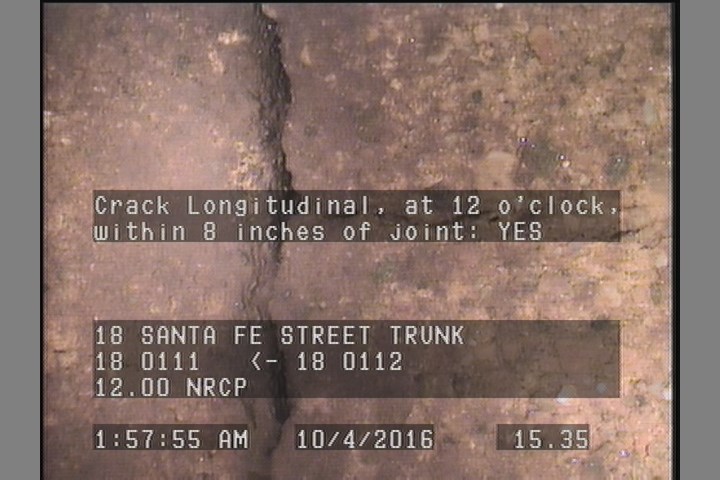

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    22.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P13932Work order 597011

Observations (15)

DistanceCodeObservation
56.6DAGS—
9.1TFC—
0AMH18 0111
22.7CL—
2.5DAGS—
0MGOCONNECTION AT MH 9 ACTIVE
0MWM—
50.6TFA—
60.7AMH18 0112
14.7TFC—
44.8TFC—
55SAV—
0MWL—
2SAV—
15.4CL—

Properties (6)

additional_info
SC303717
custom_field_two
3
customer
LACSD
datetime
2016-10-05T01:55:00-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
