Wastewater/Activity/PacpInspection/1.0Oct 7, 2016, 09:42 AM
18 0079_18 0078 _07102016_025143.mp4
- Date
- 10/07/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13897
- Time
- 2:42 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3732
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0078
- Downstream MH
- 18 0079
- Dir. of Survey
- Upstream
- Length Surveyed
- 298.1 ft.
- Total Length
- 298.2 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)
2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

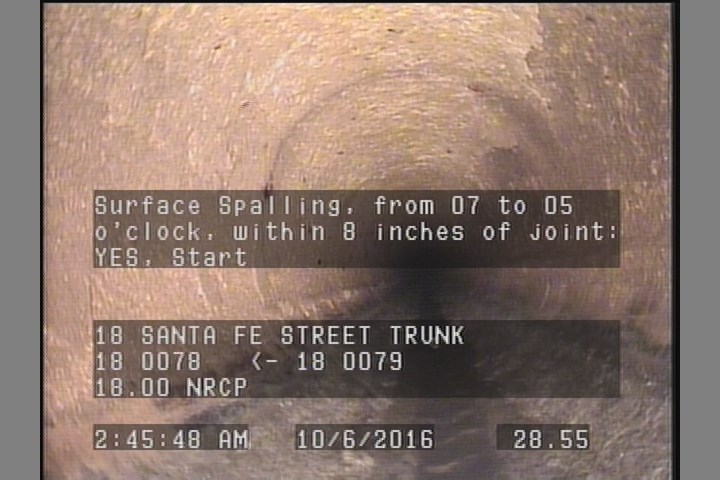

28.6 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 298.2 | AMH | 18 0079 |
| 297.2 | SSS | — |
| 0 | AMH | 18 0078 |
| 287.2 | TFA | — |
| 297.2 | DAGS | — |
| 295 | SAV | — |
| 6.1 | DAGS | — |
| 0 | MWL | — |
| 2 | SAV | — |
| 28.6 | SSS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC303719
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-10-07T02:42:57-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
