Wastewater/Activity/PacpInspection/1.0Oct 4, 2016, 07:34 AM
18 0085_18 0084 _04102016_005003.mp4
- Date
- 10/04/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13904
- Time
- 12:34 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3729
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0085
- Downstream MH
- 18 0084
- Dir. of Survey
- Downstream
- Length Surveyed
- 282.3 ft.
- Total Length
- 282.3 ft.
- Structural Index
- 3
- Structural Quick
- 3J2J
- Structural Rating
- 278
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 110
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 388
Observation photos (4)

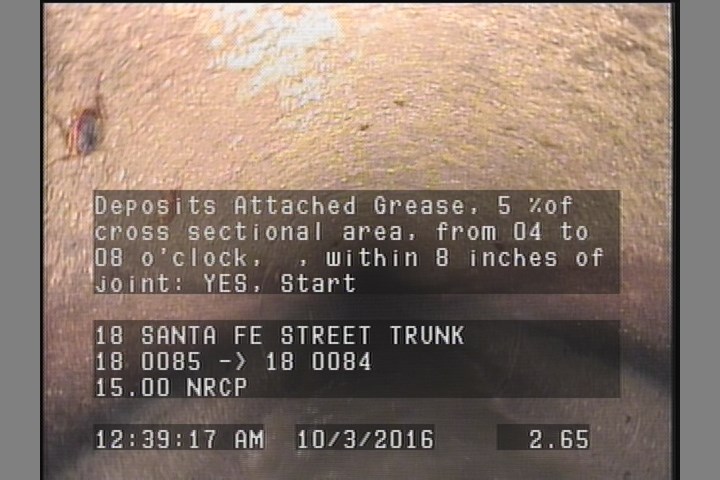

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

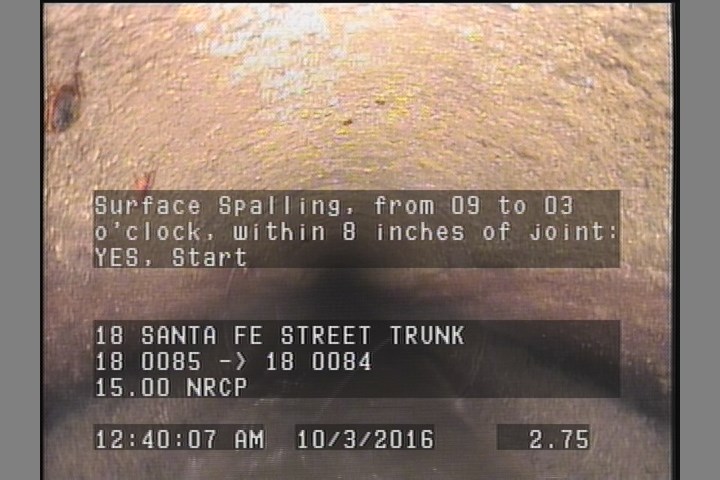

2.8 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
2.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

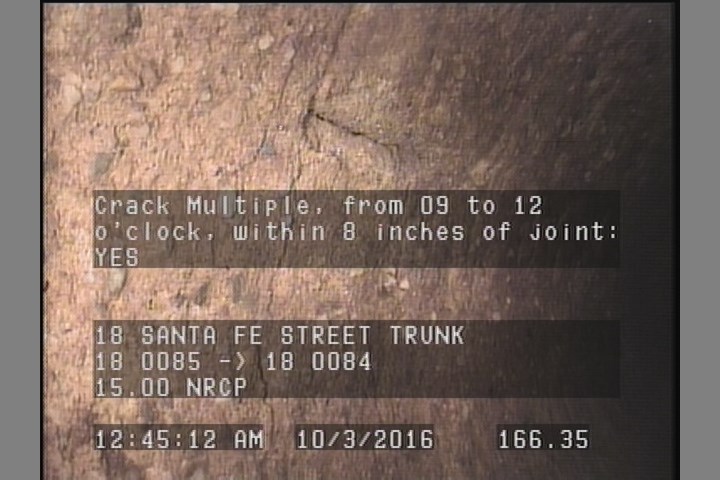

166.4 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 179.6 | TFC | — |
| 0 | MWL | — |
| 106.9 | TFC | — |
| 280 | SAV | — |
| 2.6 | DAGS | — |
| 2.8 | SSS | — |
| 279.5 | DAGS | — |
| 0 | AMH | 18 0085 |
| 282.3 | AMH | 18 0084 |
| 0 | MWM | — |
| 166.4 | CM | — |
| 2.8 | SAV | — |
| 279.6 | SSS | — |
Properties (6)
- additional_info
- SC303716
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-10-04T00:34:53-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
