Wastewater/Activity/PacpInspection/1.0Oct 14, 2016, 09:53 AM
16 0553_16 0552 _10142016_025410.mp4
- Date
- 10/14/2016
- W/O
- 596999
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00659
- PipeID
- P13604
- Time
- 2:53 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3783
- Sewer Name
- 16 LAMANDA PARK TRUNK
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_596999_TV16077_OCT2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 16 0553
- Downstream MH
- 16 0552
- Dir. of Survey
- Downstream
- Length Surveyed
- 101 ft.
- Total Length
- 101 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

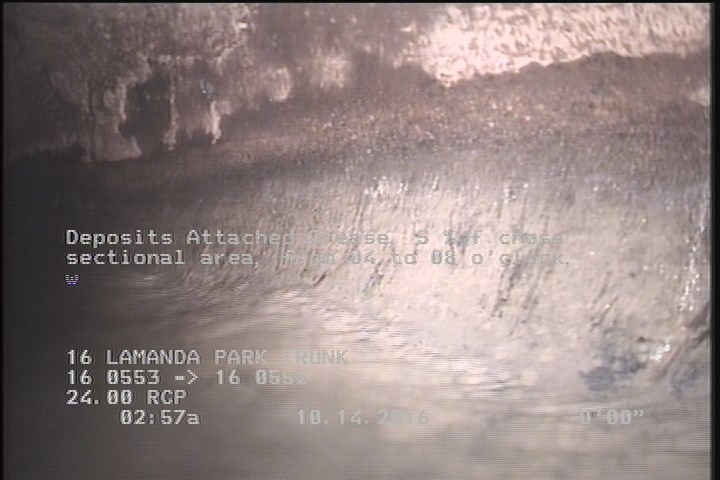

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

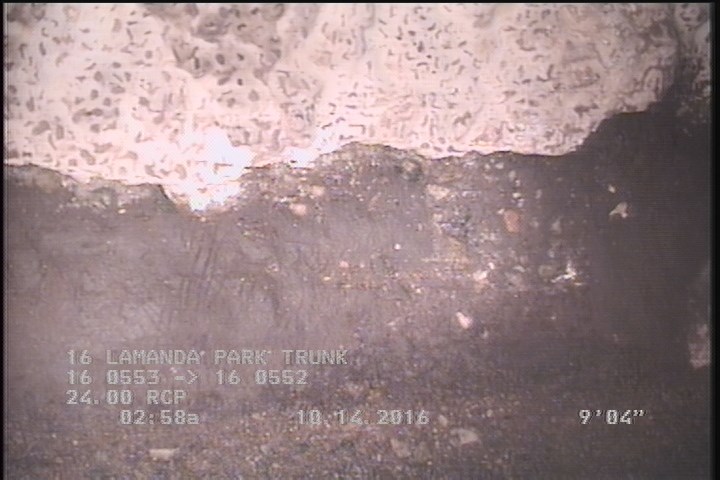

9.4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

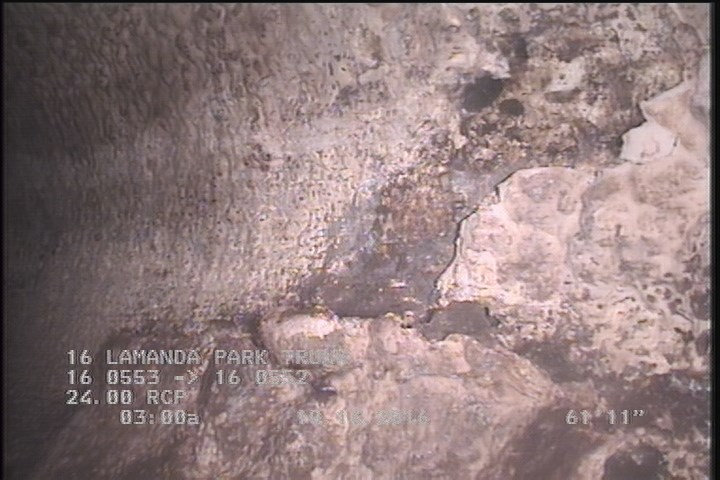

61.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 9.4 | SAV | — |
| 35 | TFA | — |
| 101 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 99.3 | SSS | — |
| 99.3 | DAGS | — |
| 0 | AMH | 16 0553 |
| 87.6 | TFA | — |
| 0 | MWL | — |
| 101 | AMH | 16 0552 |
| 0 | MWM | — |
| 99.3 | SAV | — |
| 51 | TF | — |
| 61.9 | SSS | — |
| 2 | DAGS | — |
| 5.9 | MGO | MAG COATING 80% |
Properties (6)
- additional_info
- SC306320
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-14T02:53:11-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
