Wastewater/Activity/PacpInspection/1.0Oct 11, 2016, 07:24 AM
H 1206_H 1205 _10112016_001157.mp4
- Date
- 10/11/2016
- W/O
- 596964
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01182
- PipeID
- P17632
- Time
- 12:24 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3778
- Sewer Name
- H JOINT OUTFALL H - UNIT 8K RELIEF
- City
- IRWINDALE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_596964_TV15041_OCT2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- H 1206
- Downstream MH
- H 1205
- Dir. of Survey
- Downstream
- Length Surveyed
- 700.2 ft.
- Total Length
- 700.2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

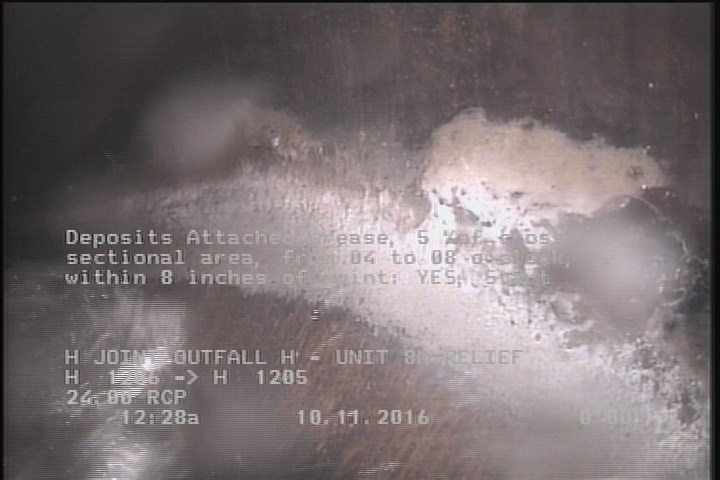

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

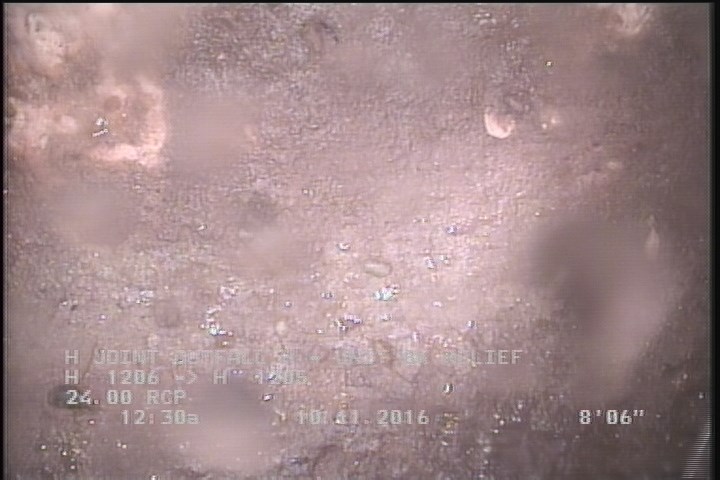

8.5 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

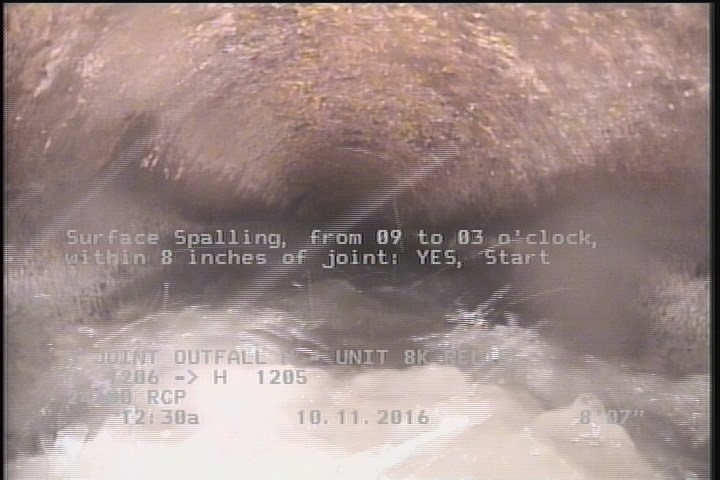

8.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

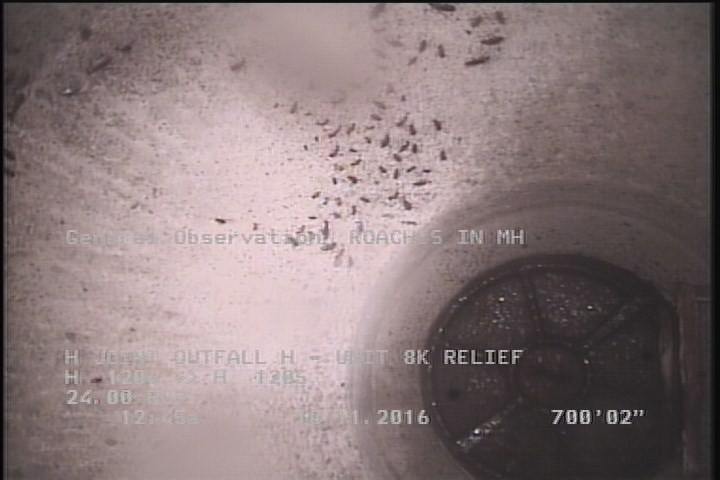

700.2 ft. - General Observation - ROACHES IN MH
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 8.5 | SAV | — |
| 700.2 | MGO | ROACHES IN MH |
| 698.7 | DAGS | — |
| 0.1 | MWM | — |
| 8.6 | SSS | — |
| 698.7 | SSS | — |
| 698.7 | SAV | — |
| 0 | AMH | H 1206 |
| 2 | DAGS | — |
| 0 | MWL | — |
| 700.2 | AMH | H 1205 |
Properties (7)
- additional_info
- SC306315
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-11T00:24:41-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 30658
