Wastewater/Activity/PacpInspection/1.0Oct 7, 2016, 08:50 AM
H 1224_H 1223 _10072016_014829.mp4
- Date
- 10/07/2016
- W/O
- 596964
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01182
- PipeID
- P17648
- Time
- 1:50 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3776
- Sewer Name
- H JOINT OUTFALL H - UNIT 8K RELIEF
- City
- IRWINDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_596964_TV15041_OCT2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- H 1224
- Downstream MH
- H 1223
- Dir. of Survey
- Downstream
- Length Surveyed
- 550.4 ft.
- Total Length
- 550.4 ft.
- Structural Index
- 3
- Structural Quick
- 4131
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

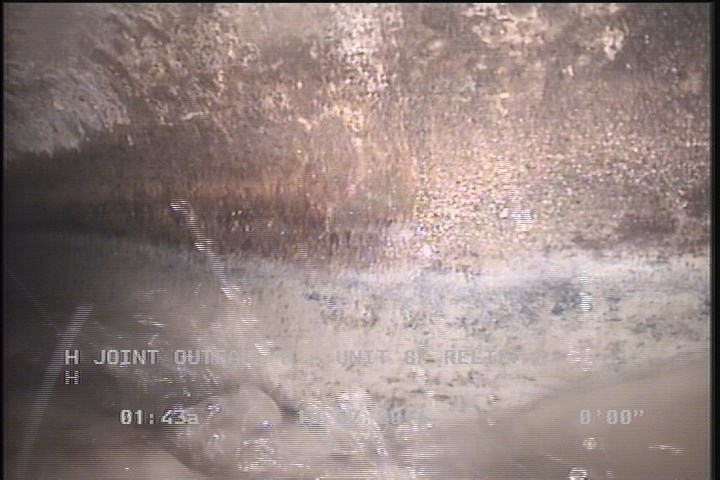

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

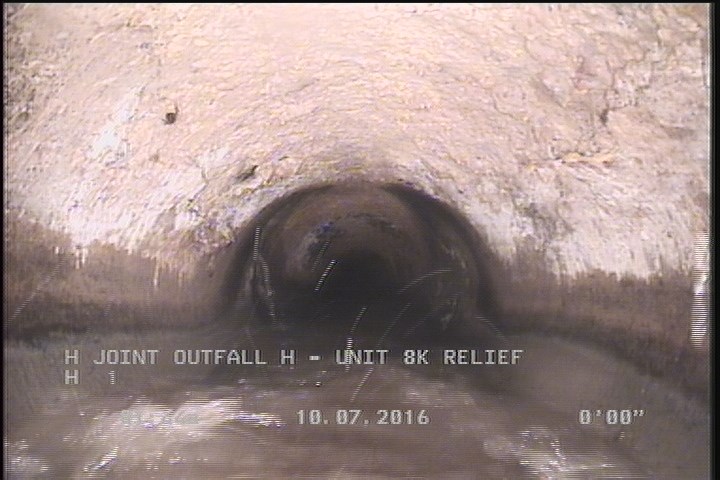

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

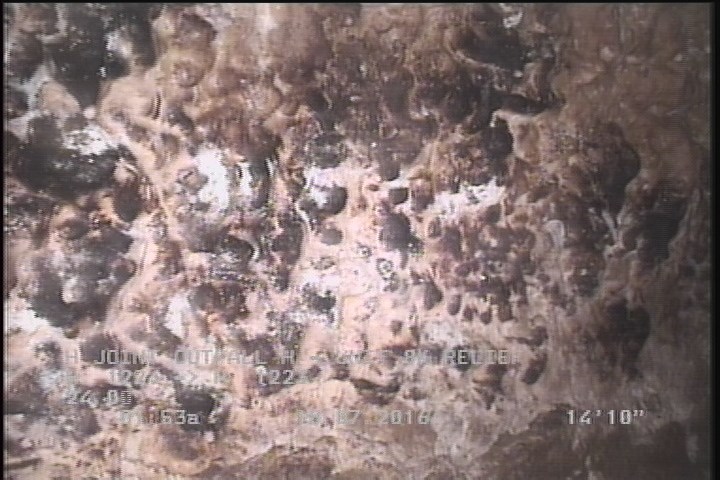

14.2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

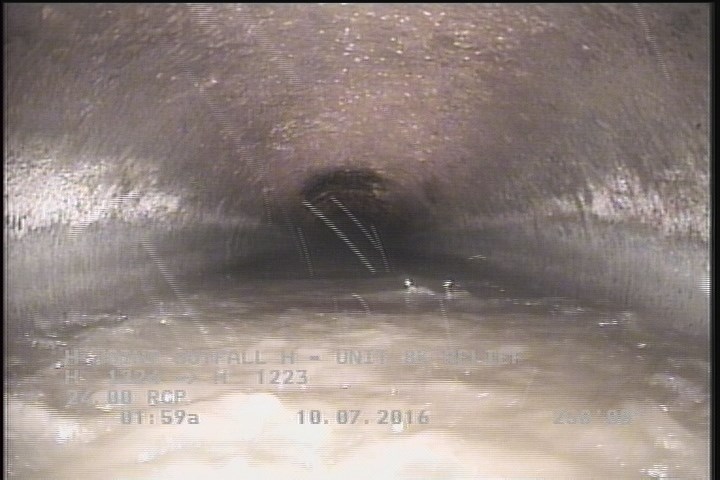

258 ft. - Water Level, Sag in pipe, 60 %of cross sectional area, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 14.2 | SAV | — |
| 550.4 | SAV | — |
| 7.8 | TFA | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 2 | SSS | — |
| 308.7 | MWLS | — |
| 0 | MWM | — |
| 0 | AMH | H 1224 |
| 550.4 | SSS | — |
| 550.4 | DAGS | — |
| 258 | MWLS | — |
| 550.4 | AMH | H 1223 |
Properties (7)
- additional_info
- SC306313
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-07T01:50:42-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 30904
