Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2018, 11:29 AM

  • 04 0070_04 0069A _07022018_034220.mp4

Date
02/07/2018
W/O
685064
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00415
PipeID
P11806
Time
3:29 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5433
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
03
Purpose
Routine Assessment
Project
WO_685064_TV04009_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
04 0070
Downstream MH
04 0069A
Dir. of Survey
Downstream
Length Surveyed
301.4 ft.
Total Length
301.4 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
171
O&M Index
2
O&M Quick
3923
O&M Rating
36
Overall Index
3
Overall Quick
—
Overall Rating
207
Pipe schematic from manhole 04 0070 to 04 0069A
MH: 04 0070MH: 04 0069Adownstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 04 00700 ft. MWM - Water Mark, 10 %of cross sectional area2.5 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start2.5 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start11.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start29.1 ft. RML - Roots Medium Lateral, at 10 o'clock, 20 %, within 8 inches of joint: NO29.1 ft. RFC - Roots Fine Connection, from 08 to 10 o'clock29.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"42.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"42.4 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish63 ft. IS - Infiltration Stain, from 02 to 04 o'clock, within 8 inches of joint: YES - POSSIBLE68.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"68.5 ft. RFL - Roots Fine Lateral, at 10 o'clock68.5 ft. RFC - Roots Fine Connection, at 10 o'clock94.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"107.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"118 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"120.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"178.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"197.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"244.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"249.6 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6", 6" - CRACKS270.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"273.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"288.9 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish295.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish301 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK301.4 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK301.4 ft. AMH - Downstream Manhole, Survey Ends - 04 0069A

Observation photos (3)

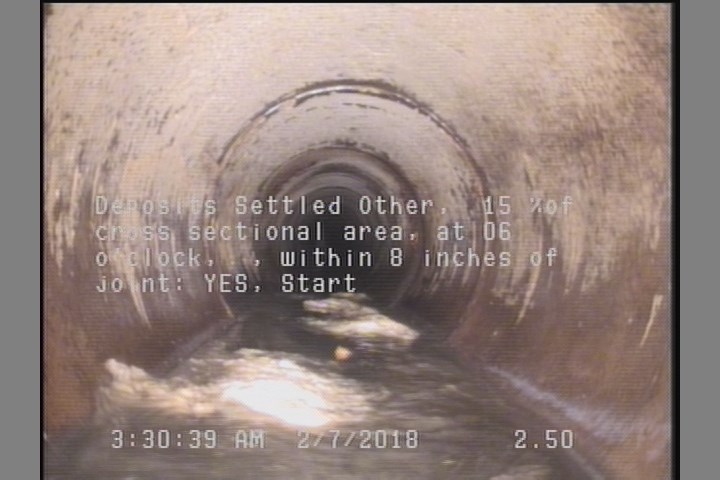

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

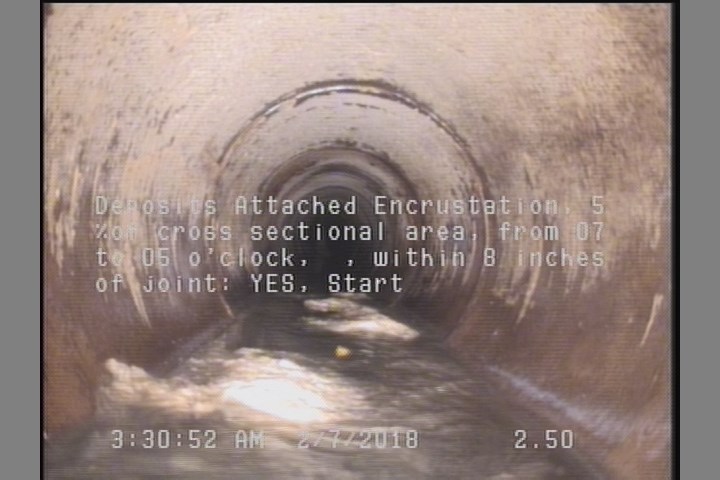

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

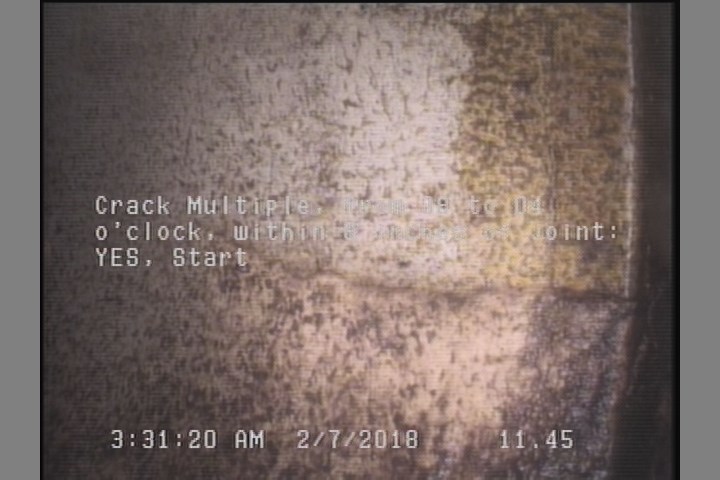

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P11806Work order 685064

Observations (30)

DistanceCodeObservation
118TF—
29.1RML—
42.4TF—
68.5TF—
0MWL—
2.5DSZ—
270.4TFC—
249.6TFDCRACKS
273.4TFC—
0AMH04 0070
301MGOCONNECTION AT MH 9 O'CLOCK
42.4DSZ—
11.5CM—
178.5TFC—
68.5RFL—
301.4MGOCONNECTION AT MH 6 O'CLOCK
29.1RFC—
94.5TF—
295.7CM—
0MWM—
68.5RFC—
120.6TF—
29.1TF—
288.9DAE—
197.5TF—
2.5DAE—
63ISPOSSIBLE
301.4AMH04 0069A
107.6TF—
244.4TFC—

Properties (6)

additional_info
SC347071
custom_field_two
3
customer
LACSD
datetime
2018-02-07T03:29:06-08:00
documentation
PROPIPE
is_lateral_inspection
false
