Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 6, 2018, 06:02 AM

  • 01 1355_01 0799_05022018_223511.mp4

Date
02/05/2018
W/O
684850
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00197
PipeID
P01503
Time
10:02 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5431
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
WO_684850_TV01264_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 1355
Downstream MH
01 0799
Dir. of Survey
Downstream
Length Surveyed
324.6 ft.
Total Length
324.6 ft.
Structural Index
4
Structural Quick
4L21
Structural Rating
262
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
262
Pipe schematic from manhole 01 1355 to 01 0799
MH: 01 1355MH: 01 0799downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 13550 ft. MWL - Water Level, 30 %of cross sectional area2.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES2.3 ft. FM - Fracture Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES4.4 ft. FM - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Start30 ft. MGO - General Observation - OUT OF ROUND PIPE @ 12 O'CLOCK50.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"67.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"69.2 ft. FM - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish69.2 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start73.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"95.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"116.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"122.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"149.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"163.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"172.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"196.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"208 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"218 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"244.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"256.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"286.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"295.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"322.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish324.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0799324.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (4)

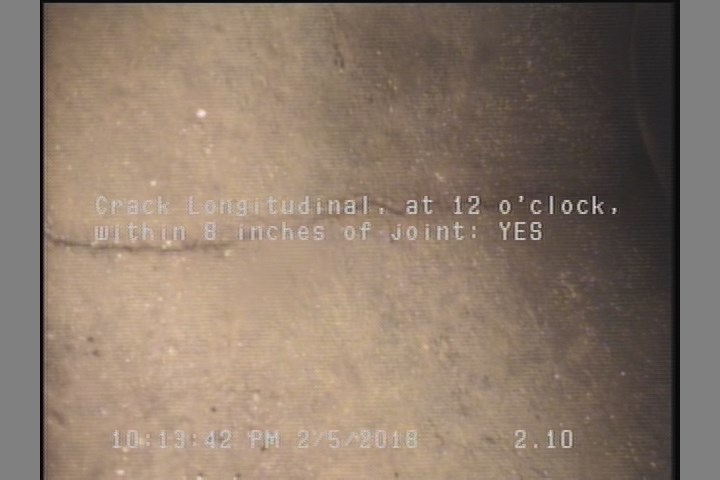

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    2.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

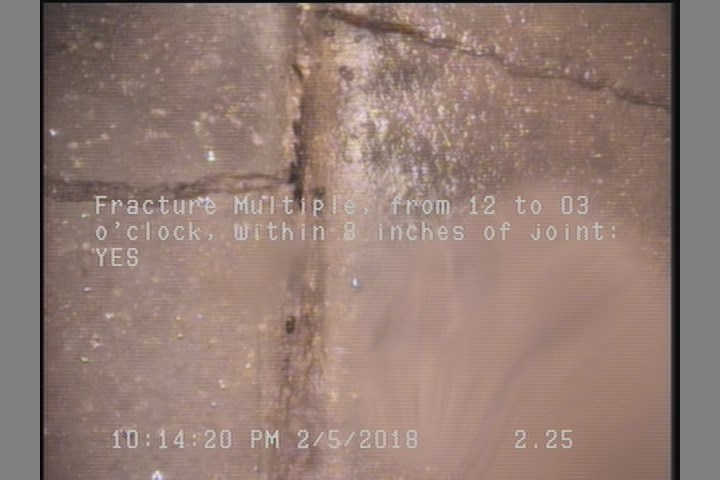

  • Fracture Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

    2.3 ft. - Fracture Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

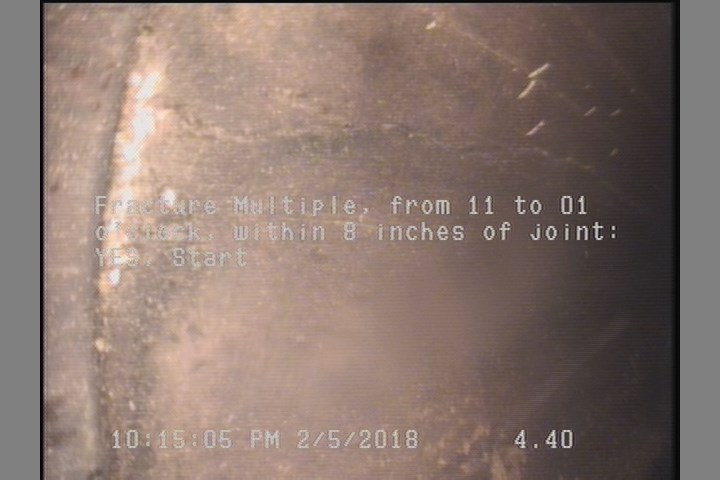

  • Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    4.4 ft. - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

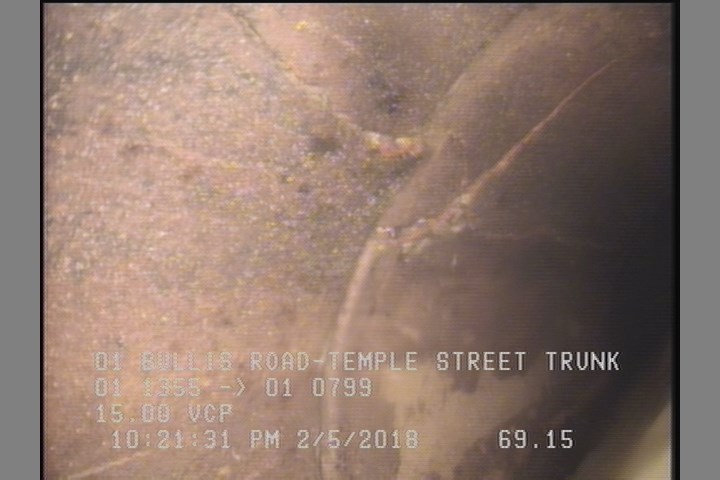

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    69.2 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01503Work order 684850

Observations (28)

DistanceCodeObservation
2.3FM—
256.4TFC—
95.2TFC—
122.6TFC—
4.4FM—
208TFC—
286.6TFC—
0MWM—
295.2TFC—
69.2FM—
69.2FM—
172.3TFC—
324.6AMH01 0799
149.1TFC—
163.8TF—
2.1CL—
0AMH01 1355
116.5TFC—
218TFC—
244.5TFC—
73.7TFC—
50.3TFC—
196.2TFC—
30MGOOUT OF ROUND PIPE @ 12 O'CLOCK
322.9FM—
324.6MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
67.9TFC—

Properties (6)

additional_info
SC347069
custom_field_two
1
customer
LACSD
datetime
2018-02-05T22:02:45-08:00
documentation
PROPIPE
is_lateral_inspection
false
