Wastewater/Activity/PacpInspection/1.0Mar 8, 2017, 07:29 AM
05 1318_05 1317 _07032017_232934.mpg
- Date
- 03/07/2017
- W/O
- 624345
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00452
- PipeID
- P06534
- Time
- 11:29 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4373
- Sewer Name
- 05 GRAMERCY PLACE TRUNK, SECTION 3
- City
- GARDENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_624345_TV05034_MAR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 05 1317
- Downstream MH
- 05 1318
- Dir. of Survey
- Upstream
- Length Surveyed
- 418 ft.
- Total Length
- 418 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 30
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 32
Observation photos (2)

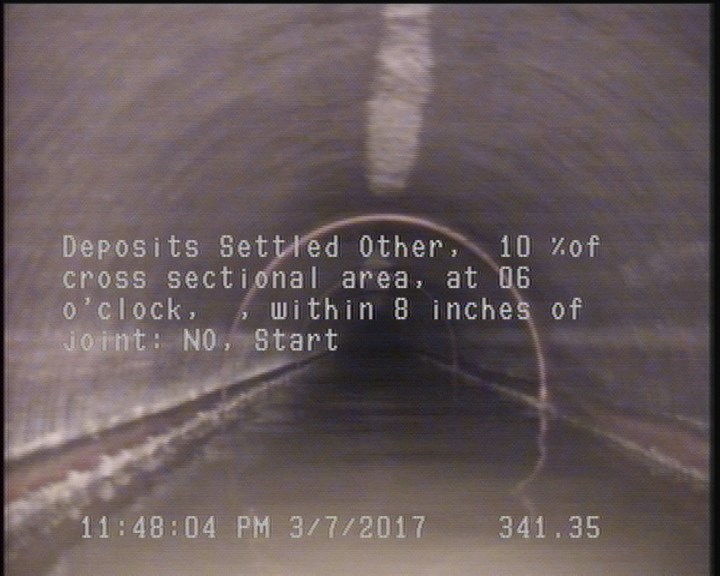

341.4 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

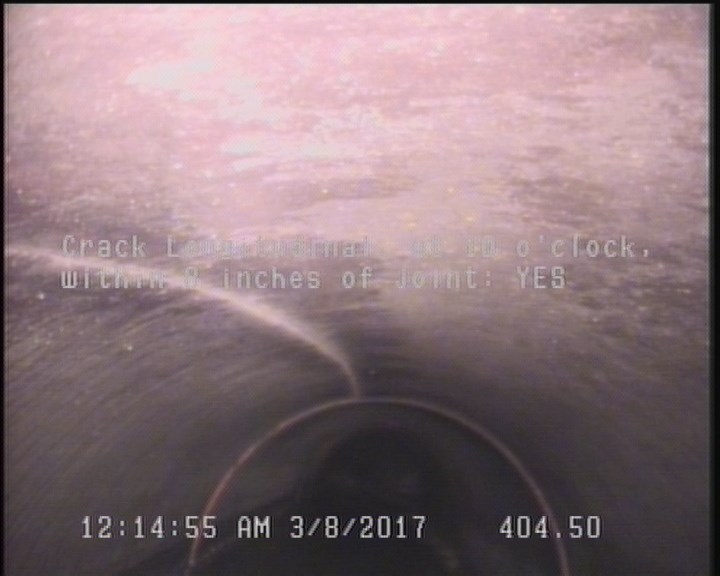

404.5 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 380.1 | TF | — |
| 418 | AMH | 05 1318 |
| 341.4 | DSZ | — |
| 0 | AMH | 05 1317 |
| 404.5 | CL | — |
| 0 | MWM | — |
| 417.9 | DSZ | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC306882
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-03-07T23:29:14-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
