Wastewater/Activity/PacpInspection/1.0Feb 6, 2017, 09:04 AM
F 0077F 0254 District 02_060217.mpg
- Date
- 02/06/2017
- W/O
- 622202
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00036
- PipeID
- P10178
- Time
- 1:04 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4256
- Sewer Name
- F JOINT OUTFALL F - UNIT 3A RELIEF
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Routine Assessment
- Project
- WO_622202_DISTRICT02_FEB2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 66 in.
- Width
- 66 in.
- Upstream MH
- F 0077
- Downstream MH
- F 0254
- Dir. of Survey
- Downstream
- Length Surveyed
- 16.1 ft.
- Total Length
- 16.2 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

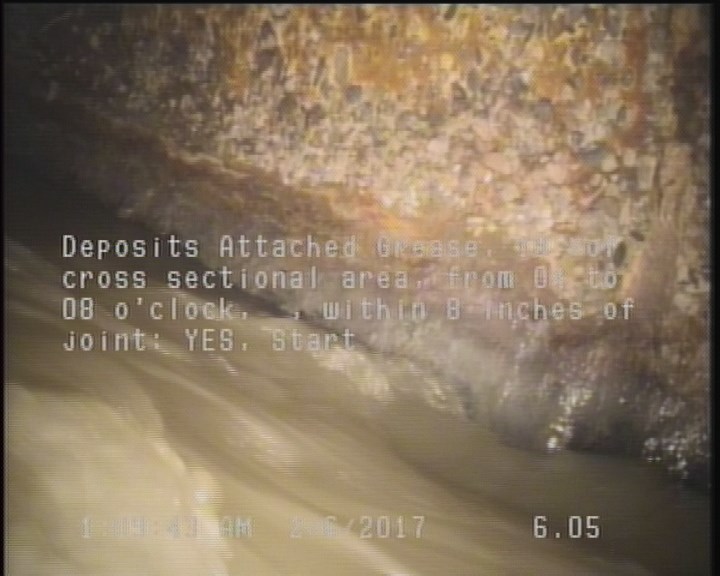

6.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

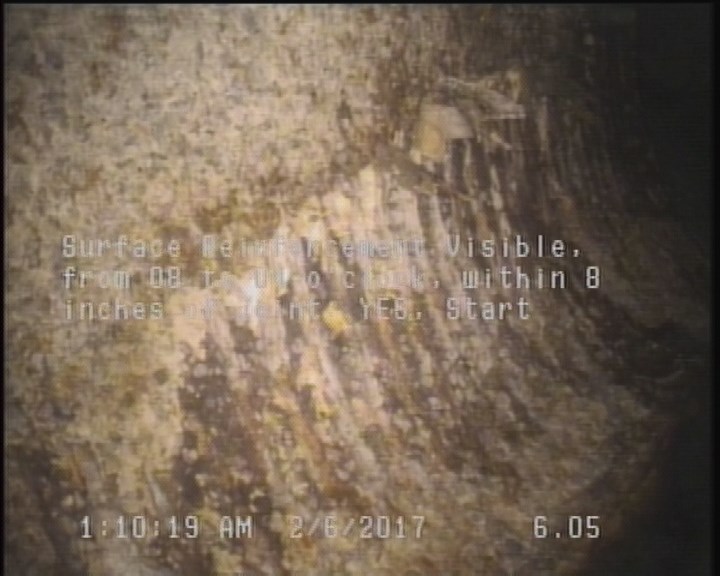

6.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 16.2 | AMH | F 0254 |
| 0 | MWL | — |
| 0 | MWM | — |
| 6.1 | MGO | MAGNESIUM H.O. START |
| 6.1 | DAGS | — |
| 12.2 | MGO | MAGNEZIUM H.O. FINISH |
| 6.1 | SRV | — |
| 12.3 | SRV | — |
| 0 | AMH | F 0077 |
| 12.3 | DAGS | — |
| 16.2 | MGO | BULKHEAD AT MH |
Properties (6)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-02-06T01:04:50-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 27333
