Wastewater/Activity/PacpInspection/1.0Feb 22, 2017, 12:35 PM
C 0389_C 0388_02222017_043533.mp4
- Date
- 02/22/2017
- W/O
- 619106
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00142
- PipeID
- P09853
- Time
- 4:35 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4250
- Sewer Name
- C JOINT OUTFALL C - UNIT 8D
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_619106_TV19055_FEB2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- C 0389
- Downstream MH
- C 0388
- Dir. of Survey
- Downstream
- Length Surveyed
- 353.2 ft.
- Total Length
- 353.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2[00
- O&M Rating
- 280
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 280
Observation photos (1)

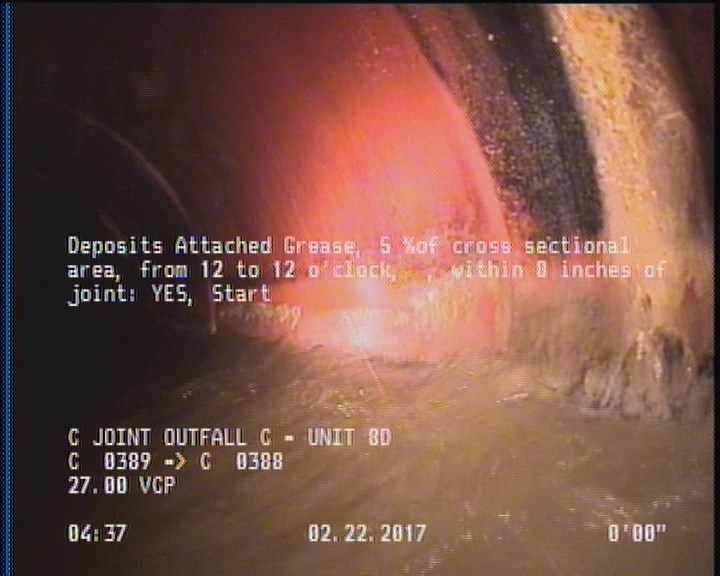

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 353.2 | AMH | C 0388 |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | DAGS | — |
| 0 | MWM | — |
| 353.2 | DAGS | — |
| 2 | DSZ | DEBRIS |
| 0 | MWL | — |
| 353.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | C 0389 |
| 353.2 | DSZ | — |
Properties (7)
- additional_info
- SC306953
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-02-22T04:35:20-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 26643
