Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 20, 2017, 05:38 PM

  • J 0265_J 0264 _02132017_031705.mpg

Date
01/20/2017
W/O
619078
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00059
PipeID
P11504
Time
9:38 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4264
Sewer Name
J JOINT OUTFALL J - UNIT 1G
City
PALOS VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
46
Purpose
Routine Assessment
Project
WO_619078_TV05169_FEB2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
J 0265
Downstream MH
J 0264
Dir. of Survey
Downstream
Length Surveyed
189.3 ft.
Total Length
189.3 ft.
Structural Index
2
Structural Quick
3G2H
Structural Rating
200
O&M Index
2
O&M Quick
432F
O&M Rating
86
Overall Index
2
Overall Quick
—
Overall Rating
286
Pipe schematic from manhole J 0265 to J 0264
MH: J 0265MH: J 0264downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - J 02650 ft. MWM - Water Mark, 25 %of cross sectional area4.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start119.3 ft. SAP - Surface Aggregate Projecting, from 02 to 03 o'clock, within 8 inches of joint: NO148.7 ft. MWL - Water Level, 25 %of cross sectional area160 ft. MWLS - Water Level, Sag in pipe, 25 %of cross sectional area, Start174.3 ft. MCU - Camera Underwater, Start189.3 ft. MWLS - Water Level, Sag in pipe, 25 %of cross sectional area, Finish189.3 ft. MSA - Survey Abandoned - CAMERA UNDERWATER189.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish189.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish189.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish189.3 ft. MCU - Camera Underwater, Finish

Observation photos (4)

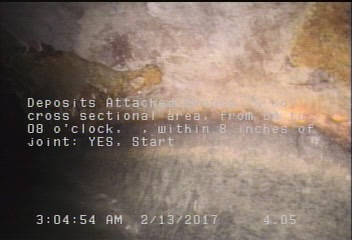

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    4.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

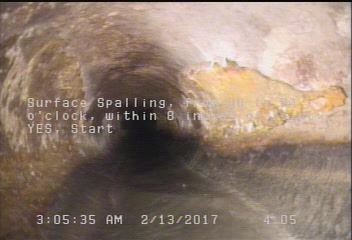

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

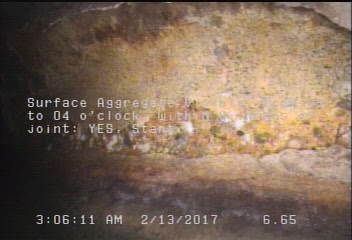

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

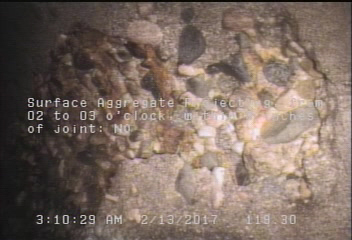

  • Surface Aggregate Projecting, from 02 to 03 o'clock, within 8 inches of joint: NO

    119.3 ft. - Surface Aggregate Projecting, from 02 to 03 o'clock, within 8 inches of joint: NO

All inspections of P11504Work order 619078

Observations (16)

DistanceCodeObservation
4.1DAGS—
0MWL—
189.3MWLS—
0AMHJ 0265
189.3MSACAMERA UNDERWATER
6.7SAV—
148.7MWL—
0MWM—
189.3DAGS—
189.3SSS—
4.1SSS—
189.3SAV—
189.3MCU—
174.3MCU—
160MWLS—
119.3SAP—

Properties (6)

additional_info
SC318715
custom_field_two
5
customer
LACSD
datetime
2017-01-20T09:38:09-08:00
documentation
PRO PIPE
is_lateral_inspection
false
