Wastewater/Activity/PacpInspection/1.0Jan 31, 2017, 07:01 AM
20 0117_20 0116_01302017_230149.mp4
- Date
- 01/30/2017
- W/O
- 618961
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00744
- PipeID
- P19040
- Time
- 11:01 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4225
- Sewer Name
- 20 TRUNK "C"
- City
- PALMDALE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_618961_TV20027_FEB2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 20 0117
- Downstream MH
- 20 0116
- Dir. of Survey
- Downstream
- Length Surveyed
- 383 ft.
- Total Length
- 383 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 380
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 152
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 532
Observation photos (3)

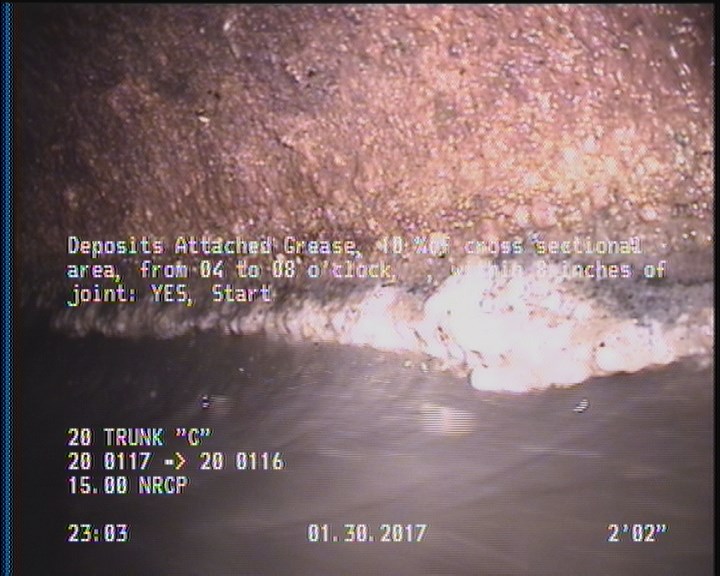

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

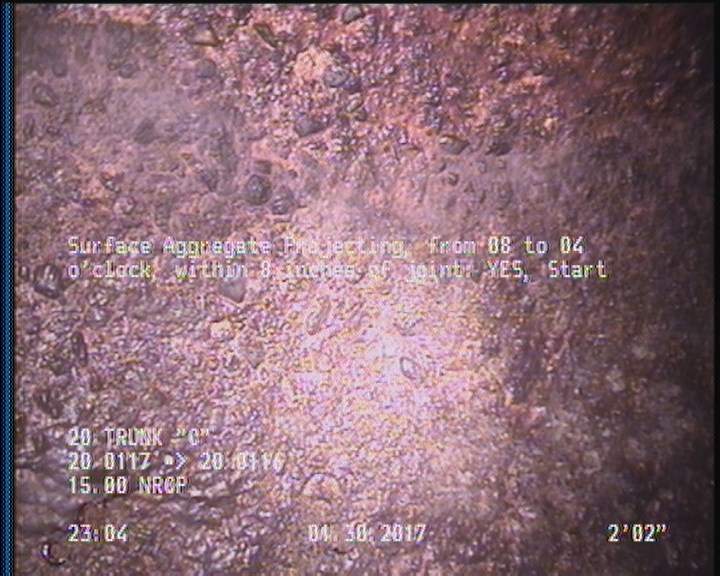

2.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

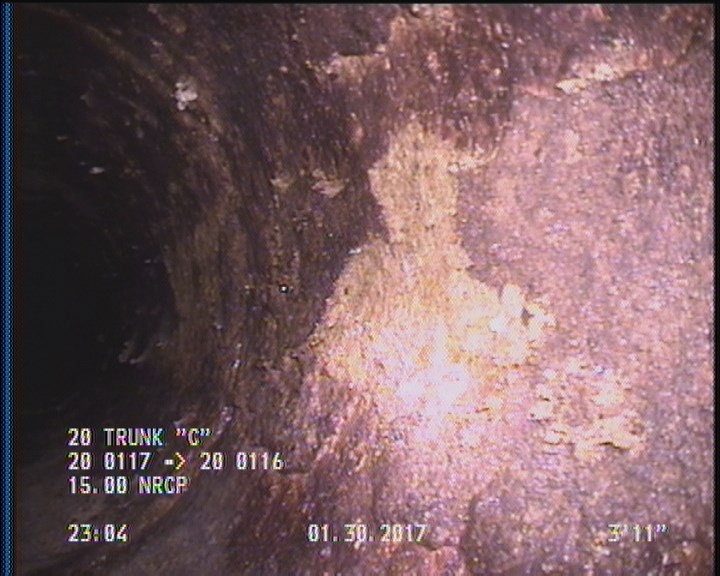

2.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 381.2 | DAGS | — |
| 358.2 | TFC | — |
| 162.5 | TFC | — |
| 158.1 | TFC | — |
| 2.2 | SAP | — |
| 2.2 | SSS | — |
| 255.9 | TFC | — |
| 51.7 | TFC | — |
| 0 | MWM | — |
| 381.2 | SAP | — |
| 2 | DAGS | — |
| 59.7 | TFC | — |
| 0 | MWL | — |
| 260 | TFC | — |
| 383 | AMH | 20 0116 |
| 0 | AMH | 20 0116 |
| 362 | TFC | — |
| 381.2 | SSS | — |
Properties (6)
- additional_info
- SC306727
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-01-30T23:01:31-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
