Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 31, 2017, 11:08 AM

  • 20 0126_20 0125 _01312017_031445.mp4

Date
01/31/2017
W/O
618961
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00744
PipeID
P19049
Time
3:08 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4225
Sewer Name
20 TRUNK "C"
City
PALMDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
01
Purpose
Routine Assessment
Project
WO_618961_TV20027_FEB2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
20 0125
Downstream MH
20 0126
Dir. of Survey
Upstream
Length Surveyed
127.1 ft.
Total Length
127.1 ft.
Structural Index
3
Structural Quick
3D2D
Structural Rating
125
O&M Index
2
O&M Quick
2D00
O&M Rating
50
Overall Index
2
Overall Quick
—
Overall Rating
175
Pipe schematic from manhole 20 0125 to 20 0126
MH: 20 0125MH: 20 0126upstream0 ft. AMH - Upstream Manhole, Survey Ends - 201 01260 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish0 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: NO, Finish0 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish46.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"50.3 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"123.6 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start123.6 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start123.6 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: NO, Start127.1 ft. AMH - Downstream Manhole, Survey Begins - 20 0125

Observation photos (3)

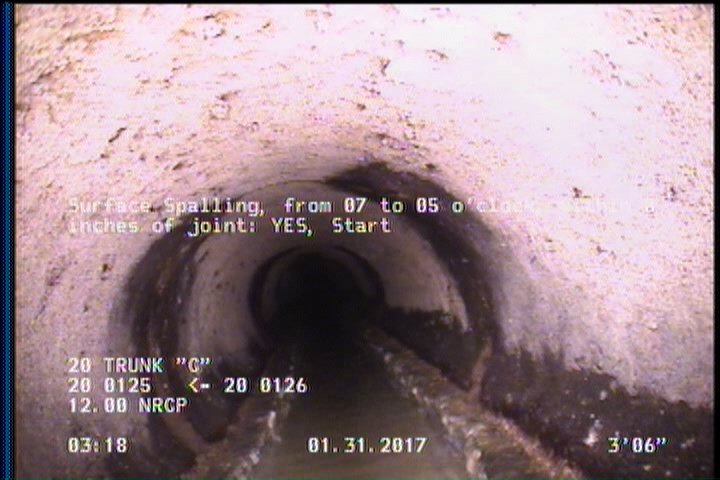

  • Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    3.5 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

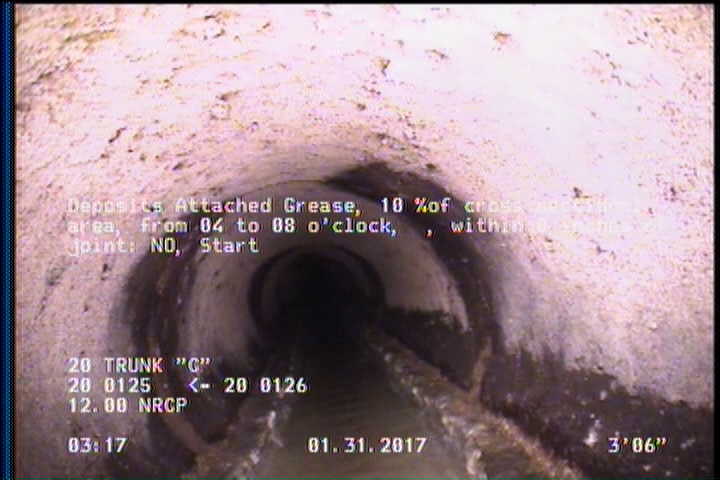

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    3.5 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

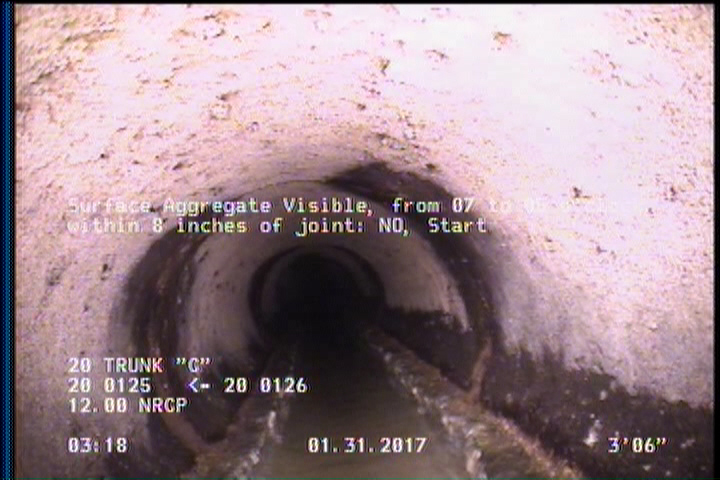

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: NO, Start

    3.5 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: NO, Start

All inspections of P19049Work order 618961

Observations (10)

DistanceCodeObservation
81TFC—
76.8TFC—
3.5SSS—
127.1AMH201 0126
127.1SSS—
0AMH20 0125
127.1SAV—
3.5DAGS—
127.1DAGS—
3.5SAV—

Properties (6)

additional_info
SC306727
custom_field_two
2
customer
LACSD
datetime
2017-01-31T03:08:26-08:00
documentation
PROPIPE
is_lateral_inspection
false
