Wastewater/Activity/PacpInspection/1.0Feb 16, 2017, 08:30 AM
B 0802_B 0801 _02162017_004301.mp4
- Date
- 02/16/2017
- W/O
- 618953
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00112
- PipeID
- P09269
- Time
- 12:30 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4243
- Sewer Name
- B JOINT OUTFALL B - UNIT 8J
- City
- ARCADIA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_618953_TV15059_FEB2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- B 0801
- Downstream MH
- B 0802
- Dir. of Survey
- Upstream
- Length Surveyed
- 38 ft.
- Total Length
- 38 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3127
- O&M Rating
- 17
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (2)

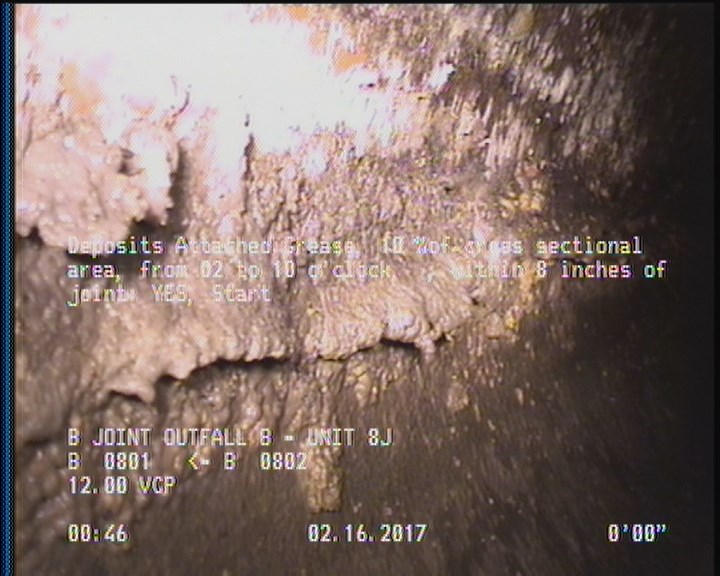

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

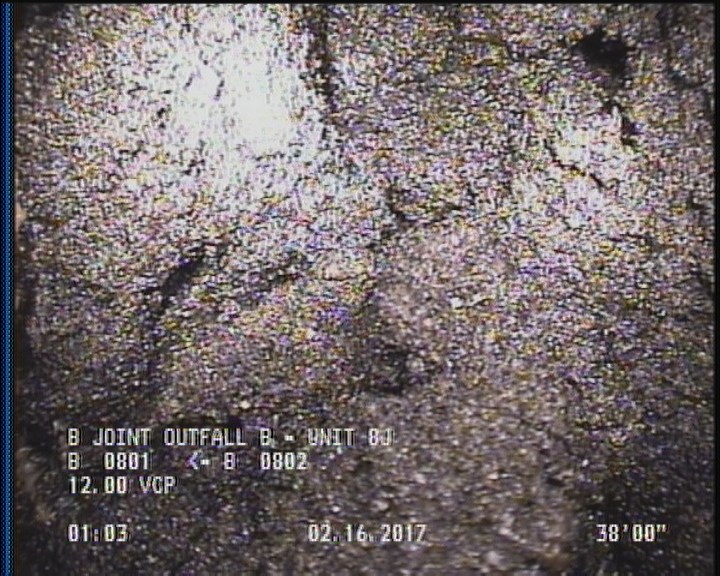

38 ft. - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - DEBRIS
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 2 O'CLOCK |
| 38 | DSZ | DEBRIS |
| 34 | TBA | — |
| 38 | MSA | DUE TO DEBRIS. NO REVERSAL. STOP LOG AT U/S MH. |
| 2 | DAGS | — |
| 0 | AMH | B 0801 |
| 38 | DAGS | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC306746
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-02-16T00:30:22-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
