Wastewater/Activity/PacpInspection/1.0Feb 17, 2017, 06:43 AM
05 1814A_05 1814 _16022017_224404.mpg
- Date
- 02/16/2017
- W/O
- 618877
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00466
- PipeID
- P07038
- Time
- 10:43 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4155
- Sewer Name
- 05 JANET LANE TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_618877_TV05053_FEB2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 1814A
- Downstream MH
- 05 1814
- Dir. of Survey
- Downstream
- Length Surveyed
- 56.5 ft.
- Total Length
- 56.5 ft.
- Structural Index
- 3
- Structural Quick
- 413A
- Structural Rating
- 34
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 35
Observation photos (2)

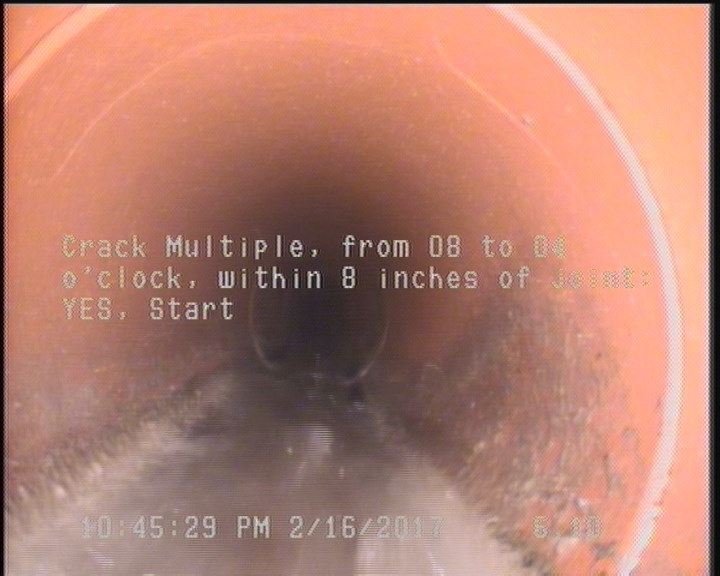

6.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

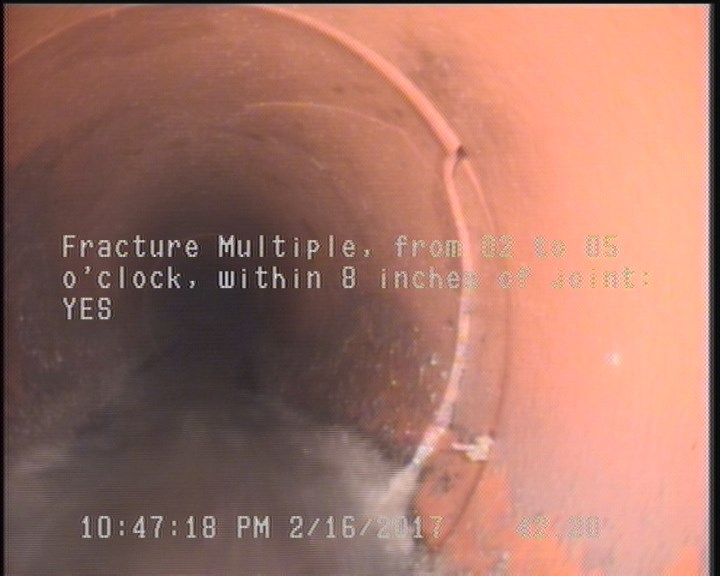

42.2 ft. - Fracture Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 1814A |
| 56.5 | AMH | 05 1814 |
| 0 | MWM | — |
| 42.2 | FM | — |
| 19.4 | RFJ | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 56.5 | CM | — |
| 6.1 | CM | — |
Properties (6)
- additional_info
- SC306861
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-16T22:43:16-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
