Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 17, 2017, 06:49 AM

  • 05 1814_05 1813 _16022017_224955.mpg

Date
02/16/2017
W/O
618877
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00466
PipeID
P07037
Time
10:49 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4155
Sewer Name
05 JANET LANE TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
31
Purpose
Routine Assessment
Project
WO_618877_TV05053_FEB2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 1814
Downstream MH
05 1813
Dir. of Survey
Downstream
Length Surveyed
239.4 ft.
Total Length
239.4 ft.
Structural Index
3
Structural Quick
413H
Structural Rating
145
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
147
Pipe schematic from manhole 05 1814 to 05 1813
MH: 05 1814MH: 05 1813downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 18140 ft. MWL - Water Level, 10 %of cross sectional area2.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start114.8 ft. RFJ - Roots Fine Joint, from 02 to 03 o'clock, within 8 inches of joint: YES131.7 ft. RFJ - Roots Fine Joint, from 01 to 03 o'clock, within 8 inches of joint: YES177.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES237.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish239.4 ft. AMH - Downstream Manhole, Survey Ends - 05 1813

Observation photos (2)

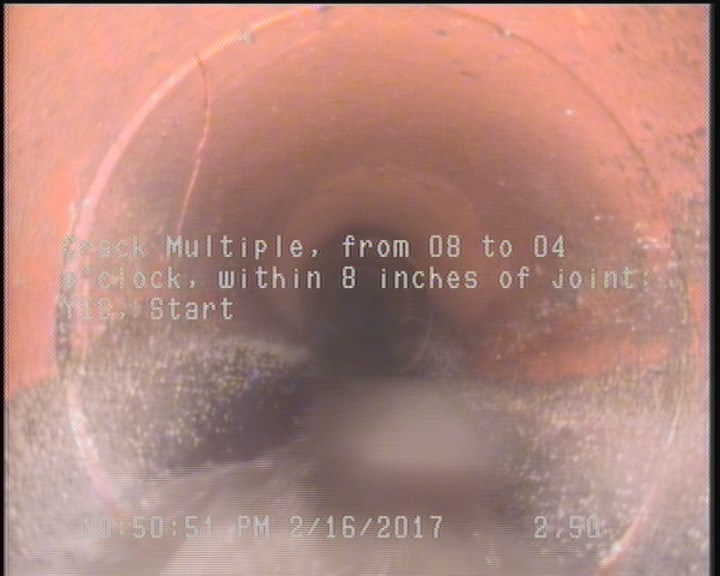

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

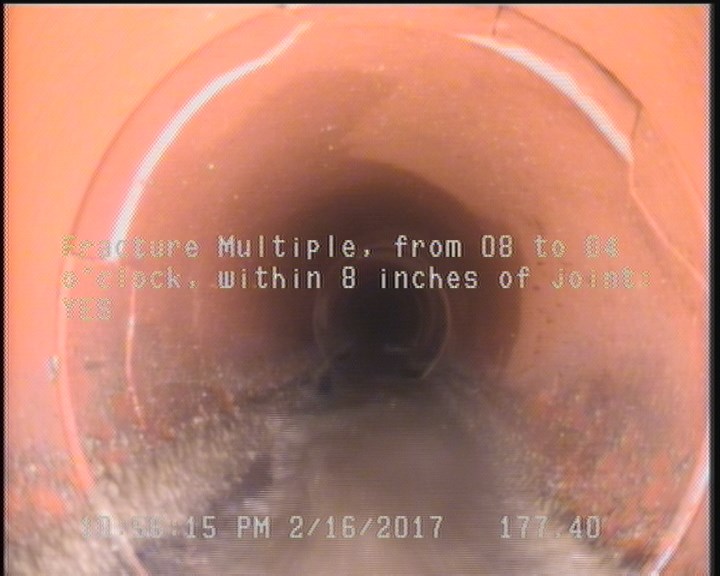

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    177.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P07037Work order 618877

Observations (9)

DistanceCodeObservation
239.4AMH05 1813
177.4FM—
0MWM—
0AMH05 1814
131.7RFJ—
237.5CM—
2.5CM—
114.8RFJ—
0MWL—

Properties (6)

additional_info
SC306861
custom_field_two
3
customer
LACSD
datetime
2017-02-16T22:49:20-08:00
documentation
PROPIPE
is_lateral_inspection
false
