Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 21, 2017, 12:15 PM

  • 05 1796_05 1795 _21022017_041532.mp4

Date
02/21/2017
W/O
618877
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00466
PipeID
P07018
Time
4:15 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4247
Sewer Name
05 JANET LANE TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
31
Purpose
Routine Assessment
Project
WO_618877_TV05053_FEB2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 1796
Downstream MH
05 1795
Dir. of Survey
Downstream
Length Surveyed
341.8 ft.
Total Length
341.8 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 05 1796 to 05 1795
MH: 05 1796MH: 05 1795downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 17960 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area12.1 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES24.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start71.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"338.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish339.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"341.8 ft. AMH - Downstream Manhole, Survey Ends - 05 1795

Observation photos (2)

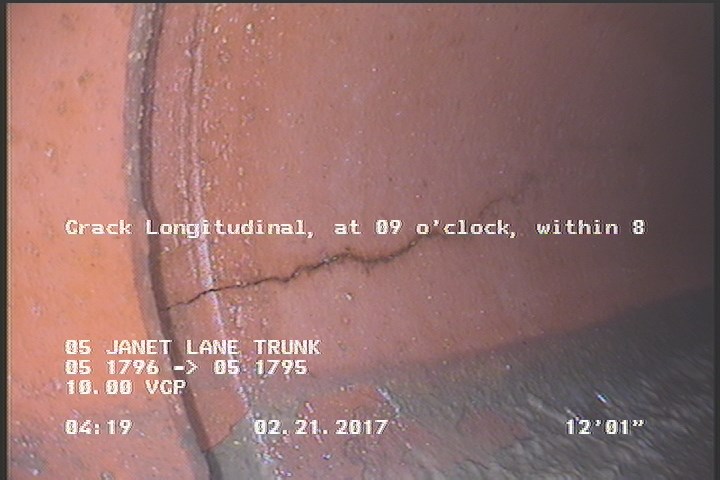

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    12.1 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

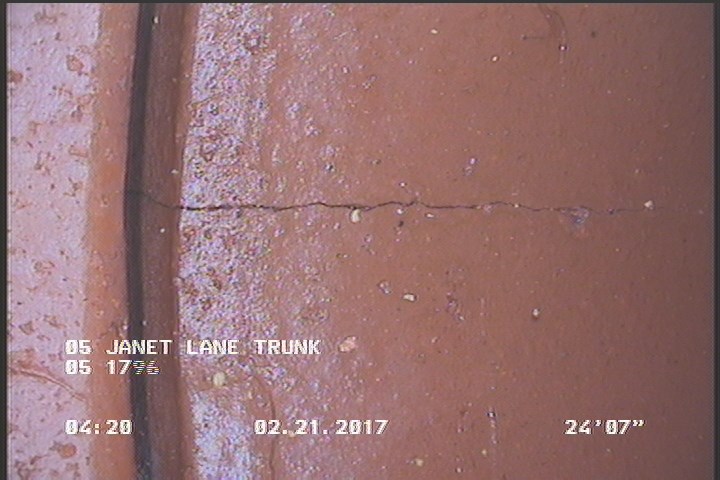

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    24.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P07018Work order 618877

Observations (9)

DistanceCodeObservation
12.1CL—
0AMH05 1796
339.6TF—
341.8AMH05 1795
0MWL—
71.8TFA—
338.8CM—
24.6CM—
0MWM—

Properties (6)

additional_info
SC306865
custom_field_two
3
customer
LACSD
datetime
2017-02-21T04:15:00-08:00
documentation
PROPIPE
is_lateral_inspection
false
