Wastewater/Activity/PacpInspection/1.0May 1, 2018, 04:52 AM
C 0296_C 0295 _30042018_215844.mp4
- Date
- 04/30/2018
- W/O
- 696324
- Weather
- Dry
- Operator/Surveyor
- B FUGATE
- Sewer ID
- Z00134
- PipeID
- P09756
- Time
- 9:52 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5548
- Sewer Name
- C JOINT OUTFALL C - UNIT 6E
- City
- CERRITOS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_696324_TV19035_APR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- C 0296
- Downstream MH
- C 0295
- Dir. of Survey
- Downstream
- Length Surveyed
- 92.9 ft.
- Total Length
- 92.9 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

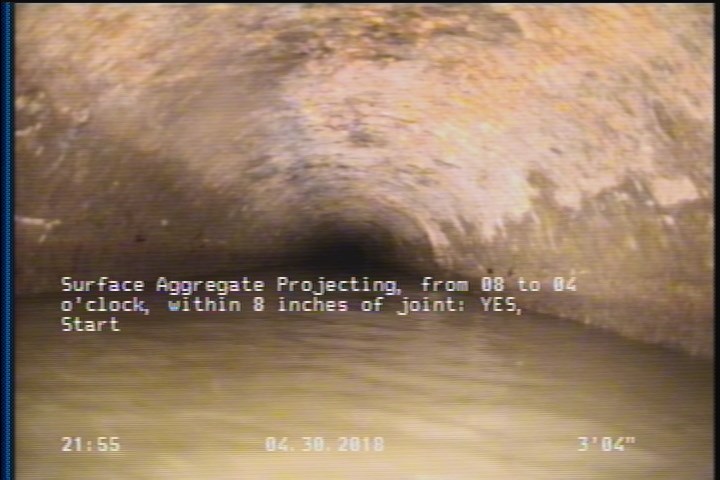

3.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

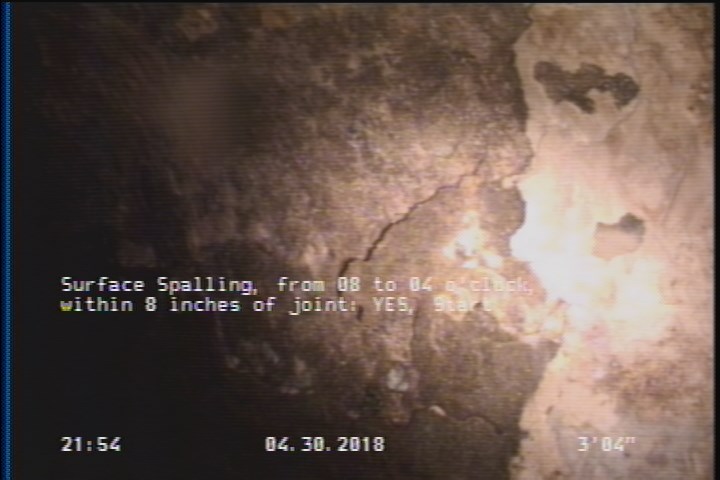

3.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 3.3 | SAP | — |
| 0 | MWM | — |
| 92.9 | MGO | CAPPED CONNECTION AT 9 O' CLOCK AT |
| 0 | AMH | C 0296 |
| 92.9 | SSS | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 3.3 | MGO | MAG COAT |
| 0 | MWL | — |
| 3.3 | SSS | — |
| 92.9 | AMH | C 0295 |
| 92.9 | SAP | — |
| 38.5 | TFC | — |
| 46.5 | TFC | — |
Properties (6)
- additional_info
- SC359304
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-30T21:52:42-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
