Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 1, 2018, 09:10 AM

  • C 0299_C 0298 _01052018_023818.mp4

Date
05/01/2018
W/O
696324
Weather
Dry
Operator/Surveyor
B FUGATE
Sewer ID
Z00134
PipeID
P09759
Time
2:10 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5548
Sewer Name
C JOINT OUTFALL C - UNIT 6E
City
LAKEWOOD
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
04
Purpose
Routine Assessment
Project
WO_696324_TV19035_APR2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
C 0298
Downstream MH
C 0299
Dir. of Survey
Upstream
Length Surveyed
711 ft.
Total Length
711 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole C 0298 to C 0299
MH: C 0298MH: C 0299upstream0 ft. AMH - Upstream Manhole, Survey Ends - C 02990 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish20.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"28.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"75.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"84 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"123.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"131.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"171.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"179.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"219.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"227.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"275.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"283.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"321.9 ft. ID - Infiltration Dripper, from 12 to 01 o'clock, within 8 inches of joint: YES323.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"331.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"348.1 ft. MGO - General Observation - ABANDONED MH359.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"366.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"398.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"407.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"439.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"447.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"486.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"495.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"535.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"543.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"583.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"591 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"639.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"644.9 ft. MGO - General Observation - ABANDONED MH646.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"687.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"695.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"705.5 ft. MGO - General Observation - MAG COAT705.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start708.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start711 ft. MWM - Water Mark, 35 %of cross sectional area711 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH711 ft. MWL - Water Level, 15 %of cross sectional area711 ft. AMH - Downstream Manhole, Survey Begins - C 0298

Observation photos (3)

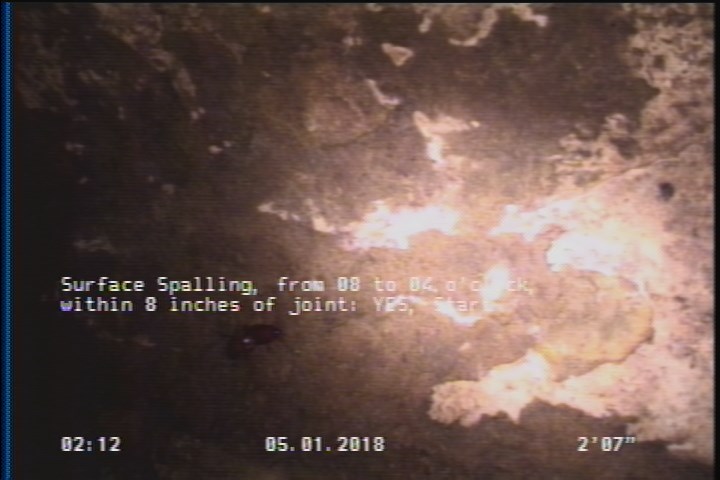

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

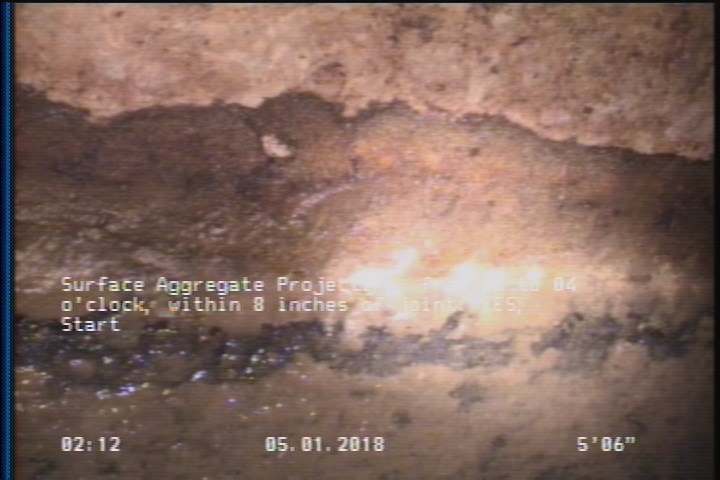

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

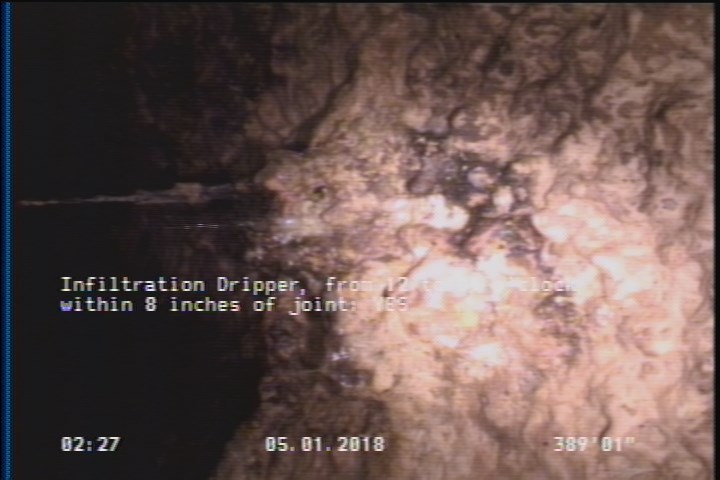

  • Infiltration Dripper, from 12 to 01 o'clock, within 8 inches of joint: YES

    389.1 ft. - Infiltration Dripper, from 12 to 01 o'clock, within 8 inches of joint: YES

All inspections of P09759Work order 696324

Observations (43)

DistanceCodeObservation
2.6SSS—
682.9TFC—
0MWM—
351.7TFC—
175.5TFC—
0MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
711AMHC 0299
64.1TFC—
387.1TFC—
690.9TFC—
15.7TFC—
531.2TFC—
711SAP—
587.2TFC—
362.9MGOABANDONED MH
23.7TFC—
224.2TFC—
263.8TFC—
127.8TFC—
71.9TFC—
344.2TFC—
627TFC—
379.1TFC—
120TFC—
483.3TFC—
0MWL—
271.8TFC—
215.6TFC—
435.3TFC—
312.1TFC—
303.9TFC—
167.5TFC—
427.4TFC—
579.4TFC—
710.9SSS—
66.1MGOABANDONED MH
539.4TFC—
491.2TFC—
5.5MGOMAG COAT
0AMHC 0298
5.5SAP—
389.1ID—
635.6TFC—

Properties (6)

additional_info
SC359304
custom_field_two
3
customer
LACSD
datetime
2018-05-01T02:10:12-07:00
documentation
PROPIPE
is_lateral_inspection
false
