Wastewater/Activity/PacpInspection/1.0May 4, 2018, 06:16 AM
F 0253_F 0252 _03052018_233326.mp4
- Date
- 05/03/2018
- W/O
- 695763
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00036
- PipeID
- P10176
- Time
- 11:16 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5657
- Sewer Name
- F JOINT OUTFALL F - UNIT 3A RELIEF
- City
- CERRITOS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Routine Assessment
- Project
- WO_695763_TV02230_APR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 66 in.
- Width
- 66 in.
- Upstream MH
- F 0253
- Downstream MH
- F 0252
- Dir. of Survey
- Downstream
- Length Surveyed
- 525.4 ft.
- Total Length
- 525.4 ft.
- Structural Index
- 4
- Structural Quick
- 5S3T
- Structural Rating
- 823
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 823
Observation photos (4)

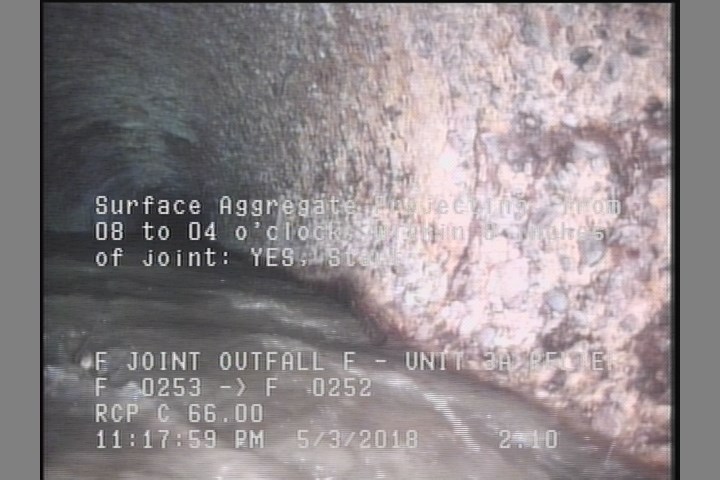

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

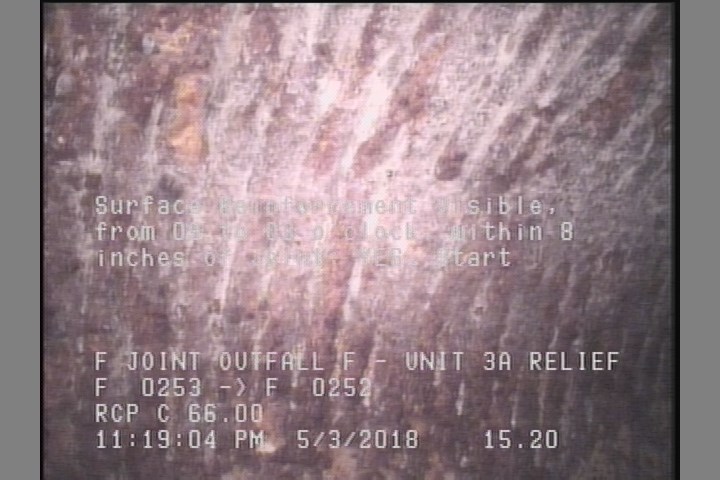

15.3 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

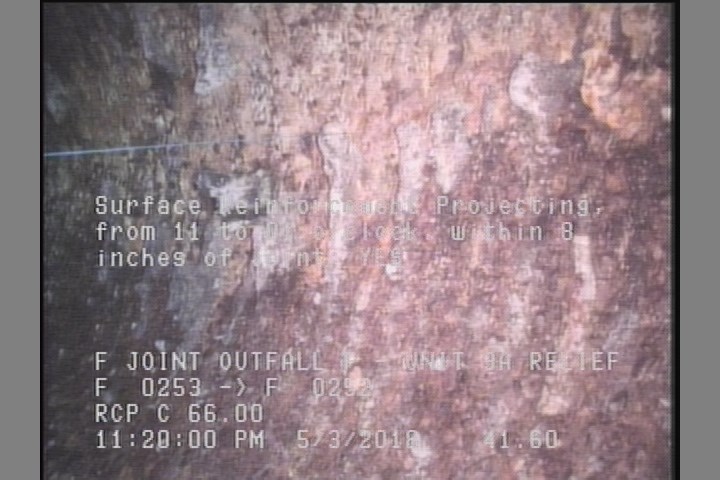

41.6 ft. - Surface Reinforcement Projecting, from 11 to 01 o'clock, within 8 inches of joint: YES

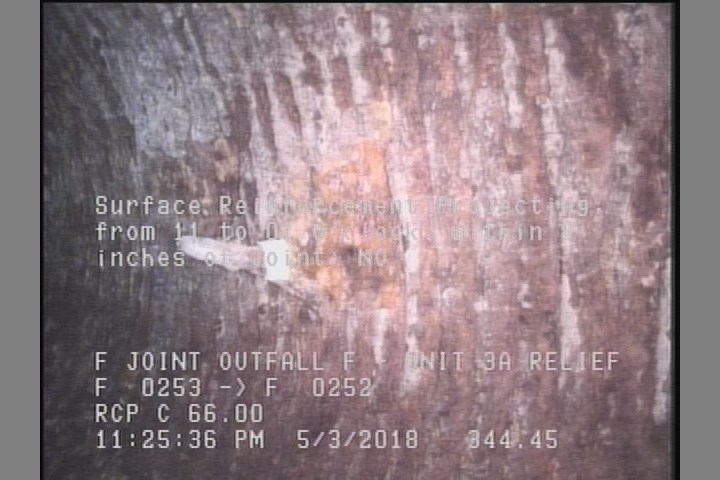

344.5 ft. - Surface Reinforcement Projecting, from 11 to 01 o'clock, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.1 | SAP | — |
| 0 | MWL | — |
| 520 | SRV | — |
| 0 | AMH | F 0253 |
| 525.4 | AMH | F 0252 ZOOMED IN |
| 344.5 | SRP | — |
| 41.6 | SRP | — |
| 15.3 | SRV | — |
| 520 | SAP | — |
Properties (7)
- additional_info
- SC359312
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2018-05-03T23:16:16-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 27333
