Wastewater/Activity/PacpInspection/1.0May 2, 2018, 05:02 AM
01 1203_01 1202_01052018_230039.mp4
- Date
- 05/01/2018
- W/O
- 695748
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00226
- PipeID
- P02114
- Time
- 10:02 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5550
- Sewer Name
- 01 WILCOX AVENUE TRUNK, EXTENSION #1
- City
- CUDAHY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_695748_TV01206_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 1203
- Downstream MH
- 01 1202
- Dir. of Survey
- Downstream
- Length Surveyed
- 197.3 ft.
- Total Length
- 197.3 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

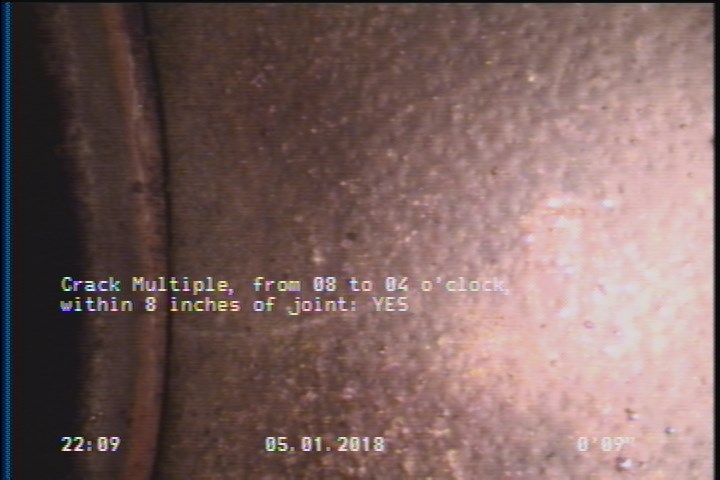

0.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

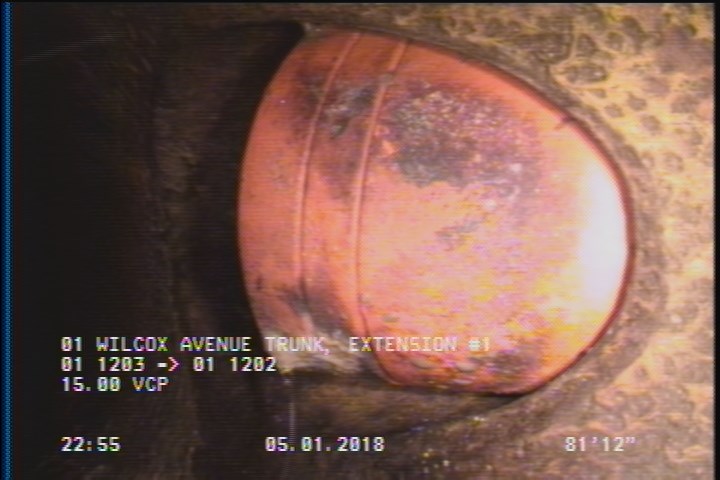

82 ft. - Tap Factory Made Intruding, at 02 o'clock, -, -, within 8 inches of joint: NO, 6", 1"

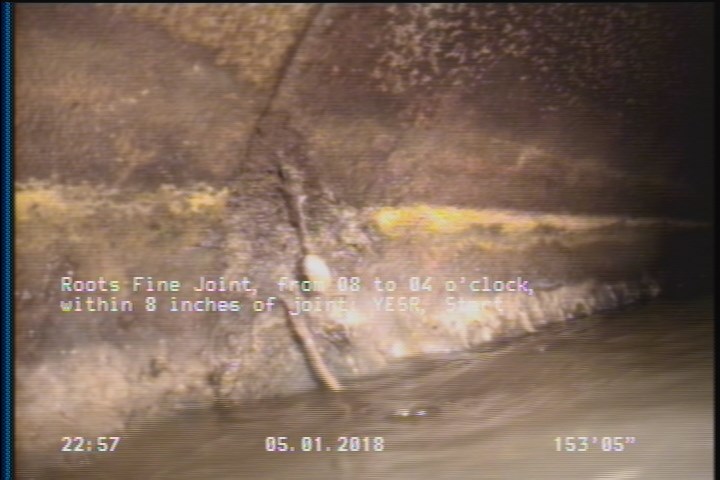

153.4 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 22.5 | TFC | — |
| 189.4 | RFJ | — |
| 197.3 | AMH | 01 1202 |
| 158.4 | TFC | — |
| 0 | MWL | — |
| 116.2 | TF | — |
| 0 | MWM | — |
| 194.4 | CM | — |
| 82 | TFI | — |
| 0 | AMH | 01 1203 |
| 153.4 | RFJ | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 197.3 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 0.8 | CM | — |
Properties (6)
- additional_info
- SC359306
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-01T22:02:20-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
