Wastewater/Activity/PacpInspection/1.0Apr 25, 2018, 07:23 AM
15 0886_15 0885 _25042018_002907.mp4
- Date
- 04/25/2018
- W/O
- 695662
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00599
- PipeID
- P12679
- Time
- 12:23 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5576
- Sewer Name
- 15 CALIFORNIA AVENUE TRUNK
- City
- MONROVIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_695662_TV15182_APR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0886
- Downstream MH
- 15 0885
- Dir. of Survey
- Downstream
- Length Surveyed
- 32.8 ft.
- Total Length
- 32.8 ft.
- Structural Index
- 3
- Structural Quick
- 3500
- Structural Rating
- 15
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (2)

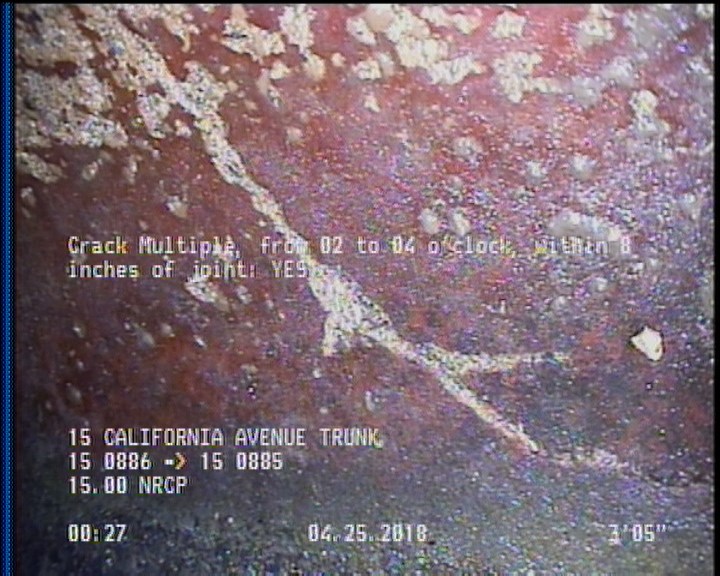

3.4 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

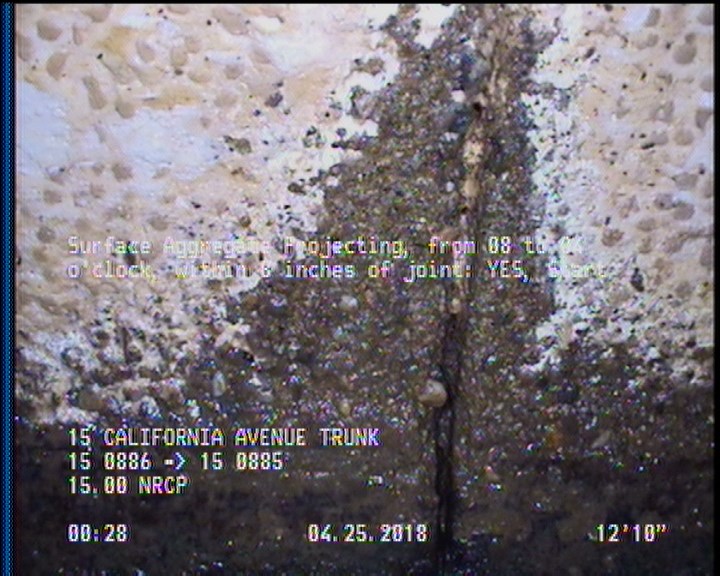

12.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 3.4 | MGO | MAG COATING THROUGHOUT 60% |
| 3.4 | CM | — |
| 0 | AMH | 15 0886 |
| 0 | MWL | — |
| 0 | MWM | — |
| 32.8 | SAP | — |
| 32.8 | AMH | 15 0885 |
| 12.9 | SAP | — |
Properties (6)
- additional_info
- SC358536
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-25T00:23:49-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
