Wastewater/Activity/PacpInspection/1.0Jul 21, 2017, 08:37 AM
02 1224_02 1223_21072017_013723.mp4
- Date
- 07/21/2017
- W/O
- 646745
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00303
- PipeID
- P03727
- Time
- 1:37 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4756
- Sewer Name
- 02 SANTA ANITA OUTFALL TRUNK
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_646745_TV02120_JUL2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 1223
- Downstream MH
- 02 1224
- Dir. of Survey
- Upstream
- Length Surveyed
- 438.1 ft.
- Total Length
- 438.2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

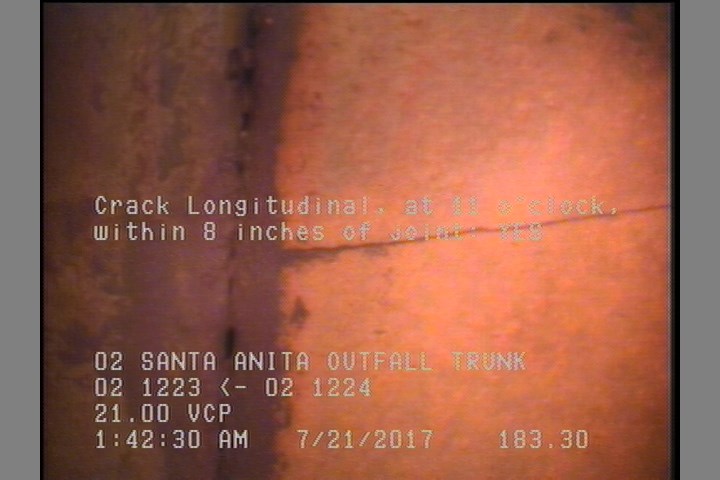

183.3 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

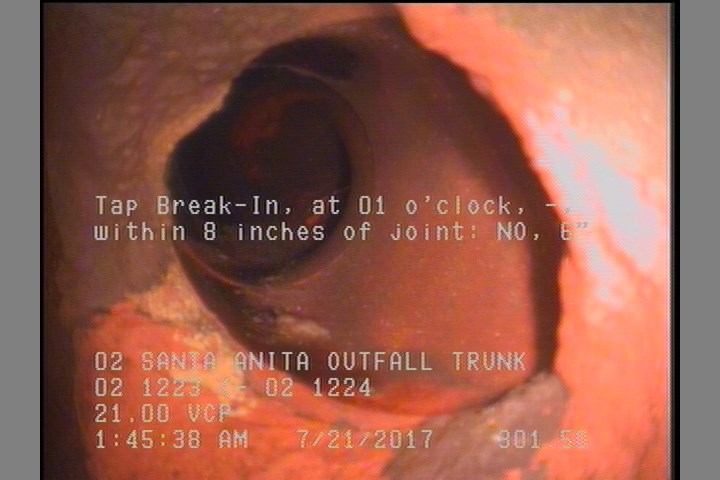

301.5 ft. - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 438.2 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 183.3 | CL | — |
| 0 | MWM | — |
| 301.5 | TB | — |
| 438.2 | AMH | 02 1224 |
| 0 | AMH | 02 1223 |
Properties (6)
- additional_info
- SC345516
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-21T01:37:18-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
