Wastewater/Activity/PacpInspection/1.0Aug 12, 2019, 11:30 AM
F 0099_F 0097_08122019_044749.mp4
- Date
- 08/12/2019
- W/O
- 782314
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00041
- PipeID
- P10229
- Time
- 4:30 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6743
- Sewer Name
- F JOINT OUTFALL F - UNIT 5
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782314_TV02408_AUG2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- F 0099
- Downstream MH
- F 0097
- Dir. of Survey
- Downstream
- Length Surveyed
- 273.1 ft.
- Total Length
- 273.1 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 312J
- O&M Rating
- 111
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 116
Observation photos (3)

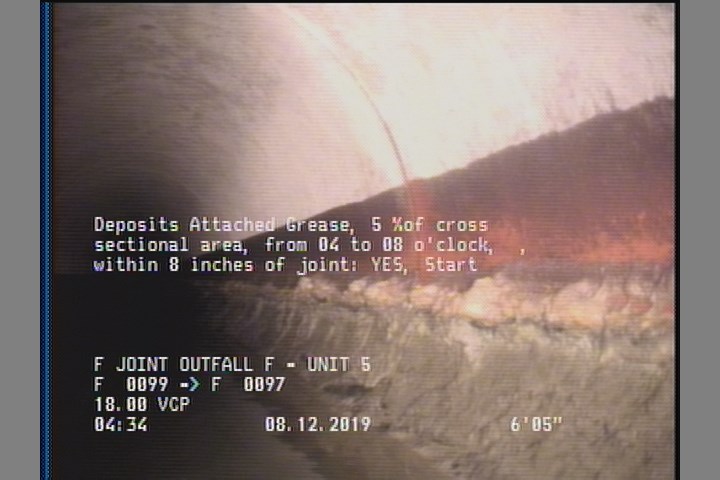

6.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

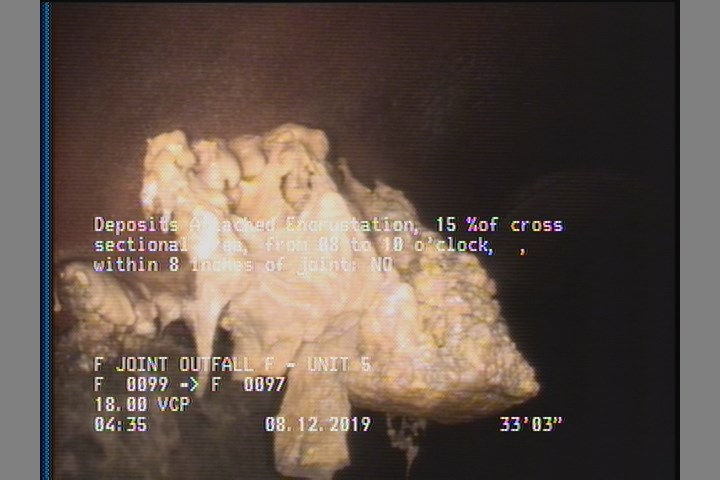

33.3 ft. - Deposits Attached Encrustation, 15 %of cross sectional area, from 08 to 10 o'clock, , within 8 inches of joint: NO

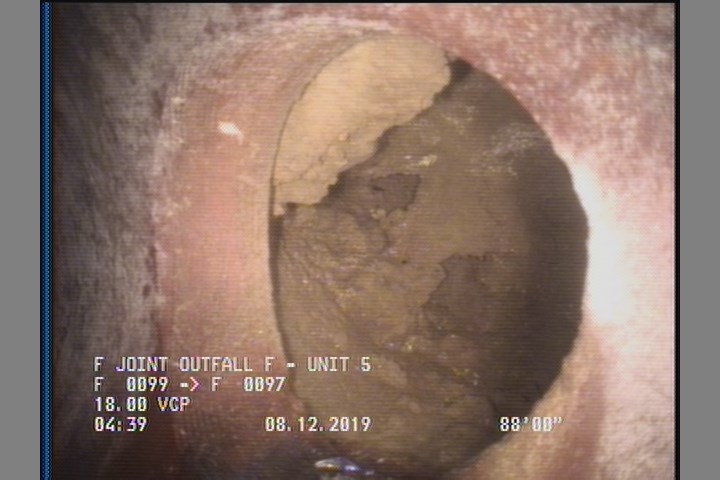

88 ft. - Hole Void Visible, from 02 to 04 o'clock, within 8 inches of joint: NO - DEFECTIVE TAP
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 196.1 | TFC | — |
| 0 | MWM | — |
| 88 | TFD | TAP SEPARATED |
| 138 | TFC | — |
| 26.1 | TBA | — |
| 273.1 | AMH | F 0097 |
| 34.6 | TFA | — |
| 88 | HVV | DEFECTIVE TAP |
| 33.3 | DAE | — |
| 6.5 | DAGS | — |
| 220.4 | TFC | — |
| 272.1 | DAGS | — |
| 0 | AMH | F 0099 |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC378242
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-08-12T04:30:25-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
