Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 26, 2019, 09:57 AM

  • 05 1398_05 1397 _08262019_032712.mp4

Date
08/26/2019
W/O
782304
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00487
PipeID
P06619
Time
2:57 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6813
Sewer Name
05 MONETA TRUNK
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
18
Purpose
Routine Assessment
Project
RFIR_WO_782304_TV05336_AUG2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 1397
Downstream MH
05 1398
Dir. of Survey
Upstream
Length Surveyed
326 ft.
Total Length
326 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 1397 to 05 1398
MH: 05 1397MH: 05 1398upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 13980.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED0.4 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish63.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"94.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"153.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"202.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"237.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"289.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"320.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start320.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start326 ft. MWM - Water Mark, 40 %of cross sectional area326 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK326 ft. AMH - Downstream Manhole, Survey Begins - 05 1397326 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK326 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (2)

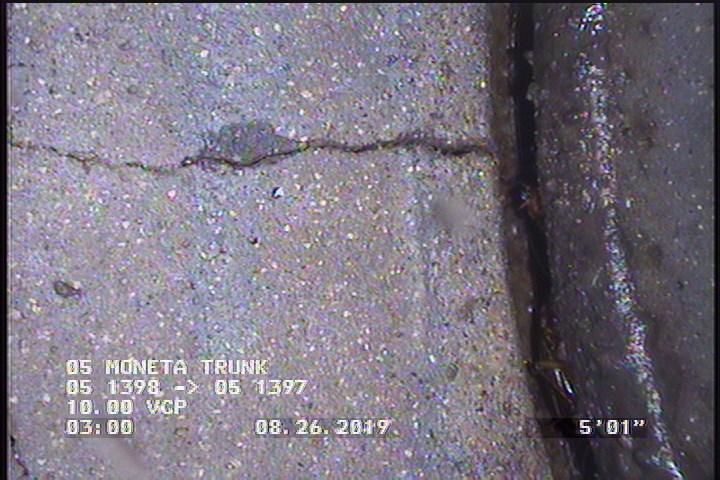

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

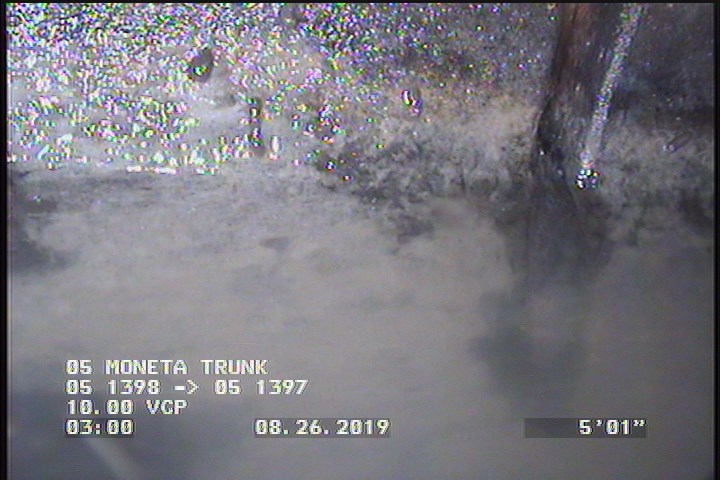

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    5.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P06619Work order 782304

Observations (18)

DistanceCodeObservation
36.7TFC—
262.1TFC—
325.9MGOCONNECTION AT MH 9 O'CLOCK CAPPED
123.7TF—
326AMH05 1398
172.5TFC—
324FM—
0MWM—
88.9TFC—
231.2TF—
5.1FM—
5.1DAGS—
0MGOCONNECTION AT MH 9 O'CLOCK
0AMH05 1397
0MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
325.6MGOCONNECTION AT MH 3 O'CLOCK
324DAGS—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-08-26T02:57:18-07:00
documentation
PRO PIPE
is_lateral_inspection
false
