Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 23, 2019, 10:04 AM

  • 05 1391_05 1390 _08232019_033111.mp4

Date
08/23/2019
W/O
782304
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00487
PipeID
P06611
Time
3:04 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6812
Sewer Name
05 MONETA TRUNK
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_782304_TV05336_AUG2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 1391
Downstream MH
05 1390
Dir. of Survey
Downstream
Length Surveyed
390.5 ft.
Total Length
390.5 ft.
Structural Index
4
Structural Quick
4N00
Structural Rating
304
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
3
Overall Quick
—
Overall Rating
452
Pipe schematic from manhole 05 1391 to 05 1390
MH: 05 1391MH: 05 1390downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 13910 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED3 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start15.5 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish15.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start15.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start37.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"88.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"133.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"184.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"240.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"288.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"337.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"386.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish386.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish390.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK390.5 ft. AMH - Downstream Manhole, Survey Ends - 05 1390

Observation photos (3)

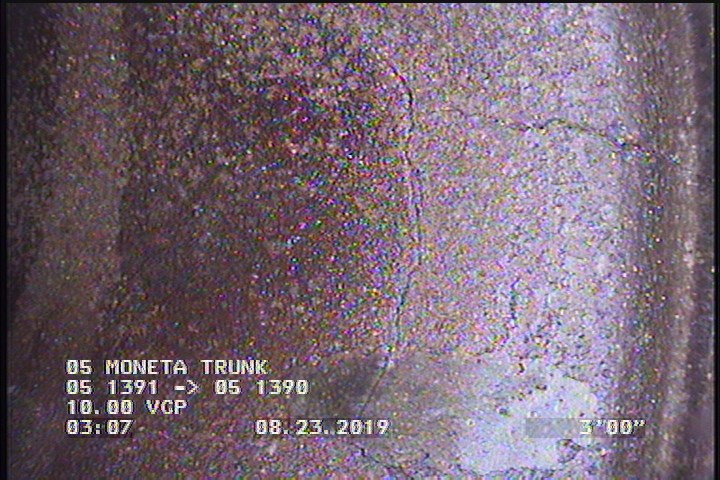

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

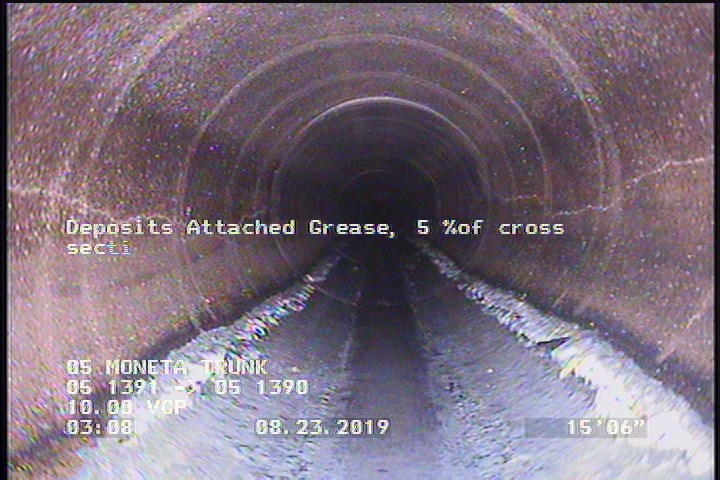

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    15.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

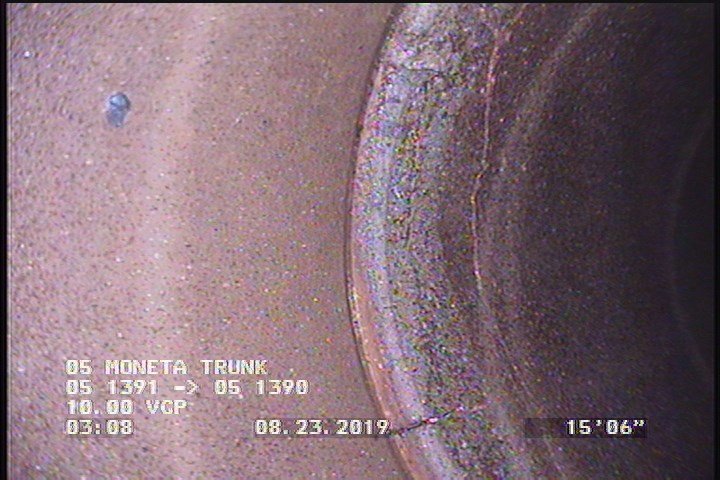

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    15.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06611Work order 782304

Observations (20)

DistanceCodeObservation
0MWL—
15.5FM—
184.7TF—
386.6FM—
3FM—
288.2TFC—
0MWM—
133.2TFC—
15.5DAGS—
386.6DAGS—
240.4TFC—
37.3TFC—
15.5FM—
337.9TFC—
390.1MGOCONNECTION AT MH 9 O'CLOCK
0AMH02 1391
390.5AMH05 1390
88.1TF—
0MGOCONNECTION AT MH 9 O'CLOCK
0MGOCONNECTION AT MH 3 O'CLOCK CAPPED

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-08-23T03:04:48-07:00
documentation
PRO PIPE
is_lateral_inspection
false
