Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 19, 2019, 09:47 AM

  • C 0683_C 0682 _08192019_024733.mp4

Date
08/19/2019
W/O
782266
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00126
PipeID
P24966
Time
2:47 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6866
Sewer Name
C JOINT OUTFALL C - UNIT 4A
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Routine Assessment
Project
RFIR_WO_782266_TV03150_AUG2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
C 0683
Downstream MH
C 0682
Dir. of Survey
Downstream
Length Surveyed
86.3 ft.
Total Length
86.3 ft.
Structural Index
3
Structural Quick
4B3B
Structural Rating
111
O&M Index
2
O&M Quick
2F00
O&M Rating
66
Overall Index
3
Overall Quick
—
Overall Rating
177
Pipe schematic from manhole C 0683 to C 0682
MH: C 0683MH: C 0682downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 06830 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start5.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.9 ft. CM - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES9.8 ft. FM - Fracture Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES14 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start82.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish84.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish86.3 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish86.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK86.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish86.3 ft. AMH - Downstream Manhole, Survey Ends - C 0682

Observation photos (5)

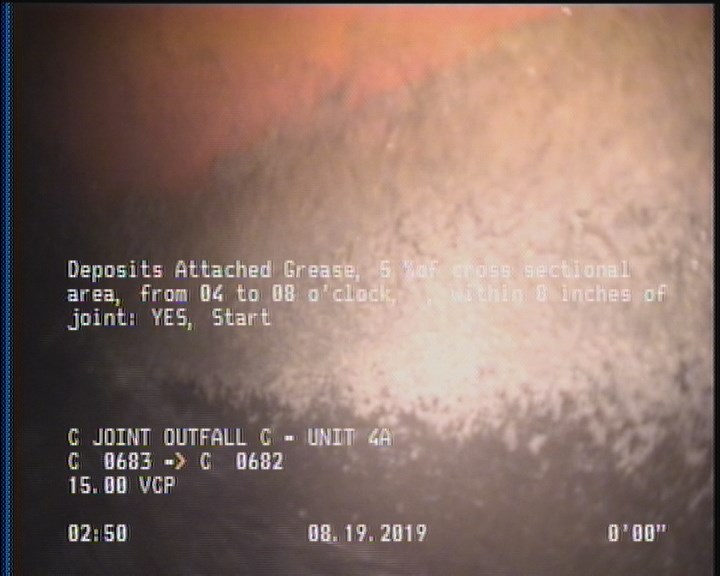

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

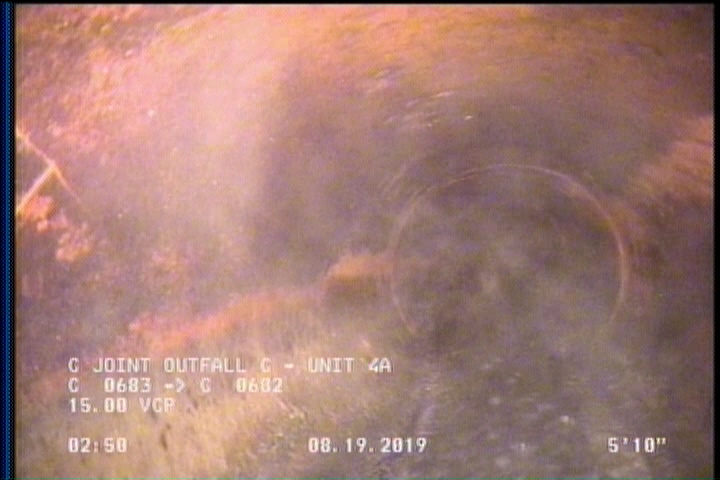

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

    5.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

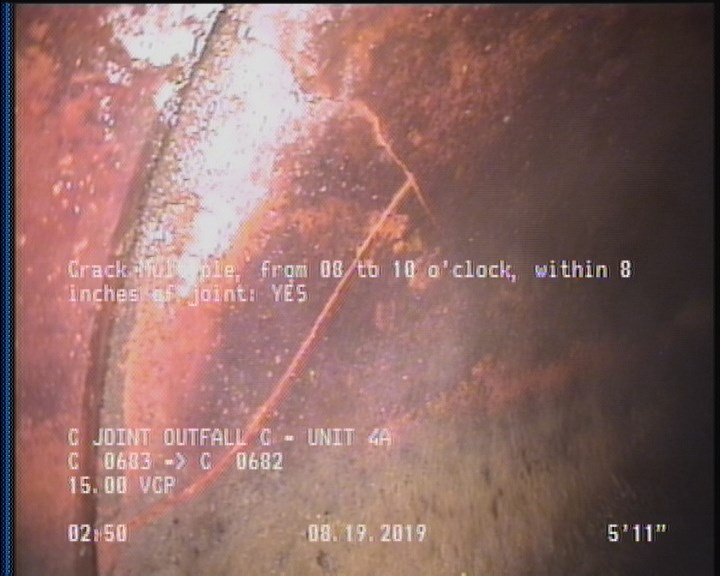

  • Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

    5.9 ft. - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

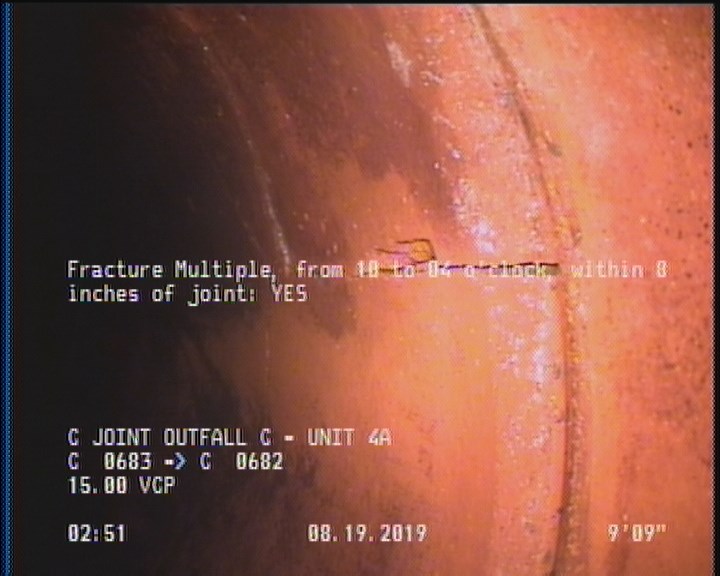

  • Fracture Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

    9.8 ft. - Fracture Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

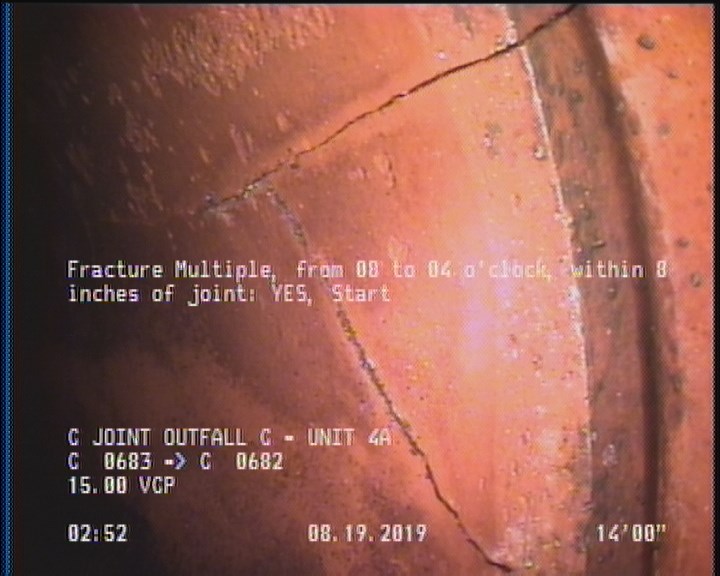

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    14 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P24966Work order 782266

Observations (16)

DistanceCodeObservation
14FM—
0MWL—
86.3DAE—
82.8FM—
9.8FM—
0MWM—
84.7DAGS—
86.3MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0AMHC 0683
86.3CM—
5.9CM—
5.1DAE—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2DAGS—
86.3AMHC 0682
5.1CM—

Properties (6)

additional_info
SC378336
custom_field_two
2
customer
LACSD
datetime
2019-08-19T02:47:30-07:00
documentation
PRO PIPE
is_lateral_inspection
false
