Wastewater/Activity/PacpInspection/1.0Aug 19, 2019, 10:43 AM
01 1199_01 1198_08192019_035816.mp4
- Date
- 08/19/2019
- W/O
- 782260
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00226
- PipeID
- P02109
- Time
- 3:43 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6867
- Sewer Name
- 01 WILCOX AVENUE TRUNK, EXTENSION #1
- City
- SOUTH GATE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- RFIR_WO_782260_TV01250_AUG2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 1198
- Downstream MH
- 01 1199
- Dir. of Survey
- Upstream
- Length Surveyed
- 307.3 ft.
- Total Length
- 307.3 ft.
- Structural Index
- 2
- Structural Quick
- 322I
- Structural Rating
- 104
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 122
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 226
Observation photos (4)

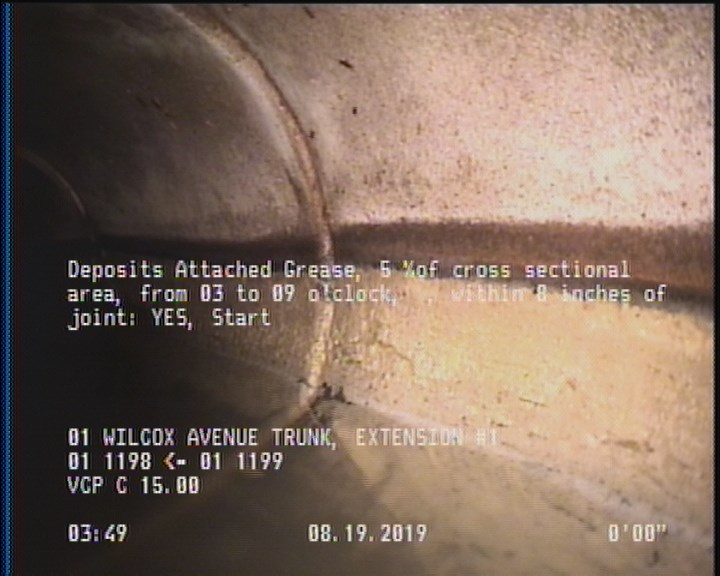

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

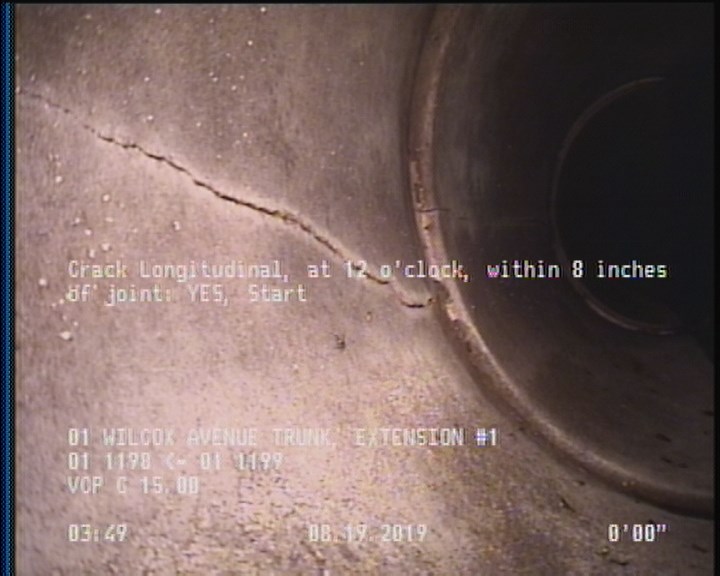

18 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

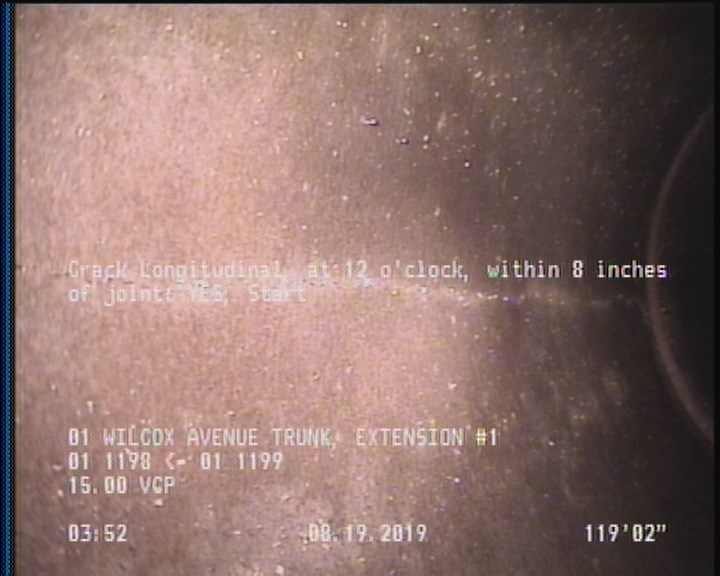

119.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
307.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 2 | FL | — |
| 307.3 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
| 18 | CL | — |
| 0 | MWL | — |
| 11 | FL | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 305.6 | CL | — |
| 305.6 | DAGS | — |
| 307.3 | MGO | COCKROACHES IN MANHOLE |
| 119.2 | CL | — |
| 0 | MWM | — |
| 307.3 | AMH | 01 1199 |
| 77.4 | CL | — |
| 0 | AMH | 01 1198 |
Properties (6)
- additional_info
- SC378337
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-08-19T03:43:29-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
