Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 26, 2019, 11:17 AM

  • 05 1519_05 1518 _08262019_041827.mp4

Date
08/26/2019
W/O
782223
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00528
PipeID
P06741
Time
4:17 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6814
Sewer Name
05 TORRANCE EXTENSION TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
29
Purpose
Routine Assessment
Project
RFIR_WO_782223_TV05309_AUG2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 1519
Downstream MH
05 1518
Dir. of Survey
Downstream
Length Surveyed
294.8 ft.
Total Length
294.8 ft.
Structural Index
4
Structural Quick
4I00
Structural Rating
204
O&M Index
2
O&M Quick
342V
O&M Rating
244
Overall Index
3
Overall Quick
—
Overall Rating
448
Pipe schematic from manhole 05 1519 to 05 1518
MH: 05 1519MH: 05 1518downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 15192 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start11.8 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR, Start19.1 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"21.2 ft. FM - Fracture Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES32.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"32.4 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR, Finish43 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start80.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"131.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"183.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 8"292.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish292.9 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish294 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish294.8 ft. AMH - Downstream Manhole, Survey Ends - 05 1518294.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED294.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (6)

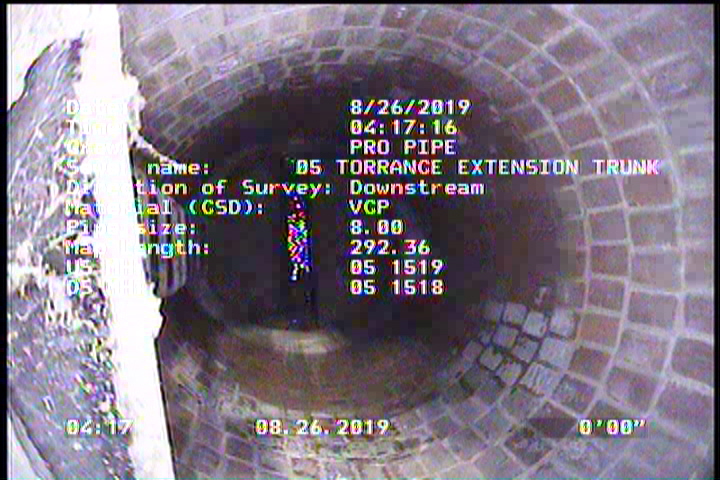

  • Upstream Manhole, Survey Begins - 05 1519

    0 ft. - Upstream Manhole, Survey Begins - 05 1519

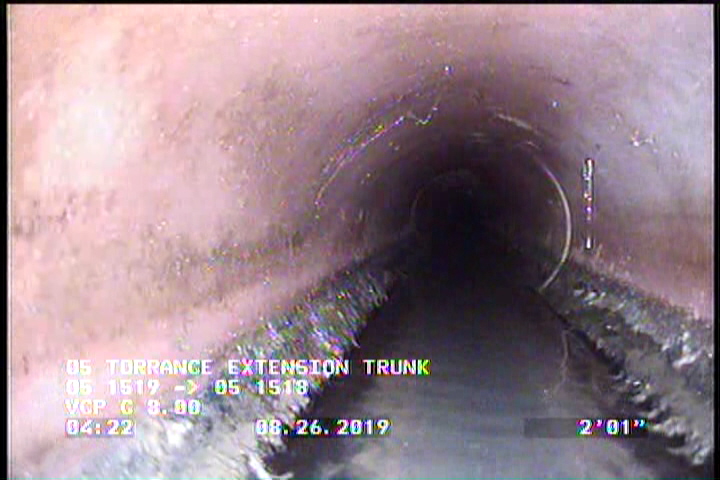

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR, Start

    11.8 ft. - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR, Start

  • Fracture Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

    21.2 ft. - Fracture Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    43 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P06741Work order 782223

Observations (20)

DistanceCodeObservation
19.1TB—
0MWL—
294.8AMH05 1518
292.9FM—
43FM—
294DAE—
183.7TF—
294.8MGOCONNECTION AT MH 3 O'CLOCK CAPPED
292.9DAGS—
294.8MGOCONNECTION AT MH 3 O'CLOCK
2DAE—
2DAGS—
32.4TF—
32.4RMJ—
0MWM—
131.7TF—
0AMH05 1519
21.2FM—
11.8RMJ—
80.2TF—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-08-26T04:17:16-07:00
documentation
PRO PIPE
is_lateral_inspection
false
