Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 20, 2019, 07:23 PM

  • H 0353A_H 0353 _20082019_133818.mp4

Date
08/20/2019
W/O
777227
Weather
Dry
Operator/Surveyor
J. VARGAS
Sewer ID
Z00176
PipeID
P10803
Time
12:23 PM
Certificate
U-209-8149
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6788
Sewer Name
H JOINT OUTFALL H - UNIT 4 RELIEF
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Routine Assessment
Project
RFIR_WO_777227_TV02375_JUL2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Width
63 in.
Upstream MH
H 0353A
Downstream MH
H 0353
Dir. of Survey
Downstream
Length Surveyed
450.1 ft.
Total Length
450.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole H 0353A to H 0353
MH: H 0353AMH: H 0353downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - H 0353A0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. MWL - Water Level, 45 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COAT THROUGHOUT2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. VC - Vermin Cockroach55.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"116.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"151.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"448 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish448.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish450.1 ft. AMH - Downstream Manhole, Survey Ends - H 0353

Observation photos (3)

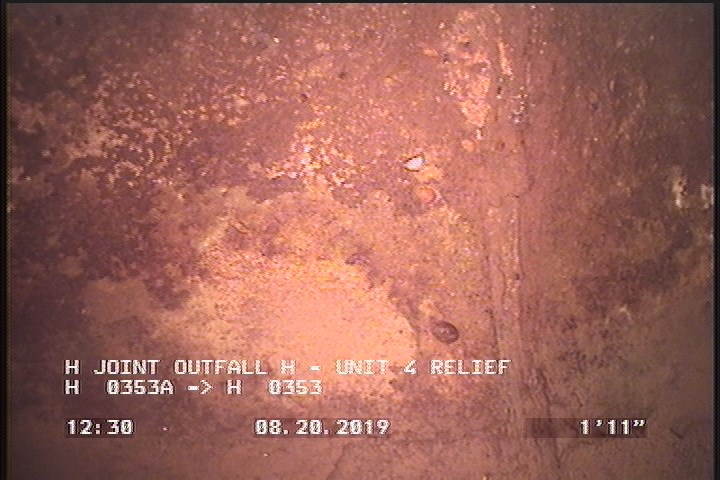

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

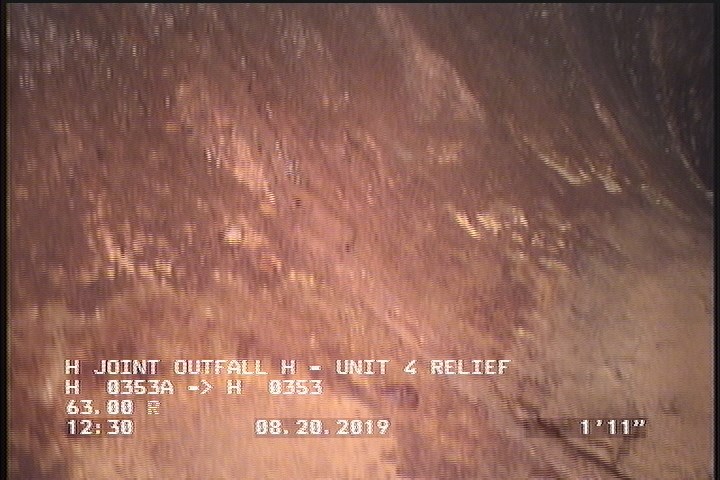

  • General Observation - MAG COAT THROUGHOUT

    2 ft. - General Observation - MAG COAT THROUGHOUT

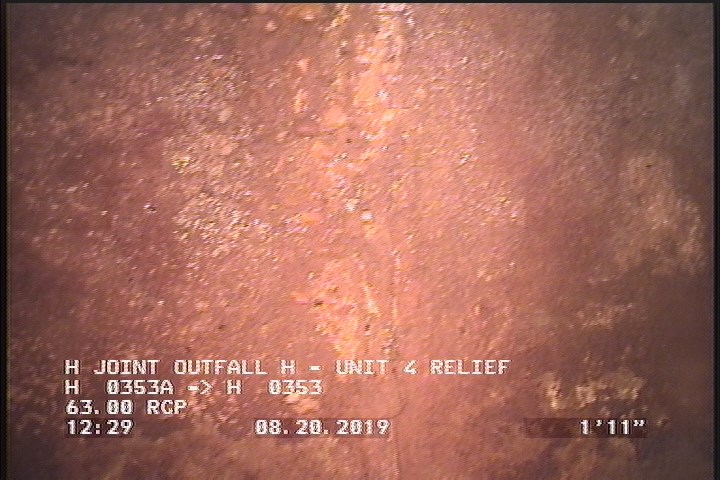

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P10803Work order 777227

Observations (14)

DistanceCodeObservation
0MGOCONNECTION AT MH 3 O'CLOCK
116.2TFA—
2SSS—
448SSS—
151.4TFA—
0AMHH 0353A
450.1AMHH 0353
2MGOMAG COAT THROUGHOUT
55.2TFA—
2SAP—
0MWM—
448.2SAP—
0MWL—
2VC—

Properties (6)

additional_info
SC378294
custom_field_two
3
customer
LACSD
datetime
2019-08-20T12:23:50-07:00
documentation
PRO PIPE
is_lateral_inspection
false
