Wastewater/Activity/PacpInspection/1.0Jul 31, 2019, 06:33 AM
32 0064_32 0063 _30072019_234206.mp4
- Date
- 07/30/2019
- W/O
- 776996
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P19828
- Time
- 11:33 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6650
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- RFIR_WO_776996_TV32060_JUL2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0064
- Downstream MH
- 32 0063
- Dir. of Survey
- Downstream
- Length Surveyed
- 178.6 ft.
- Total Length
- 178.6 ft.
- Structural Index
- 3
- Structural Quick
- 3900
- Structural Rating
- 27
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 70
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 97
Observation photos (4)

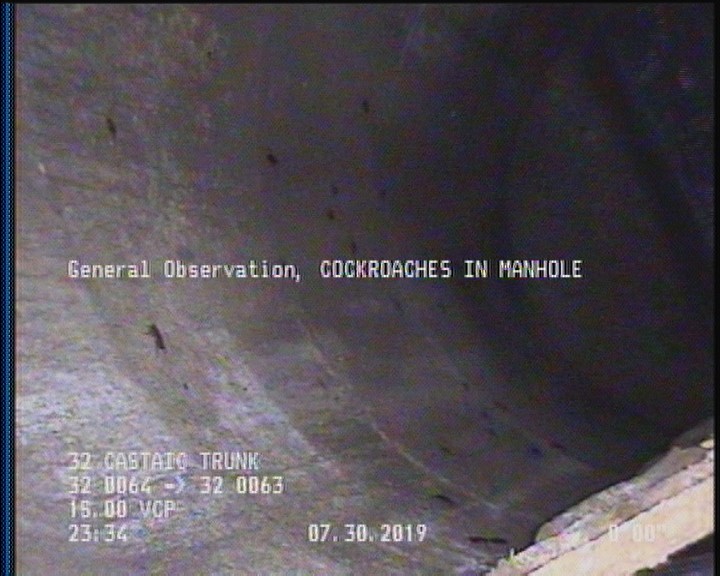

0 ft. - General Observation - COCKROACHES IN MANHOLE

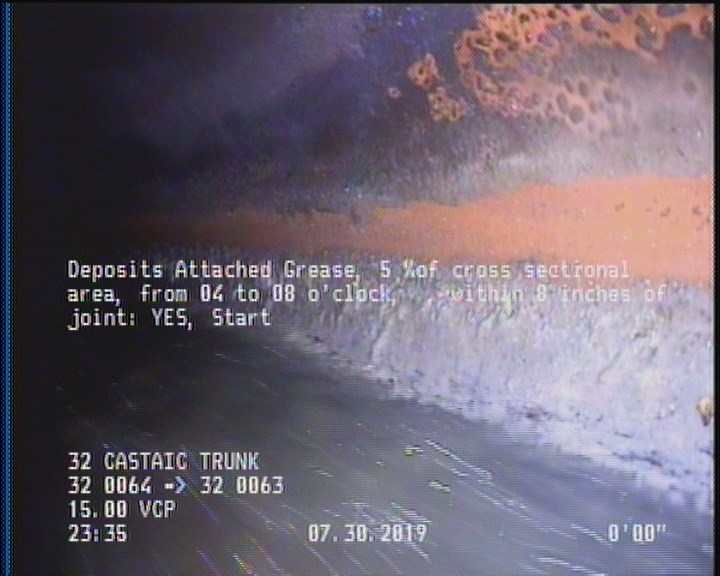

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

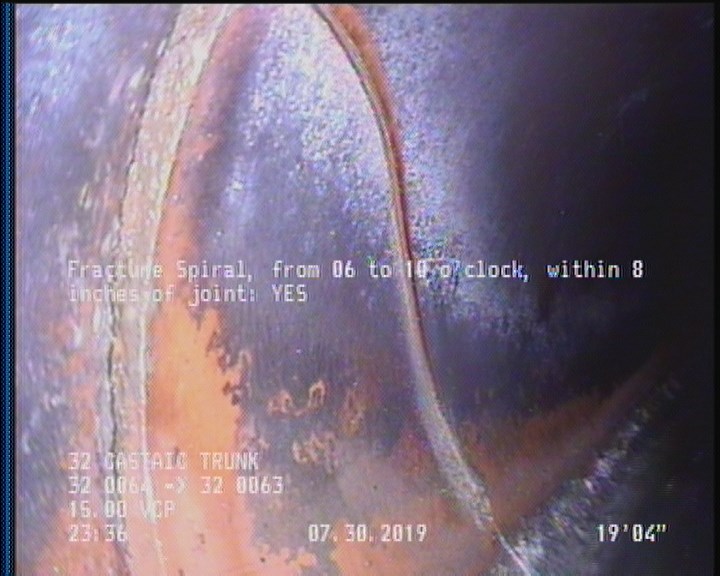

19.3 ft. - Fracture Spiral, from 06 to 10 o'clock, within 8 inches of joint: YES

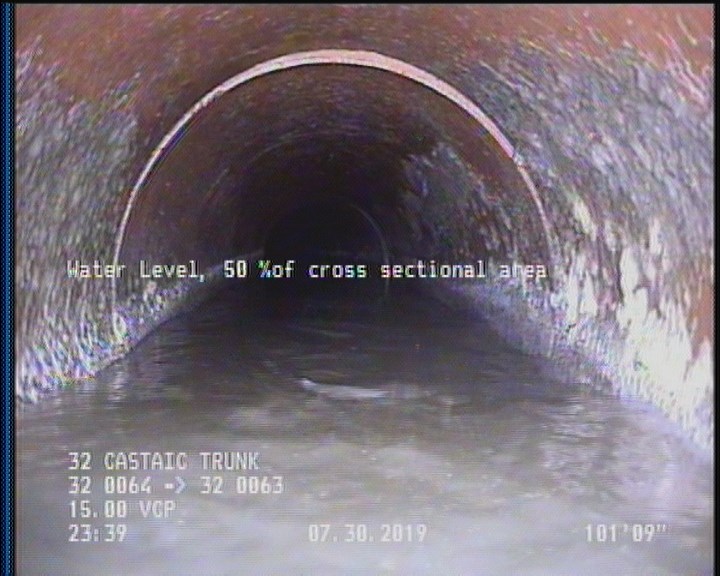

101.8 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 176.6 | DAGS | — |
| 19.3 | FS | — |
| 178.6 | AMH | 32 0063 |
| 178 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 32 0064 |
| 0 | MWM | — |
| 101.8 | MWLS | — |
| 142.9 | MWLS | — |
| 2 | DAGS | — |
Properties (7)
- additional_info
- SC378317
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-07-30T23:33:18-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 27282
