Wastewater/Activity/PacpInspection/1.0Jul 30, 2019, 09:23 AM
29 0036_C 0622 _30072019_024005.mp4
- Date
- 07/30/2019
- W/O
- 776967
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00020
- PipeID
- P23816
- Time
- 2:23 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6725
- Sewer Name
- 29 EASTSIDE INTERCEPTOR TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- RFIR_WO_776967_TV29109_JUL2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 29 0036
- Downstream MH
- C 0622
- Dir. of Survey
- Downstream
- Length Surveyed
- 255.1 ft.
- Total Length
- 255.1 ft.
- Structural Index
- 2
- Structural Quick
- 3321
- Structural Rating
- 12
- O&M Index
- 2
- O&M Quick
- 2I11
- O&M Rating
- 101
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 113
Observation photos (4)

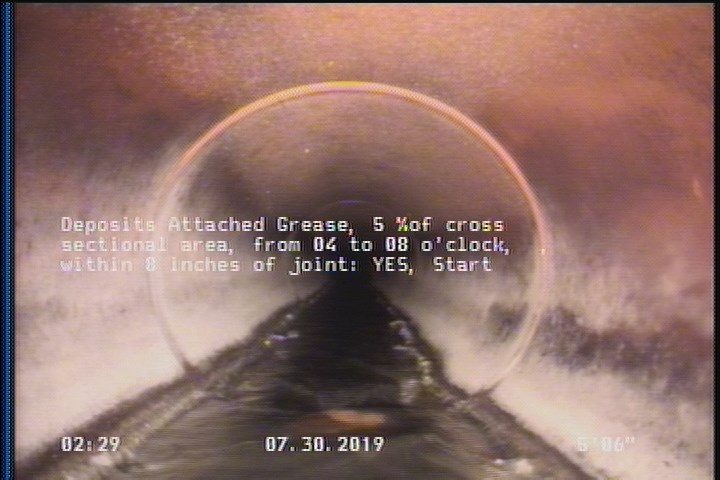

5.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

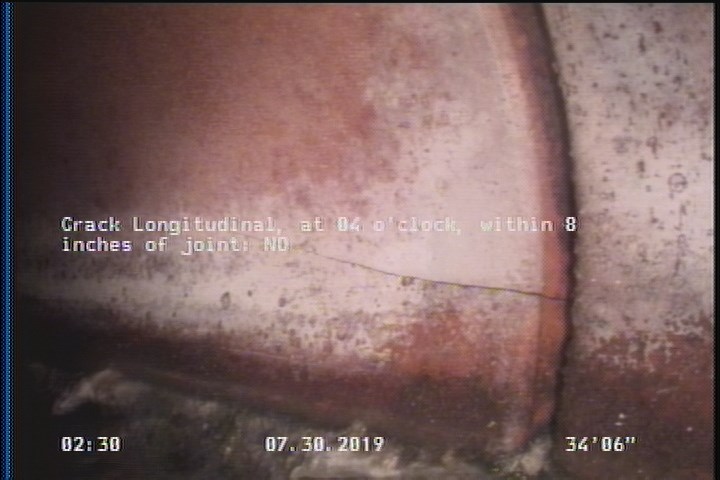

34.5 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

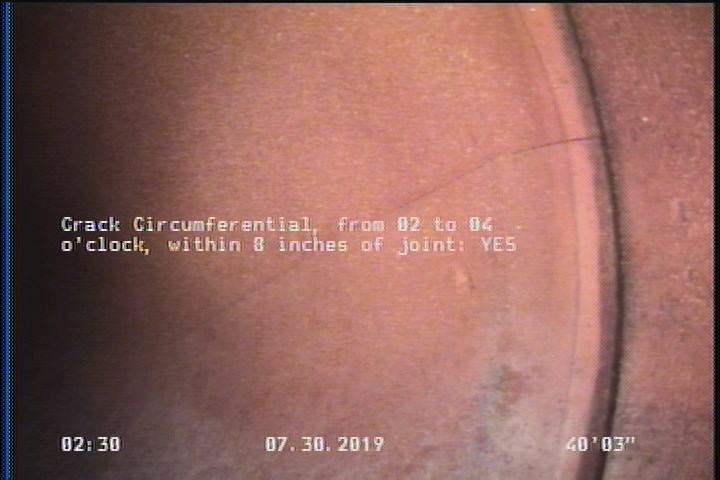

40.2 ft. - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

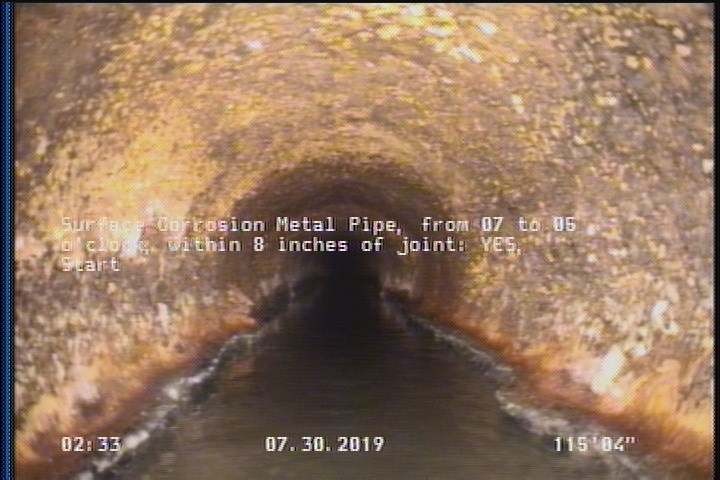

115.3 ft. - Surface Corrosion Metal Pipe, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 255.1 | AMH | C 0622 |
| 115.3 | SCP | — |
| 34.5 | CL | — |
| 0 | MWL | — |
| 40.2 | CC | — |
| 210 | LLD | — |
| 128 | MMC | VCP |
| 5.5 | DAGS | — |
| 0 | AMH | 29 0036 |
| 115.3 | MMC | CAS |
| 128 | SCP | — |
| 254.8 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC378224
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-07-30T02:23:51-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
