Wastewater/Activity/PacpInspection/1.0Jul 31, 2019, 07:15 AM
32 0035_32 0034 _31072019_003452.mp4
- Date
- 07/31/2019
- W/O
- 776943
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P19799
- Time
- 12:15 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6649
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_776943_TV32047_JUL2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0035
- Downstream MH
- 32 0034
- Dir. of Survey
- Downstream
- Length Surveyed
- 443.4 ft.
- Total Length
- 443.4 ft.
- Structural Index
- 4
- Structural Quick
- 4331
- Structural Rating
- 15
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 176
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 191
Observation photos (3)

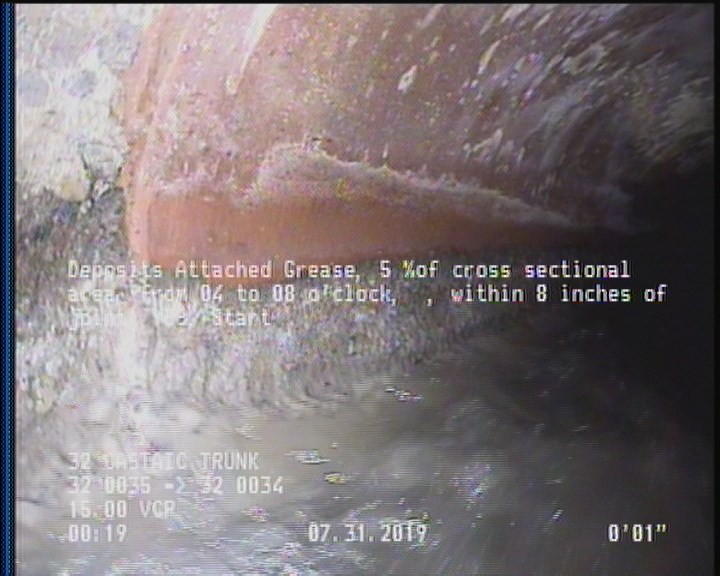

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

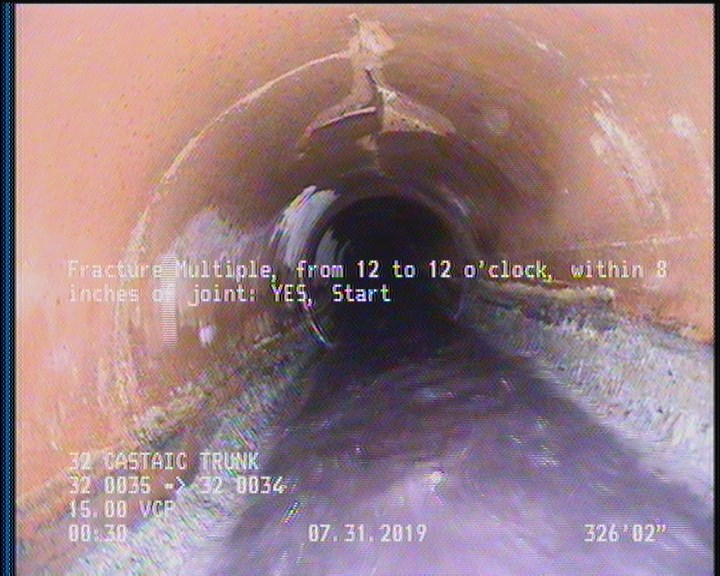

326.2 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

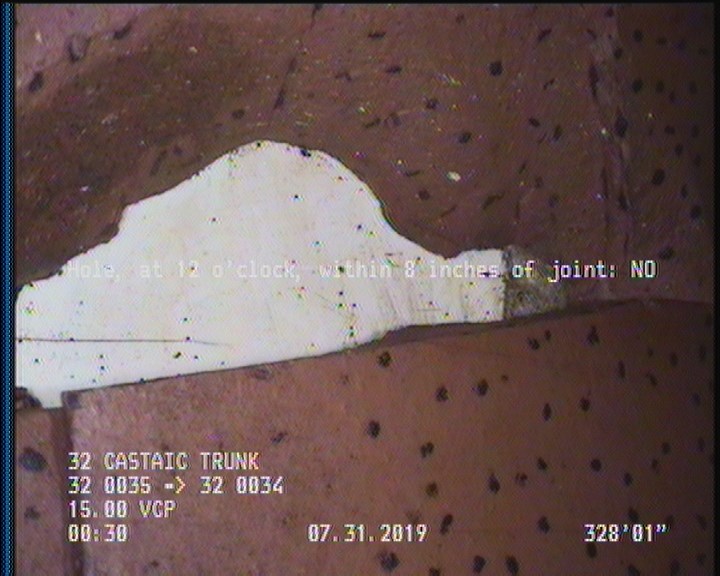

328.1 ft. - Hole, at 12 o'clock, within 8 inches of joint: NO
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 326.2 | FM | — |
| 328.1 | H | — |
| 443.4 | AMH | 32 0034 |
| 2 | DAGS | — |
| 342.1 | FM | — |
| 0 | AMH | 32 0035 |
| 0 | MWM | — |
| 0 | MWL | — |
| 441.3 | DAGS | — |
Properties (7)
- additional_info
- SC378316
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-07-31T00:15:49-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 27282
