Wastewater/Activity/PacpInspection/1.0Oct 8, 2019, 04:56 PM
H 0406_H 0405_1082019_105637.mp4
- Date
- 10/08/2019
- W/O
- 0792740
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00177
- PipeID
- P10840
- Time
- 9:56 AM
- Certificate
- U-115-06022628
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G8097
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A
- City
- WHITTIER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 02
- Purpose
- Capital Improvement Program Assesment
- Project
- 20191008MI_JOINT_OUTFALL_H_UNIT_5A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Upstream MH
- H 0406
- Downstream MH
- H 0405
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 5131
- Structural Rating
- 10
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 19
Observation photos (3)

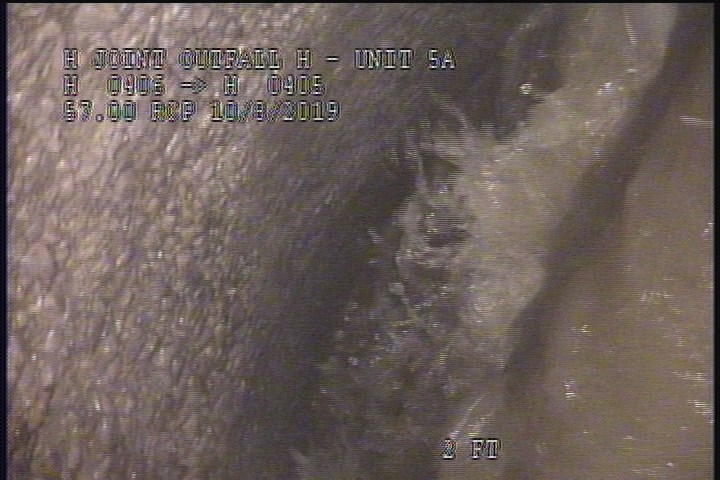

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

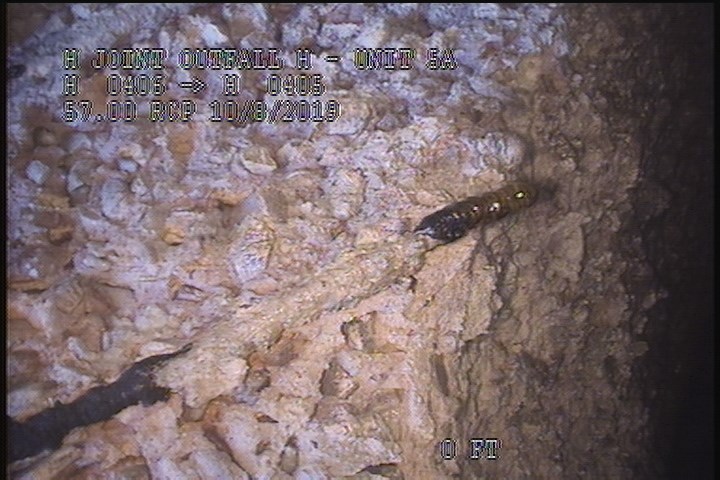

2 ft. - General Photograph - EXPOSED REINFORCEMENT

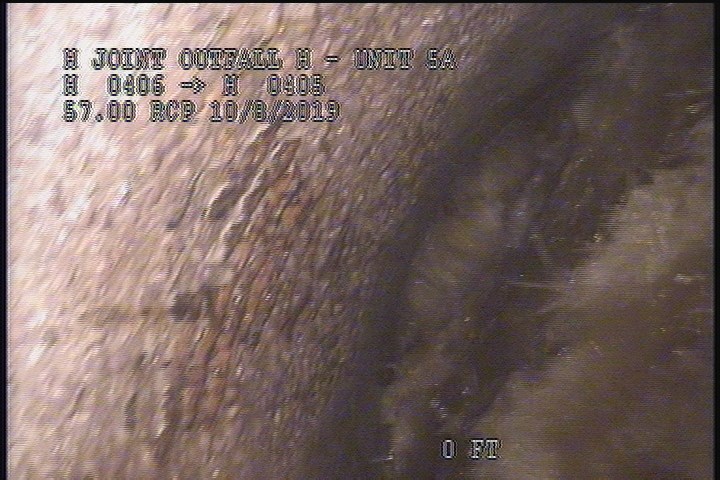

2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | MSA | VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON (NW) |
| 2 | SSS | — |
| 2 | SAP | — |
| 2 | LD | — |
| 0 | MWL | — |
| 2 | MGP | EXPOSED REINFORCEMENT |
| 0 | MWM | — |
| 0 | AMH | 10:40 AM |
| 2 | SRV | — |
Properties (7)
- additional_info
- LOOKING AT THE DOWNLEG PIPE OF THE U/S SIPHON (S/E)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-10-08T09:56:57-07:00
- documentation
- IGNACIO, FRANKLIN, BRAR, SHADLER
- is_lateral_inspection
- false
- year_laid
- 20051001
