Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 7, 2019, 08:07 PM

  • A 0575_H 0403_1072019_131933.mp4

Date
10/07/2019
W/O
0792740
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00177
PipeID
P10833
Time
1:07 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8096
Sewer Name
H JOINT OUTFALL H - UNIT 5A
City
CITY OF INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
20191007DF_JOINT_OUTFALL_H_UNIT_5A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Upstream MH
A 0575
Downstream MH
H 0403
Dir. of Survey
Downstream
Length Surveyed
15 ft.
Total Length
15 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole A 0575 to H 0403
MH: A 0575MH: H 0403downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:09 PM2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10.3 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish10.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish10.3 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG10.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish12 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)12 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach13.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active15 ft. AMH - Downstream Manhole, Survey Ends - 1:31 PM

Observation photos (4)

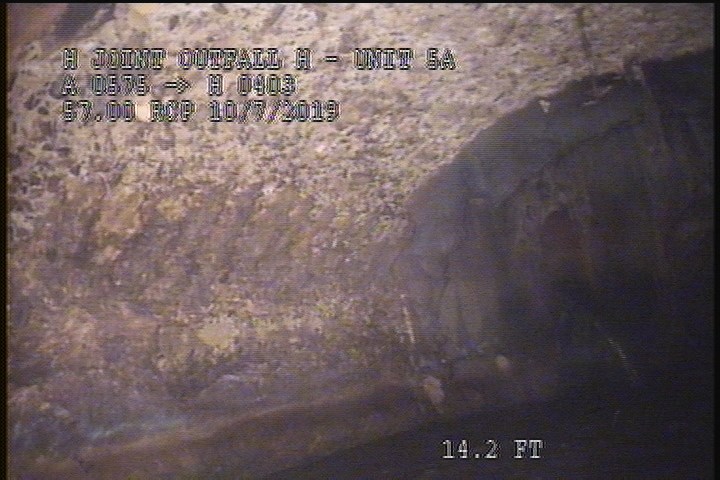

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

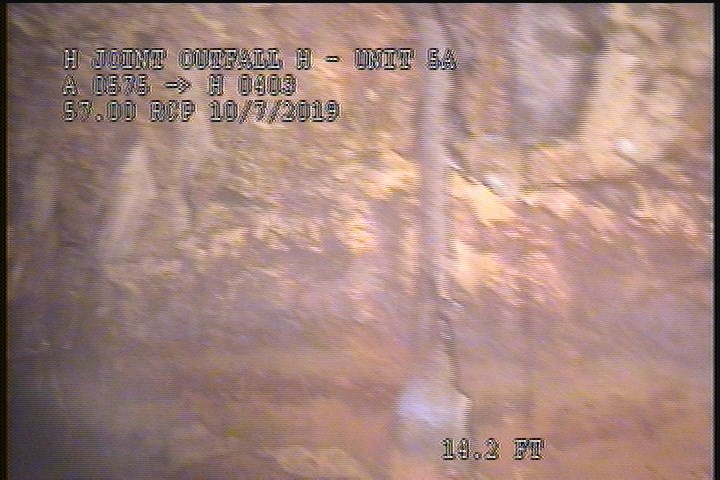

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

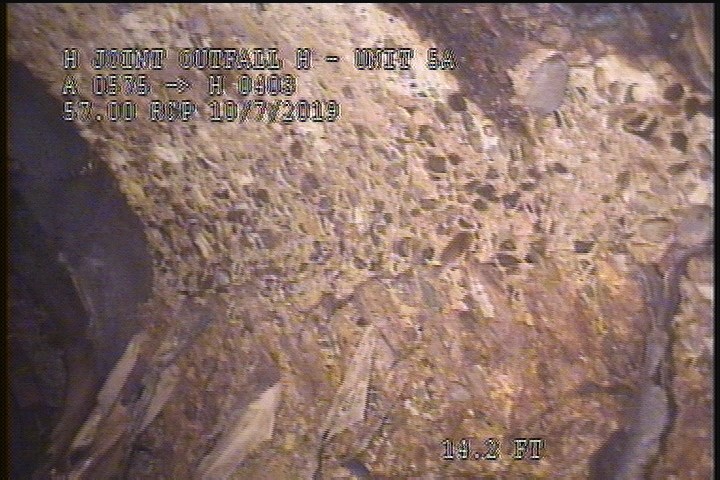

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P10833Work order 0792740

Observations (15)

DistanceCodeObservation
2SRV—
2SZ65% MAG
12MGOGREASE THROUGHOUT THE REACH (5%)
10.3SRV—
12MGOPeeling & Flaking Throughout The Reach
10.3SSS—
13.5MGOConn. @ Mh, 9 O' Clock. Active
15AMH1:31 PM
10.3SZ65% MAG
0MWM—
0MWL—
2SSS—
10.3SAP—
2SAP—
0AMH1:09 PM

Properties (7)

additional_info
THIS IS A 60" PIPE NOT 57"
custom_field_three
REINFORCEMENT VISIBLE/ AGGREGATE PROJECTING
custom_field_two
2
customer
LACSD
datetime
2019-10-07T13:07:22-07:00
documentation
FRANKLIN, IGNACIO, BRAR, SHADLER
is_lateral_inspection
false
