Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 9, 2019, 08:45 AM

  • Section#11_17 0005_17 0004__1092019__I0266R.mp4

Date
10/09/2019
W/O
0793144
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00668
PipeID
P13730
Time
1:45 AM
Certificate
1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0266R
Sewer Name
17 DISTRICT #17 MAIN TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 17
Page No.
07
Purpose
Maintenance Related
Project
20191003MDM_DISTRICT_17_MAIN_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
17 0005
Downstream MH
17 0004
Dir. of Survey
Downstream
Length Surveyed
450.2 ft.
Total Length
450.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4137
O&M Rating
45
Overall Index
2
Overall Quick
—
Overall Rating
45
Pipe schematic from manhole 17 0005 to 17 0004
MH: 17 0005MH: 17 0004downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM29.8 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 4%65.7 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%68.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN75.6 ft. RML - Roots Medium Lateral, from 02 to 04 o'clock, 5 %, within 8 inches of joint: YES75.6 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN 50% ROOTS75.6 ft. RFJ - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR - 3%106.4 ft. RFL - Roots Fine Lateral, from 02 to 03 o'clock - 3%106.4 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN 20% ROOTS125.7 ft. RFL - Roots Fine Lateral, from 09 to 10 o'clock - 2%125.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN125.7 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 2%139 ft. RFJ - Roots Fine Joint, from 01 to 04 o'clock, within 8 inches of joint: YESR - 45161.4 ft. RMB - Roots Medium Barrell, from 02 to 03 o'clock, 5 %, within 8 inches of joint: YES161.4 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN-20% ROOTS172.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN176 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 3%181.5 ft. RMJ - Roots Medium Joint, from 02 to 04 o'clock, 5 %, within 8 inches of joint: YESR186.6 ft. RMJ - Roots Medium Joint, from 07 to 05 o'clock, 15 %, within 8 inches of joint: YESR215.8 ft. RML - Roots Medium Lateral, from 01 to 05 o'clock, 35 %, within 8 inches of joint: YES215.8 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN-95% ROOTS281.7 ft. RMJ - Roots Medium Joint, from 12 to 04 o'clock, 10 %, within 8 inches of joint: YESR288.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN304.1 ft. RFL - Roots Fine Lateral, from 09 to 10 o'clock - 4%304.1 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN 90% ROOTS380.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN381.6 ft. RMJ - Roots Medium Joint, from 12 to 04 o'clock, 10 %, within 8 inches of joint: YESR440.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN441.3 ft. RFJ - Roots Fine Joint, from 12 to 04 o'clock, within 8 inches of joint: YESR - 2%445.3 ft. RMJ - Roots Medium Joint, from 07 to 05 o'clock, 20 %, within 8 inches of joint: YESR450.2 ft. AMH - Downstream Manhole, Survey Ends - 2:20AM

Observation photos (4)

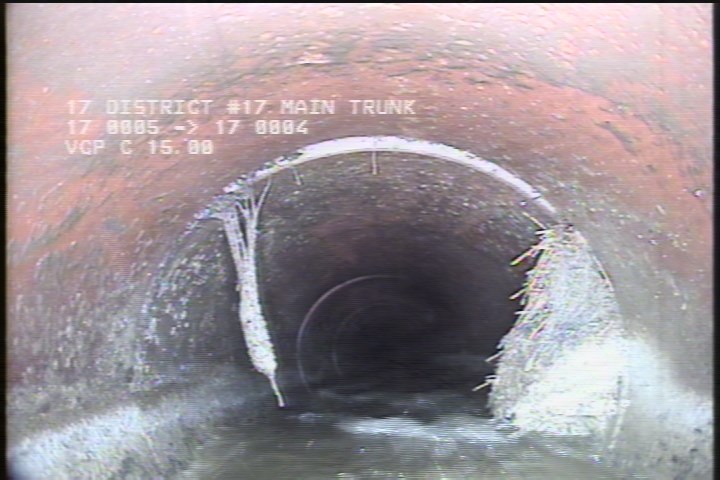

  • Roots Medium Joint, from 07 to 05 o'clock, 15 %, within 8 inches of joint: YESR

    186.6 ft. - Roots Medium Joint, from 07 to 05 o'clock, 15 %, within 8 inches of joint: YESR

  • Roots Medium Lateral, from 01 to 05 o'clock, 35 %, within 8 inches of joint: YES

    215.8 ft. - Roots Medium Lateral, from 01 to 05 o'clock, 35 %, within 8 inches of joint: YES

  • Roots Medium Joint, from 12 to 04 o'clock, 10 %, within 8 inches of joint: YESR

    281.7 ft. - Roots Medium Joint, from 12 to 04 o'clock, 10 %, within 8 inches of joint: YESR

  • Roots Medium Joint, from 07 to 05 o'clock, 20 %, within 8 inches of joint: YESR

    445.3 ft. - Roots Medium Joint, from 07 to 05 o'clock, 20 %, within 8 inches of joint: YESR

All inspections of P13730Work order 0793144

Observations (33)

DistanceCodeObservation
176RFJ3%
215.8RML—
281.7RMJ—
125.7RFL2%
139RFJ45
181.5RMJ—
380.4TFOPEN
288.3TFOPEN
215.8TFDOPEN-95% ROOTS
0MWM—
75.6RML—
125.7TFOPEN
440.1TFOPEN
75.6TFDOPEN 50% ROOTS
304.1RFL4%
304.1TFDOPEN 90% ROOTS
106.4RFL3%
381.6RMJ—
0MWL—
161.4RMB—
65.7RFJ4%
445.3RMJ—
172.4TFOPEN
161.4TFDOPEN-20% ROOTS
125.7RFJ2%
106.4TFDOPEN 20% ROOTS
450.2AMH2:20AM
75.6RFJ3%
29.8RFJ4%
186.6RMJ—
68.2TFOPEN
441.3RFJ2%
0AMH1:45AM

Properties (5)

additional_info
ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-10-09T01:45:36-07:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
