Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 3, 2019, 09:25 AM

  • Section#1_16 0085_16 0084__1032019__I0260R.mp4

Date
10/03/2019
W/O
0795227
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00639
PipeID
P13099
Time
2:25 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0260R
Sewer Name
16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Maintenance Related
Project
20191003MDM_ALLEN_AVENUE_TRUNK_SECTS_1_2_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
16 0084
Downstream MH
16 0085
Dir. of Survey
Upstream
Length Surveyed
424.2 ft.
Total Length
424.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3619
O&M Rating
27
Overall Index
2
Overall Quick
—
Overall Rating
27
Pipe schematic from manhole 16 0084 to 16 0085
MH: 16 0084MH: 16 0085upstream0 ft. AMH - Upstream Manhole, Survey Ends - 3:00AM153.5 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 3%164.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 1%177.1 ft. RMJ - Roots Medium Joint, from 10 to 02 o'clock, 5 %, within 8 inches of joint: YESR181.5 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%185.8 ft. RMJ - Roots Medium Joint, from 10 to 02 o'clock, 5 %, within 8 inches of joint: YESR193.2 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 5 %, within 8 inches of joint: YESR200.7 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR - 3%206.5 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 3%214.3 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 3%217.2 ft. RMJ - Roots Medium Joint, from 11 to 01 o'clock, 5 %, within 8 inches of joint: YESR219.2 ft. RMJ - Roots Medium Joint, from 11 to 01 o'clock, 5 %, within 8 inches of joint: YESR222.9 ft. RMJ - Roots Medium Joint, from 10 to 02 o'clock, 15 %, within 8 inches of joint: YESR236.7 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 1%244.8 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 3%259.9 ft. RFJ - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YESR - 1%423.2 ft. MGO - General Observation - MH#83424.2 ft. MWL - Water Level, 10 %of cross sectional area424.2 ft. MWM - Water Mark, 20 %of cross sectional area424.2 ft. AMH - Upstream Manhole, Survey Begins - 2:25AM

Observation photos (4)

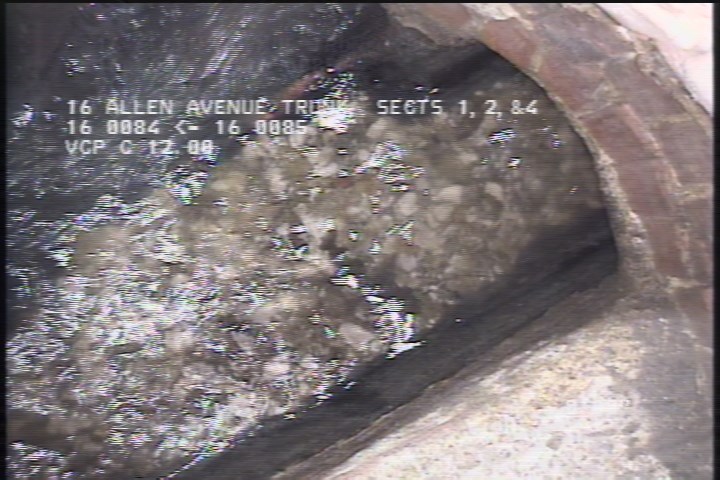

  • General Observation - MH#83

    1 ft. - General Observation - MH#83

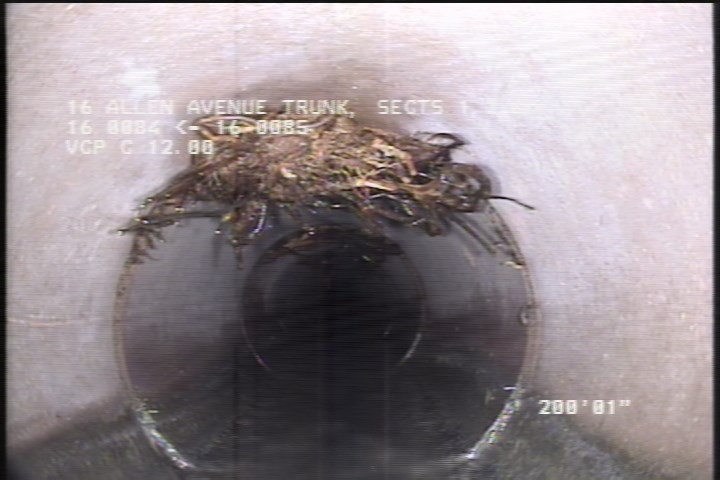

  • Roots Medium Joint, from 10 to 02 o'clock, 15 %, within 8 inches of joint: YESR

    201.3 ft. - Roots Medium Joint, from 10 to 02 o'clock, 15 %, within 8 inches of joint: YESR

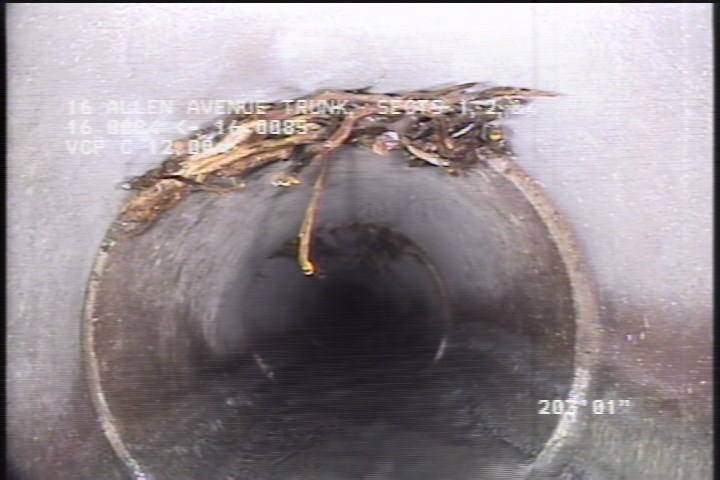

  • Roots Medium Joint, from 11 to 01 o'clock, 5 %, within 8 inches of joint: YESR

    205 ft. - Roots Medium Joint, from 11 to 01 o'clock, 5 %, within 8 inches of joint: YESR

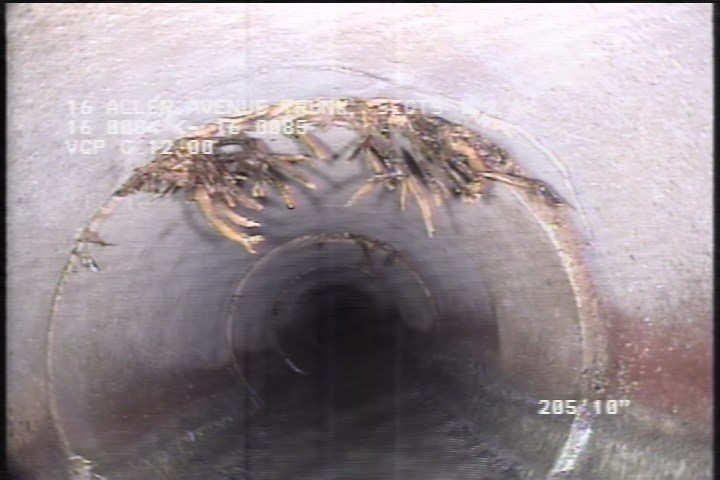

  • Roots Medium Joint, from 11 to 01 o'clock, 5 %, within 8 inches of joint: YESR

    207 ft. - Roots Medium Joint, from 11 to 01 o'clock, 5 %, within 8 inches of joint: YESR

All inspections of P13099Work order 0795227

Observations (20)

DistanceCodeObservation
201.3RMJ—
0MWL—
0MWM—
207RMJ—
1MGOMH#83
0AMH2:25AM
179.4RFJ3%
209.9RFJ3%
270.7RFJ3%
205RMJ—
164.3RFJ1%
187.5RFJ1%
259.3RFJ1%
242.7RFJ4%
247.1RMJ—
231RMJ—
424.2AMH3:00AM
217.7RFJ3%
238.4RMJ—
223.5RFJ3%

Properties (5)

additional_info
PRE ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-10-03T02:25:00-07:00
documentation
MARTIN,REVELES,OLIVER 111
is_lateral_inspection
false
