Wastewater/Activity/PacpInspection/1.0Jan 3, 2018, 09:51 AM
21 1069_21 1068 _03012018_015215.mp4
- Date
- 01/03/2018
- W/O
- 679327
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00769
- PipeID
- P16194
- Time
- 1:51 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5301
- Sewer Name
- 21 GAREY AVENUE TRUNK
- City
- POMONA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_679327_TV21012_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 21 1069
- Downstream MH
- 21 1068
- Dir. of Survey
- Downstream
- Length Surveyed
- 163.4 ft.
- Total Length
- 163.4 ft.
- Structural Index
- 3
- Structural Quick
- 3321
- Structural Rating
- 11
- O&M Index
- 1
- O&M Quick
- 1300
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

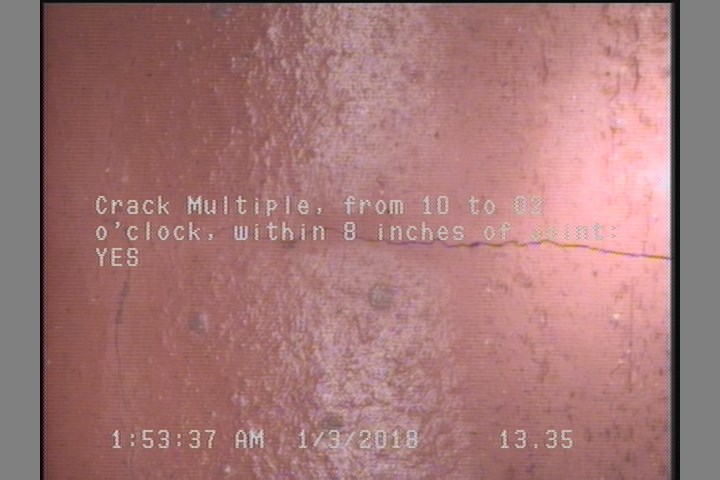

13.4 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

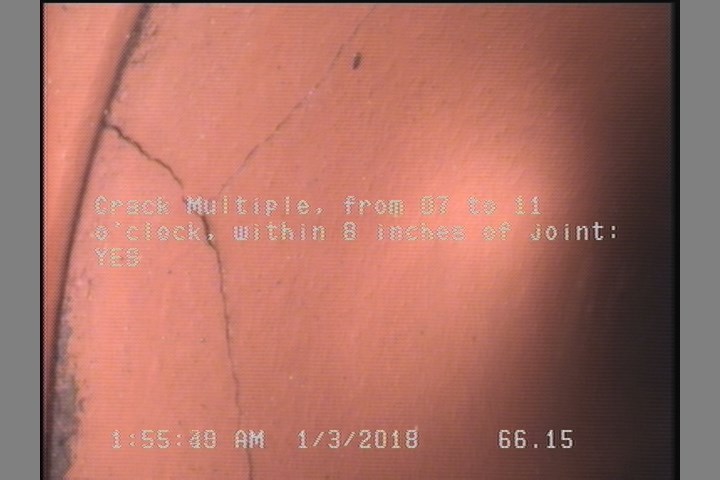

66.2 ft. - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

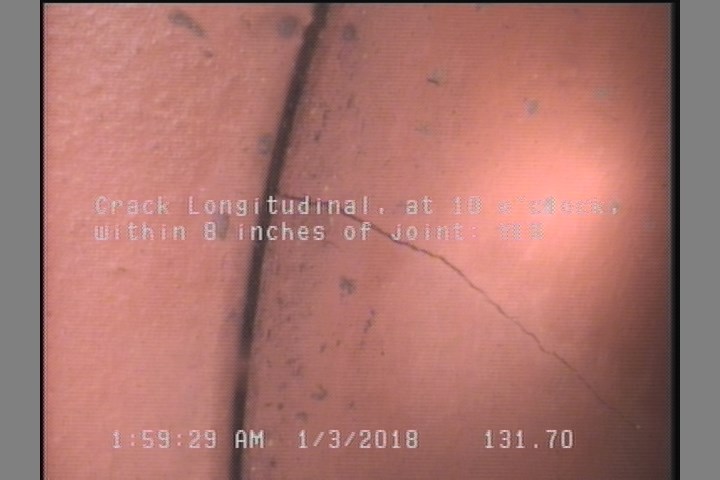

131.7 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

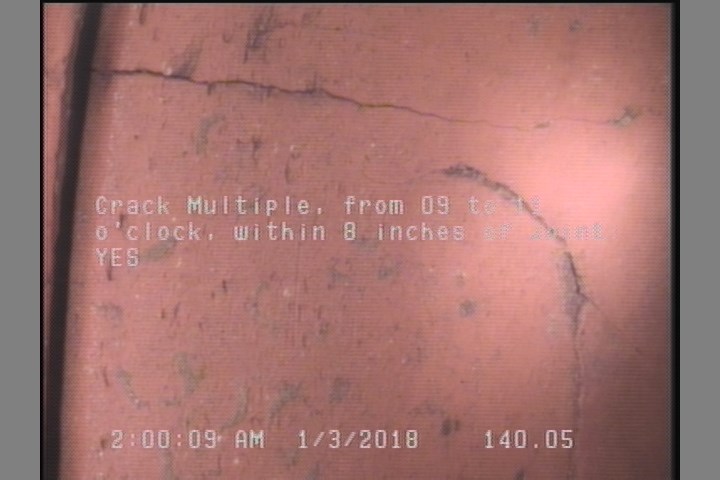

140.1 ft. - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 13.4 | CM | — |
| 0 | AMH | 21 1069 |
| 141.4 | RFL | — |
| 163.4 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 163.4 | AMH | 21 1068 |
| 117.1 | TF | — |
| 117.1 | RFL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 31.5 | TF | — |
| 0 | MWM | — |
| 66.2 | CM | — |
| 131.7 | CL | — |
| 0 | MWL | — |
| 140.1 | CM | — |
| 131.1 | RFJ | — |
| 141.4 | TF | — |
Properties (6)
- additional_info
- SC346775
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-03T01:51:46-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
